ITW Buildex 5035902 Description

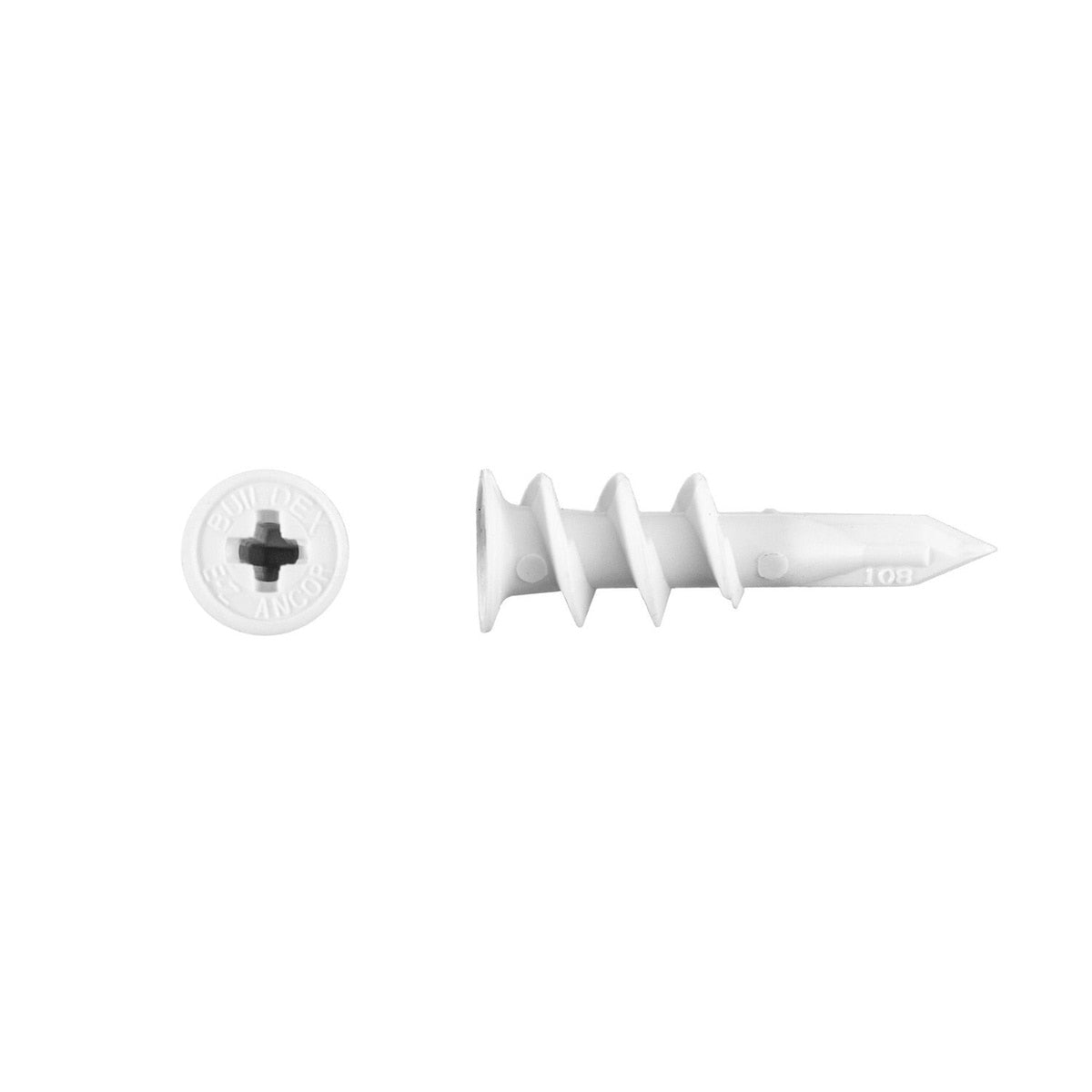

The ITW Buildex 5035902 is a white nylon self-drilling wall anchor designed for use in drywall. Its 1-5/8 in. length and flush flange style help provide secure installation for compatible #6, #7, and #8 screws in hollow wall applications.
ITW Buildex 5035902 Includes
- (1) Self-Drilling Wall Anchors
ITW Buildex 5035902 Features
- Self-drilling wall anchor for drywall applications
- Made from durable nylon
- White finish for a clean appearance
- 1-5/8 in. anchor length
- Compatible with #6, #7, and #8 screws
- Flush flange style
- No screw included
- Provides up to 50 lb tension strength in 1/2 in. drywall
- Provides up to 141 lb shear strength in 1/2 in. drywall
ITW Buildex 5035902 Specifications
| Item | Wall Anchor |
| Wall Anchor Type | Self-Drilling Anchor |
| Compatible Material | Drywall |
| Material | Nylon |
| Color | White |
| Finish | Plain |
| Anchor Length | 1 5/8 in |
| Anchor Diameter | 1/2 in |
| Thread Size | 1/2 in-4 |
| Thread Length | 1 in |
| Head Type | Flat |
| Drive Type | Phillips |
| Flange Style | Flush |
| Minimum Material Thickness | 3/8 in |
| Maximum Material Thickness | 3/4 in |
| Compatible Screw Size | #6, #7, #8 |
| Compatible Screw Length | 1 1/2 in |
| Includes Screw | No |
| Tension Strength (1/2 in Drywall) | 50 lb |
| Maximum Ultimate Tension Strength | 75 lb |
| Shear Strength (1/2 in Drywall) | 141 lb |
| Maximum Ultimate Shear Strength | 141 lb |
| Country of Origin | United States |
