Description
Description
INCLUDES:
• (25) Box anchors
FEATURES:
• One step installation process - No predrilling required, Reduces installation time and cost
• 97 degree attachment angle - Attaches to the side of wood elements, Provides more attachment locations for designers and specifiers
• Installs with SAMMYS Nut Driver - Ensures correct installation torque, Reduces occurrences of fastener failure due to over driving
SPECIFICATIONS:
• Product Name: Sammys X-Press® Swivel
• Rod Size: 3/8"-16
• Substrate: Metal Deck, Purlin or Tubular Steel
• Mount Style: Swivel
• Substrate Fastener: Size 3/8" x 1"
• Ultimate Pullout: 1558 lb (89° Off Vertical)
• Ultimate Pullout: 1558 lb (89° Off Vertical) , 1675 lb (16 ga. Vertical)
• Type: Rod Anchor
• Product Family: Sammys X-Press® Swivel Purlin 3/8 Rod
• Anchor Diameter: 25/64 "
• Hole Size: 25/64 "
• Material: Steel
• Finish: Electro-Zinc
• Head: 5/8" AF End-Drilled
• Drive: Sammys X-Press IT® Installation Tool (8194910)
• Grade: C1022 screw, C1010 cap
• UL Maximum Pipe Size: 3-1/2"
• UL Test Load: 1250 lb (3-1/2" Pipe), 250 lb Vertical (Luminaire), 80 lb at 90° lb (Luminaire), 500 lb Vertical (Conduit & Cable), 333 lb at 89°(Conduit & Cable)
• FM Max Pipe Size: 2"

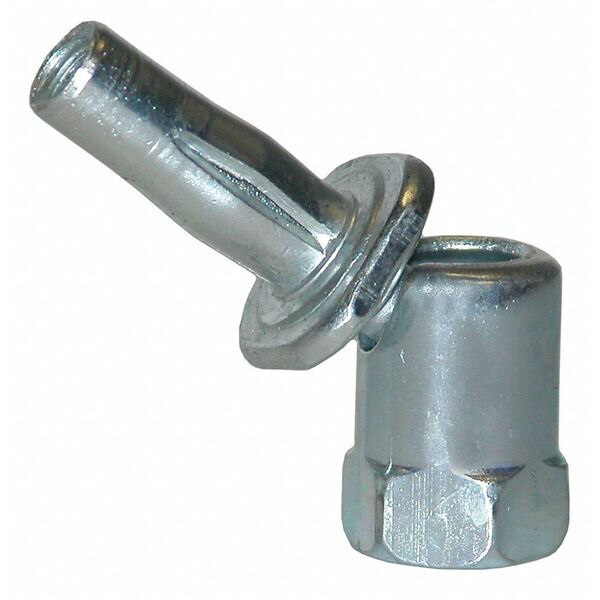

ITW Commercial Construction Part Number 8295922, Sammys® 3/8" Swivel Threaded Rod Anchor - SXP 35
• (25) Box anchors
FEATURES:
• One step installation process - No predrilling required, Reduces installation time and cost
• 97 degree attachment angle - Attaches to the side of wood elements, Provides more attachment locations for designers and specifiers
• Installs with SAMMYS Nut Driver - Ensures correct installation torque, Reduces occurrences of fastener failure due to over driving
SPECIFICATIONS:
• Product Name: Sammys X-Press® Swivel
• Rod Size: 3/8"-16
• Substrate: Metal Deck, Purlin or Tubular Steel
• Mount Style: Swivel
• Substrate Fastener: Size 3/8" x 1"
• Ultimate Pullout: 1558 lb (89° Off Vertical)
• Ultimate Pullout: 1558 lb (89° Off Vertical) , 1675 lb (16 ga. Vertical)
• Type: Rod Anchor
• Product Family: Sammys X-Press® Swivel Purlin 3/8 Rod
• Anchor Diameter: 25/64 "
• Hole Size: 25/64 "
• Material: Steel
• Finish: Electro-Zinc
• Head: 5/8" AF End-Drilled
• Drive: Sammys X-Press IT® Installation Tool (8194910)
• Grade: C1022 screw, C1010 cap
• UL Maximum Pipe Size: 3-1/2"
• UL Test Load: 1250 lb (3-1/2" Pipe), 250 lb Vertical (Luminaire), 80 lb at 90° lb (Luminaire), 500 lb Vertical (Conduit & Cable), 333 lb at 89°(Conduit & Cable)
• FM Max Pipe Size: 2"
ITW Commercial Construction Part Number 8295922, Sammys® 3/8" Swivel Threaded Rod Anchor - SXP 35
Toolup Part # :
247036
