Jet  |  SKU: JT9-892000  |  Barcode: 731325265620

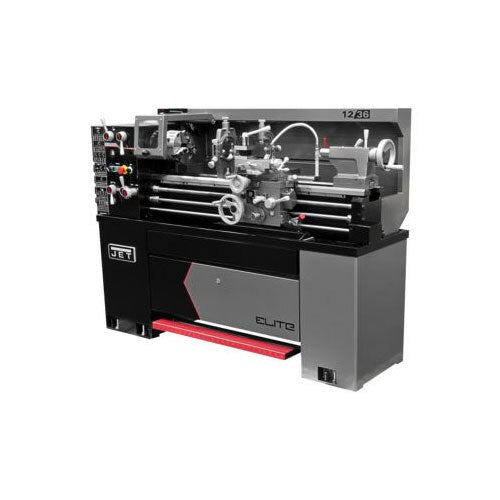

Jet Elite JT9-892000 E-1236VS, Elite 12x36 EVS Lathe

Free Shipping
$15,899.00 $19,522.86

Description

Jet 892000 Description

EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Jet 892000 Includes

  • (1) E-1236VS, Elite 12x36 EVS Lathe

Jet 892000 Features

  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds
  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • 1-9/16" Spindle Bore
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

Jet 892000 Specifications

Size 12 x 36
Swing Over Bed 12"
Swing Over Cross Slide 7-5/16"
Swing Through Gap 17-1/2"
Length of Gap 9-1/2"
Distance Between Centers 36"
Spindle Bore 1-9/16"
Spindle Mount D1-4
Spindle Taper with Sleeve MT5
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 0 - 2,000
Number of Longitudinal and Cross Feed Rates 50
Range of Longitudinal Feeds (IPR) 0.0016 - 0.046
Range of Cross Feeds (IPR) 0.0005 - 0.015
Number of Inch Threads 34
Range of Inch Threads (TPI) 2 - 56
Number of Metric Threads 34
Range of Metric Threads 0.5 - 12
Max Tool Size 1/2" x 1/2"
Compound Slide Travel 3-1/2"
