Jet  |  SKU: JT9-892301  |  Barcode: 731325282184

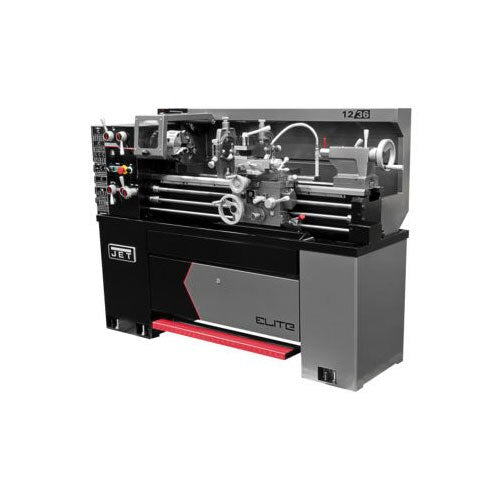

Jet Elite JT9-892301 E-1236VS with Collet Closer

Free Shipping
$18,439.00 $22,752.86

Description

Jet 892301 Description

EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Jet 892301 Includes

  • (1) E-1236VS with Collet Closer

Jet 892301 Features

  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds
  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • 1-9/16" Spindle Bore
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

Jet 892301 Specifications

SAP Gross Weight 1477 lbs
SAP Net Weight 1213 lbs
Motor (HP) 2 HP, 230V, 1 or 3 Ph
Accessory 2 Collet Closer
Weight 1212 lbs
Follow Rest Capacity 1/4" - 1-1/8"
Swing Through Gap 17-1/2"
Overall Dimensions (L x W x H) 71" x 30" x 60"
Range of Cross Feeds (IPR) 0.0005 - 0.015
Steady Rest Capacity 1/4" - 2-1/2"
Spindle Bore 1-9/16"
Drive EVS
Range of Inch Threads (TPI) 2 - 56
Range of Spindle Speeds (RPM) 0 - 2,000
Spindle Taper with Sleeve MT-5
Number of Longitudinal and Cross Feed Rates 50
Size 12 x 36
Number of Metric Threads 33
Range of Metric Threads 0.5 - 12
Swing Over Bed 12"

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Jet Elite JT9-892301 E-1236VS with Collet Closer
Jet

Jet Elite JT9-892301 E-1236VS with Collet Closer

$18,439.00 $22,752.86

Jet 892301 Description

EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Jet 892301 Includes

  • (1) E-1236VS with Collet Closer

Jet 892301 Features

  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds
  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • 1-9/16" Spindle Bore
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

Jet 892301 Specifications

SAP Gross Weight 1477 lbs
SAP Net Weight 1213 lbs
Motor (HP) 2 HP, 230V, 1 or 3 Ph
Accessory 2 Collet Closer
Weight 1212 lbs
Follow Rest Capacity 1/4" - 1-1/8"
Swing Through Gap 17-1/2"
Overall Dimensions (L x W x H) 71" x 30" x 60"
Range of Cross Feeds (IPR) 0.0005 - 0.015
Steady Rest Capacity 1/4" - 2-1/2"
Spindle Bore 1-9/16"
Drive EVS
Range of Inch Threads (TPI) 2 - 56
Range of Spindle Speeds (RPM) 0 - 2,000
Spindle Taper with Sleeve MT-5
Number of Longitudinal and Cross Feed Rates 50
Size 12 x 36
Number of Metric Threads 33
Range of Metric Threads 0.5 - 12
Swing Over Bed 12"
