Jet | SKU:
JT9-892414

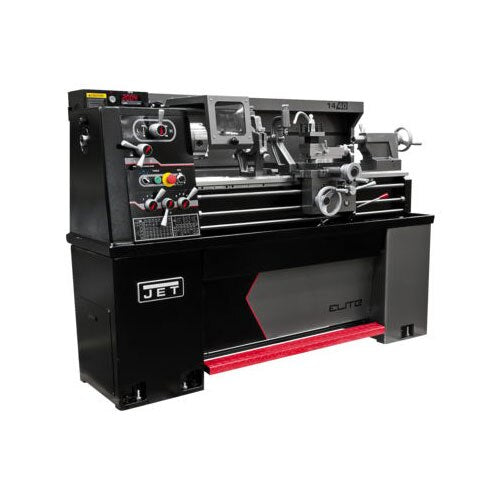

Jet Elite JT9-892414 E-1340VS w ACU-RITE 303 DRO, Taper and Collet Closer
Free Shipping
$27,549.18
$34,212.26
Unit price
/
Unavailable
Description
Description
Jet 892414 Description
EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!
Jet 892414 Includes
- (1) E-1340VS w ACU-RITE 303 DRO, Taper and Collet Closer
Jet 892414 Features
- Electromagnetic assisted foot brake for rapid braking
- Inverter drive system provides infinitely variable spindle speeds
- Steady and follow rest feature double sealed ball bearing guides for smooth material movements
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- 1-1/2" Spindle Bore
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Hardened and ground gears in headstock reduce vibration and deflection
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
- Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
Jet 892414 Specifications
| SAP Gross Weight | 1697 lbs |
| SAP Net Weight | 1433 lbs |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Accessory 2 | Collet Closer |
| Weight | 1433 lbs |
| Follow Rest Capacity | 1/4" - 2-3/8" |
| Swing Through Gap | 19" |
| Overall Dimensions (L x W x H) | 67" x 30" x 57" |
| Range of Cross Feeds (IPR) | 0.0003 - 0.01 |
| Steady Rest Capacity | 1/4" - 2-3/4" |
| Spindle Bore | 1-1/2" |
| Drive | EVS |
| Range of Inch Threads (TPI) | 4 - 112 |
| Digital Readout | ACU-RITE 303 |
| Range of Spindle Speeds (RPM) | 0 - 2,200 |
| Spindle Taper with Sleeve | MT-5 |
| Number of Longitudinal and Cross Feed Rates | 80 |
| Size | 13 x 40 |
| Number of Metric Threads | 22 |
| Accessory 1 | Taper Attachment |
