Jet  |  SKU: JT9-892418  |  Barcode: 731325282627

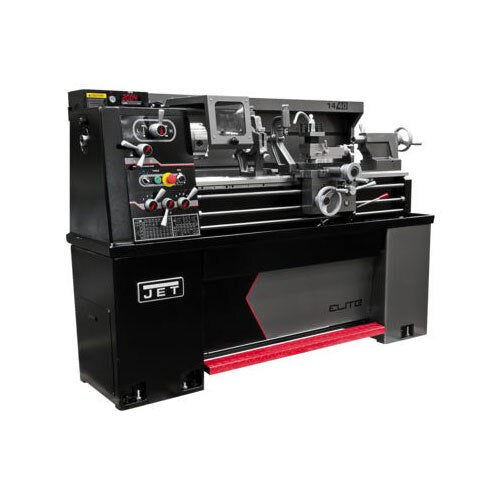

Jet Elite JT9-892418 E-1340VS w ACU-RITE 303 CSS DRO, Taper and Collet Closer

Free Shipping
$28,130.58 $34,871.79

Description

Jet 892418 Description

EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Jet 892418 Includes

  • (1) E-1340VS w ACU-RITE 303 CSS DRO, Taper and Collet Closer

Jet 892418 Features

  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds
  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • 1-1/2" Spindle Bore
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

Jet 892418 Specifications

SAP Gross Weight 1697 lbs
SAP Net Weight 1433 lbs
Motor (HP) 3 HP, 230V, 3 Ph
Accessory 2 Collet Closer
Weight 1433 lbs
Follow Rest Capacity 1/4" - 2-3/8"
Swing Through Gap 19"
Overall Dimensions (L x W x H) 67" x 30" x 57"
Range of Cross Feeds (IPR) 0.0003 - 0.01
Steady Rest Capacity 1/4" - 2-3/4"
Spindle Bore 1-1/2"
Drive EVS
Range of Inch Threads (TPI) 4 - 112
Digital Readout ACU-RITE 303 with CSS
Range of Spindle Speeds (RPM) 0 - 2,200
Spindle Taper with Sleeve MT-5
Number of Longitudinal and Cross Feed Rates 80
Size 13 x 40
Number of Metric Threads 22
Accessory 1 Taper Attachment
