Jet  |  SKU: JT9-892504  |  Barcode: 731325283020

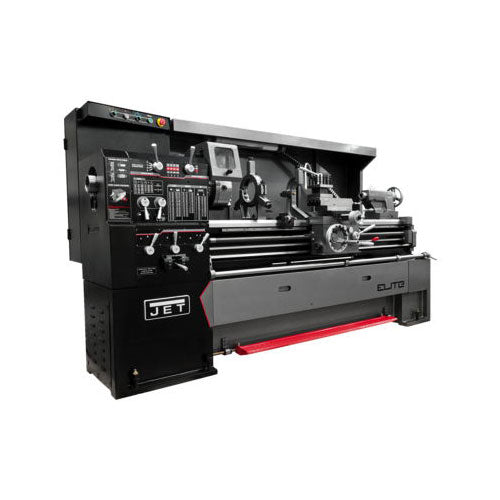

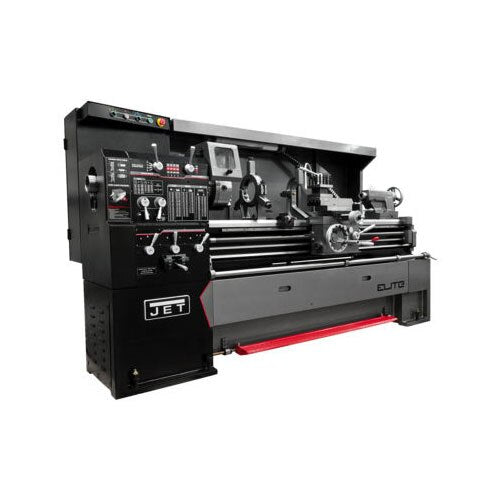

Jet Elite JT9-892504 EGH-1740 with ACU-RITE 203 DRO with Taper Attachment

Free Shipping
$45,759.00 $53,924.29

Description

Jet 892504 Description

Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

Jet 892504 Includes

  • (1) EGH-1740 with ACU-RITE 203 DRO with Taper Attachment

Jet 892504 Features

  • 3-1/8" Spindle Bore
  • Nylon safety gears in the end train prevent overloading, increasing safety
  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
  • Enclosed coolant system contains excess coolant for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • Steady rests feature ball bearing guides for smooth material movements
  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Wider bedways absorb vibration

Jet 892504 Specifications

Size 17 x 40
Acessory 1 Taper Attachment
Digital Readout ACU-RITE 203
Swing Over Bed 17"
Swing Over Cross Slide 11"
Swing Through Gap 24-1/2"
Length of Gap 7-2/3"
Distance Between Centers 40"
Spindle Bore 3-1/8"
Spindle Mount D1-6
Spindle Taper with Sleeve MT-5
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 36 - 1,800
Range of Longitudinal Feeds (IPR) 0.0015 - 0.04
Range of Cross Feeds (IPR) 0.00075 - 0.02
Number of Inch Threads 45
Range of Inch Threads (TPI) 2 - 72
Number of Metric Threads 39
Range of Metric Threads 0.2 - 14
Diametrial Pitch Threads Number 21
