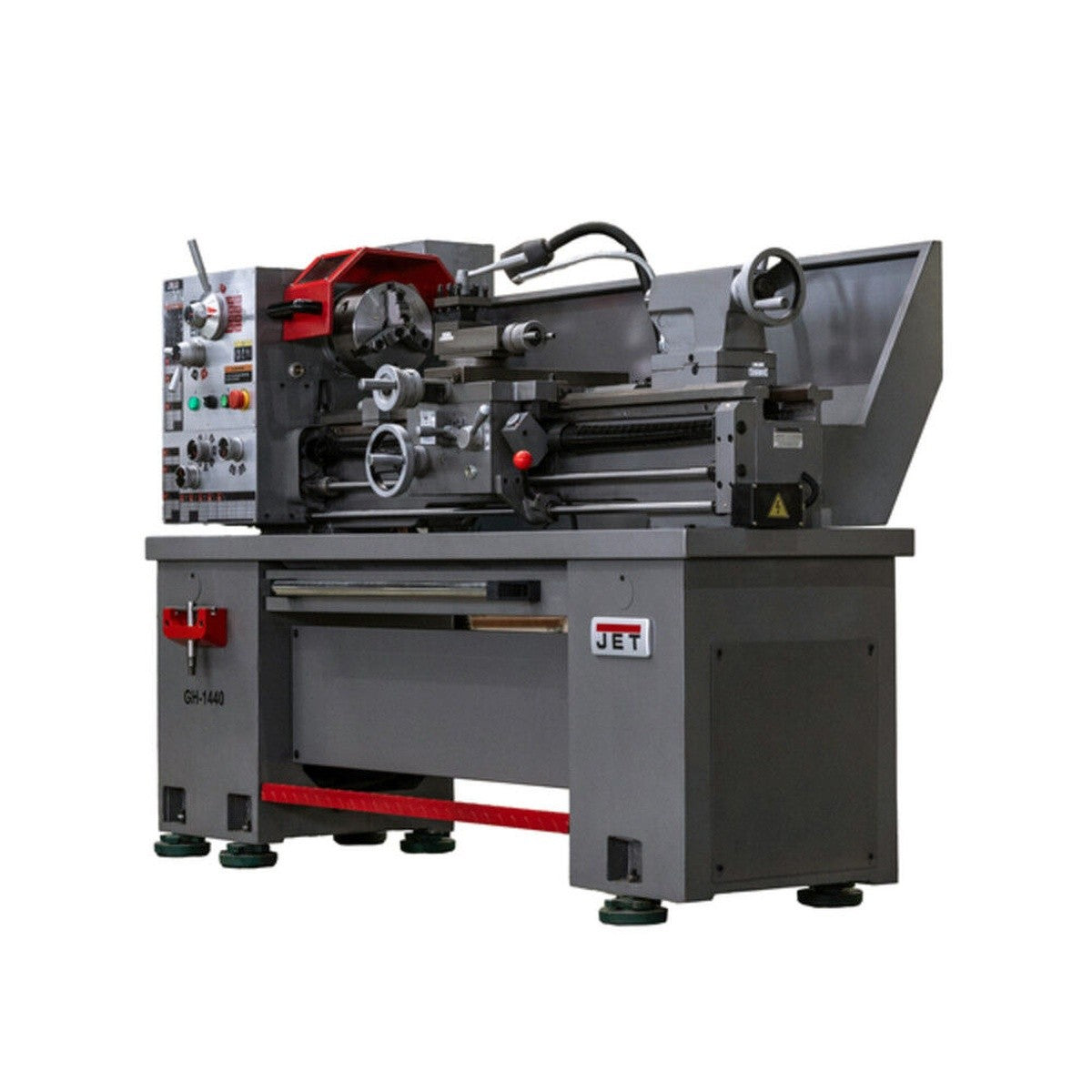

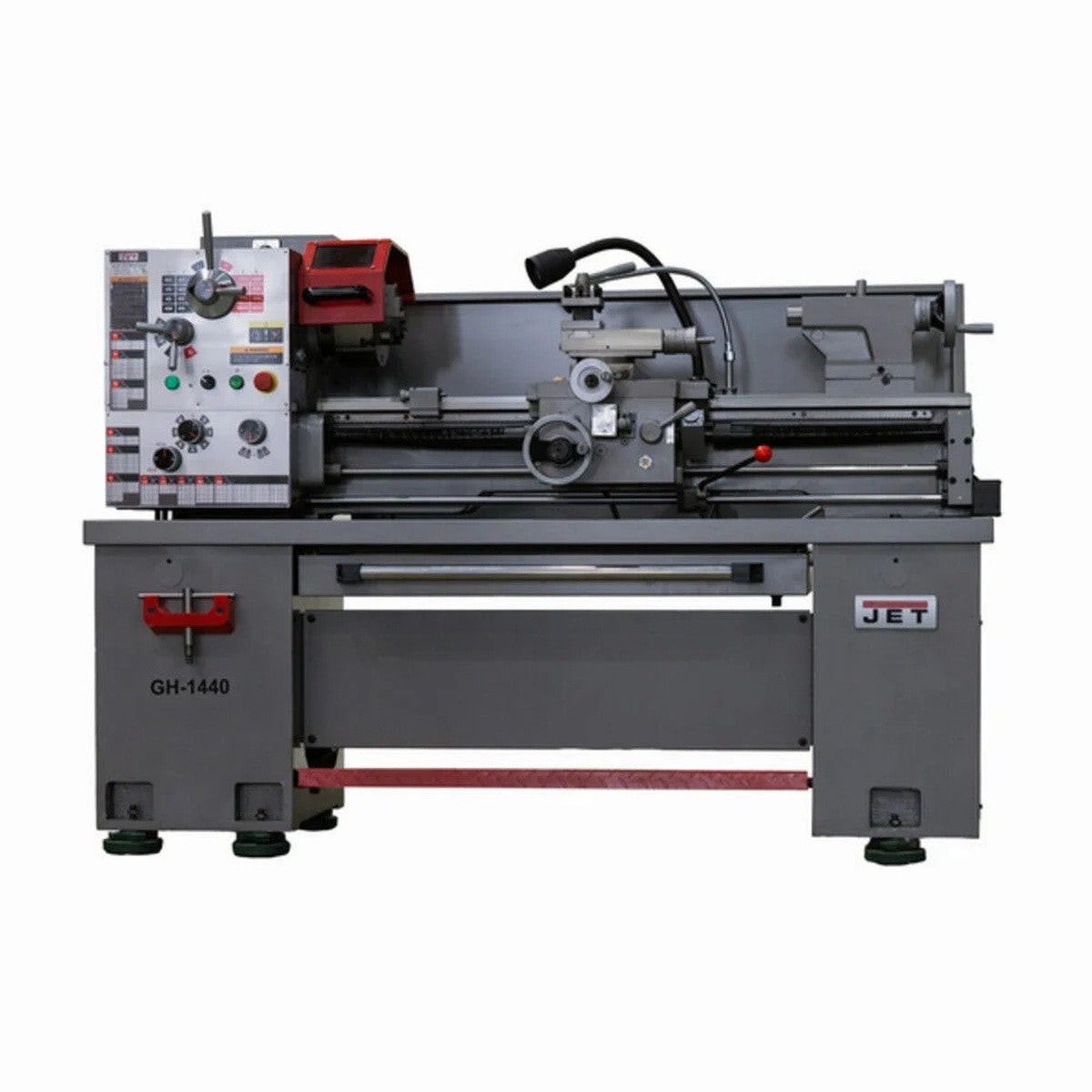

JET GH-1440-3 Description
The new JET GH-1440-3 Geared Head Engine Lathe comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The segment-leading 2" spindle bore, enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked. With standard UL 987 certification, this is the ideal everyday use lathe to outfit a workshop or repair center backed by the industry leading JET 2 Year Warranty.
JET GH-1440-3 Includes
- (1) 8" 3-Jaw Chuck (mounted on lathe)
- (1) 8" 4-Jaw Chuck
- (1) Acu-Rite 203 DRO
JET GH-1440-3 Features
- 8" 3-Jaw chuck mounted on lathe and 8" 4-Jaw chuck included in the package
- Front removable chip tray for easy cleanup
- Full length splash guard with standard halogen work light
- JET Electronic Chuck Key Holder and standard chuck guard ensure operator safety while in use
- Integrated coolant system
- Fitted top mats to hold tooling
- Removable gap allows large diameter work

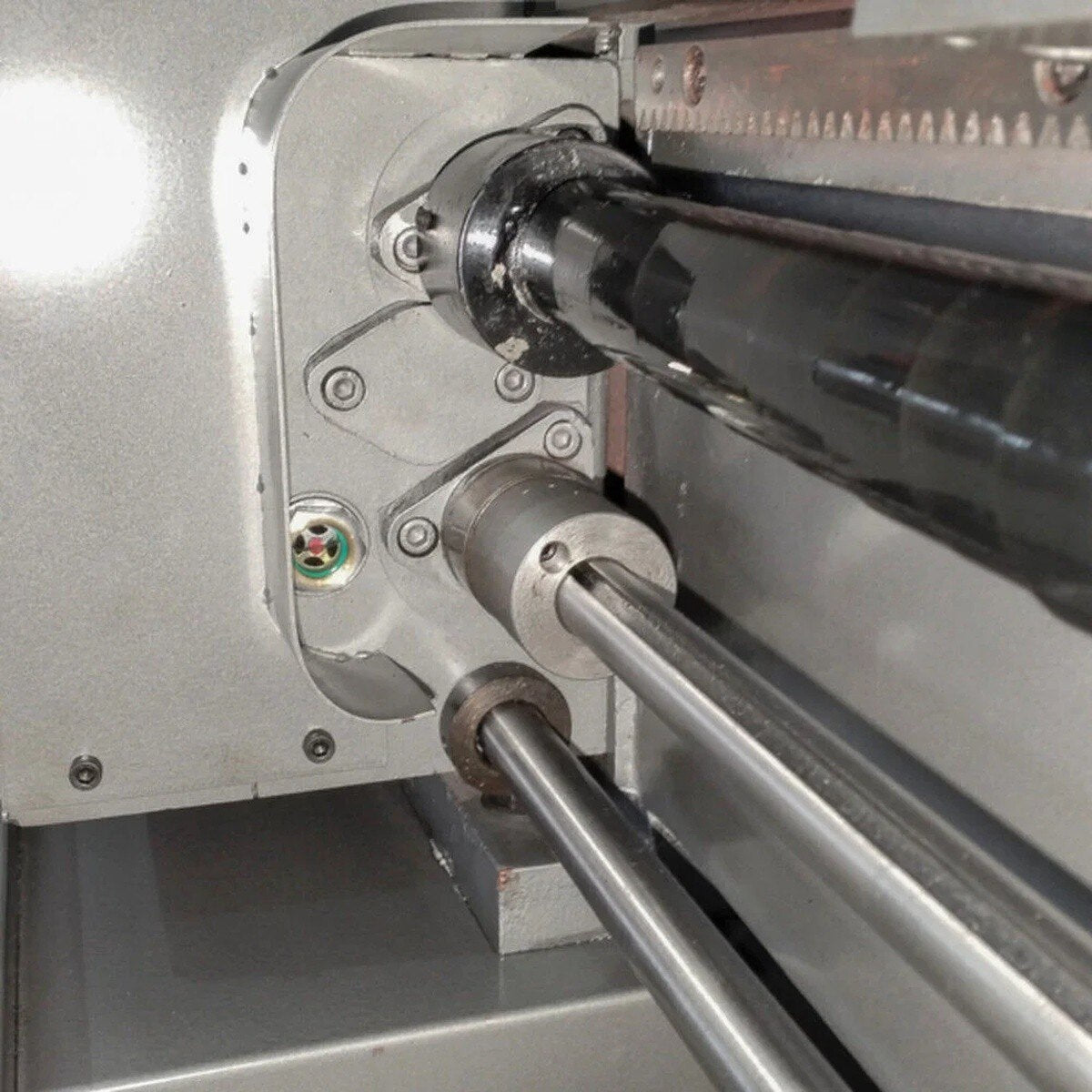

- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- UL 987 Certified
JET GH-1440-3 Specifications
| Model Number | GH-1440-3 |
| Size | 14x40 |
| Motor HP | 2 HP |
| Motor Phase | Three |
| Motor Voltage | 230/460V |
| Drive Type | Geared Head |
| Swing Over Bed | 14" |
| Swing Over Cross Slide | 8.7" |
| Swing Through Gap | 20.3" |
| Distance Between Centers | 40" |
| Spindle Bore | 2" |
| Spindle Mount | D1-5 |
| Spindle Taper | MT-6 |
| Spindle Taper With Sleeve | MT-4 |
| Number of Spindle Speeds | 16 |
| Range of Speeds | 45-1800 RPM |
| Center Height | 6.5" |
| Bed Height | 11.41" |
| Width of Bed | 8.1" |
| Length of Gap | 7.5" |
| Cross Slide Travel | 6.7" |
| Compound Slide Travel | 6.45" |
| Maximum Tool Size | 5/8" |
| Number of Longitudinal and Cross Feed Rates | 40/40 |
| Range of Longitudinal Feeds | 0.0016" - 0.0257" |
| Range of Cross Feeds | 0.0005" - 0.0086" |
| Number of Inch Threads | 32 |
| Range of Inch Threads (TPI) | 4-56 |
| Number of Metric Threads | 32 |
| Range of Metric Threads | 0.4 - 7mm |
| Modular Pitch Threads Range | 0.2-3.5 |
| Digital Readout (DRO) | Yes (Acu-Rite 203) |
| 30 Point Inspection | Yes |
| Assembled Dimensions (L x W x H) | 75.6" x 29.1" x 47" |
| Net Weight | 1638 lbs |
| Warranty | 2 Year |
