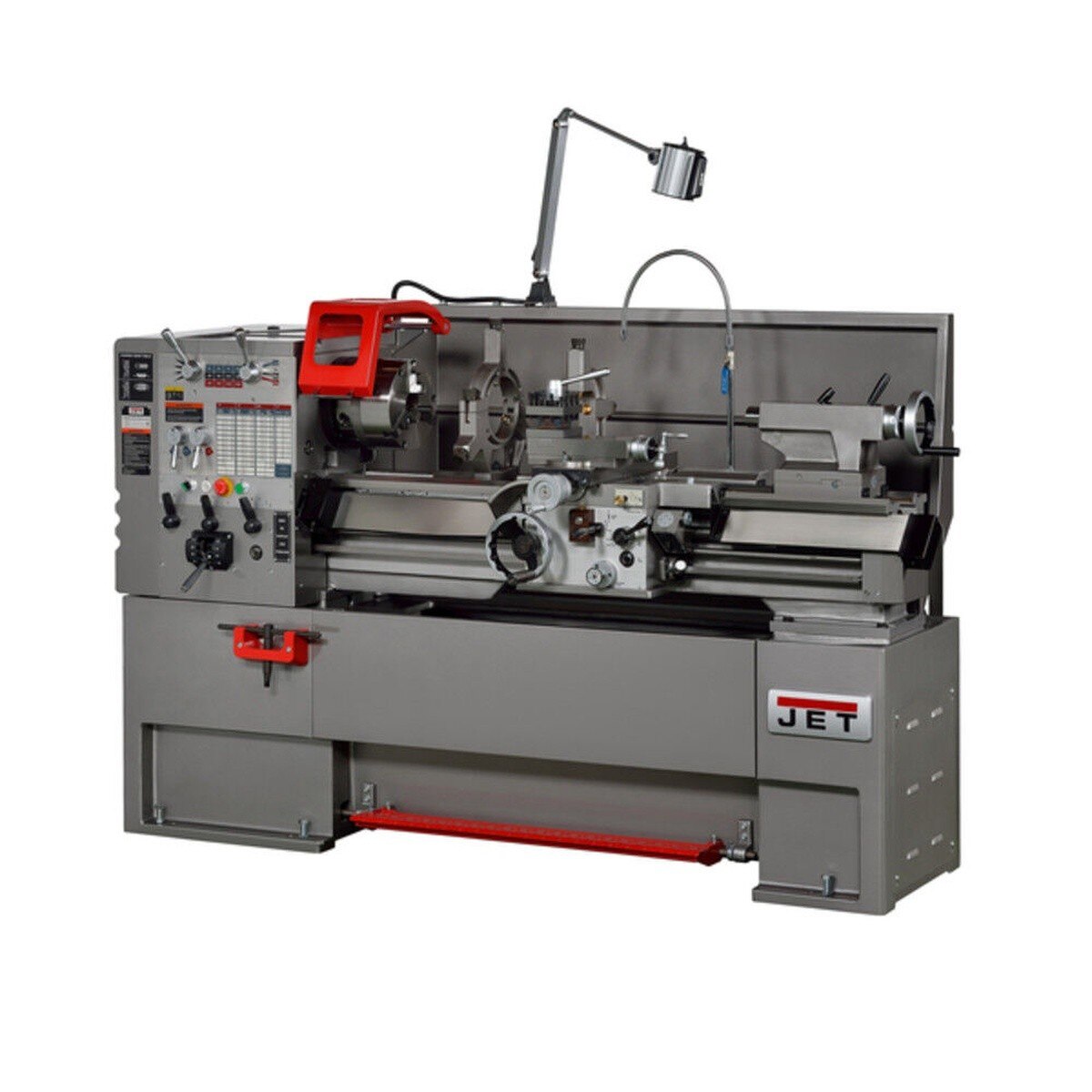

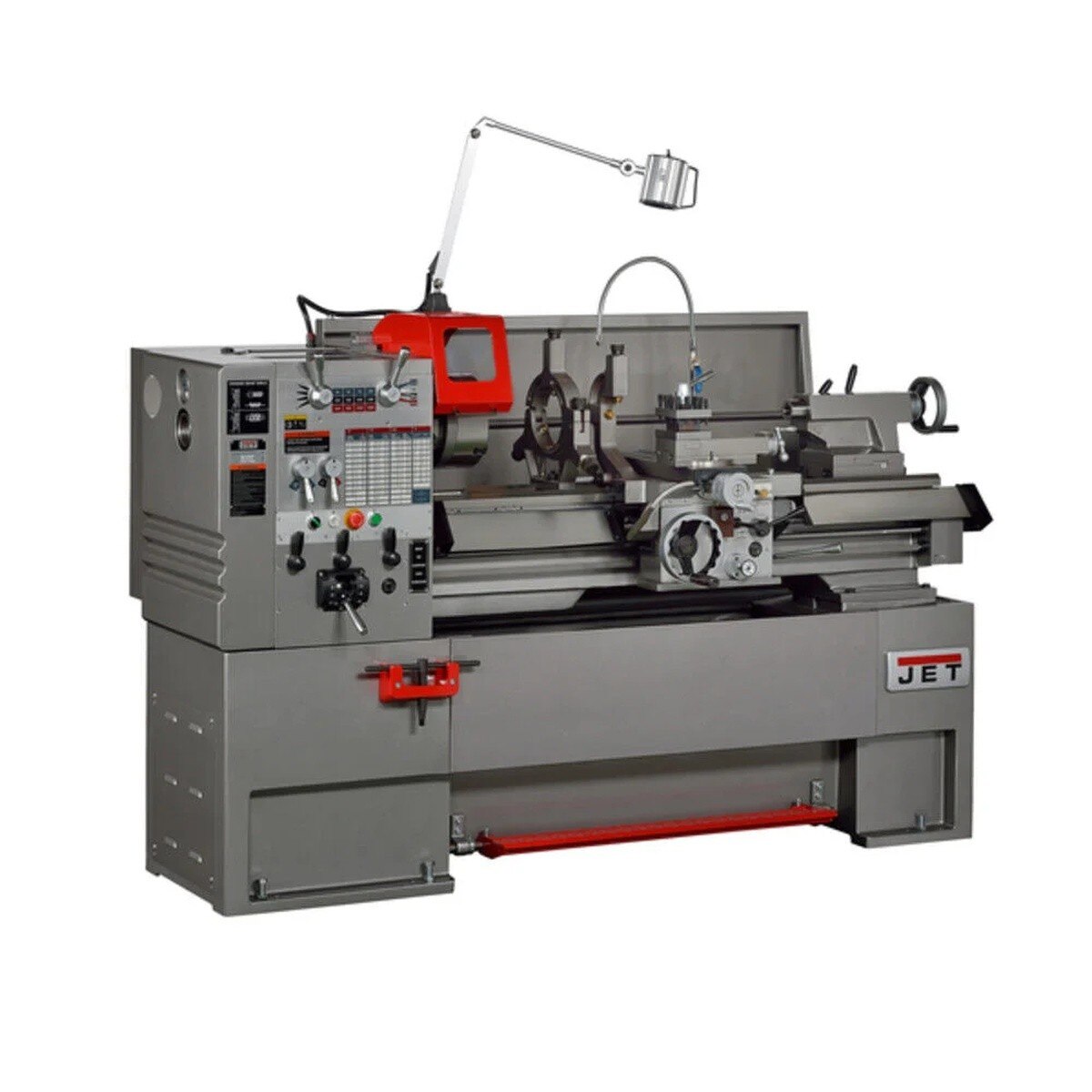

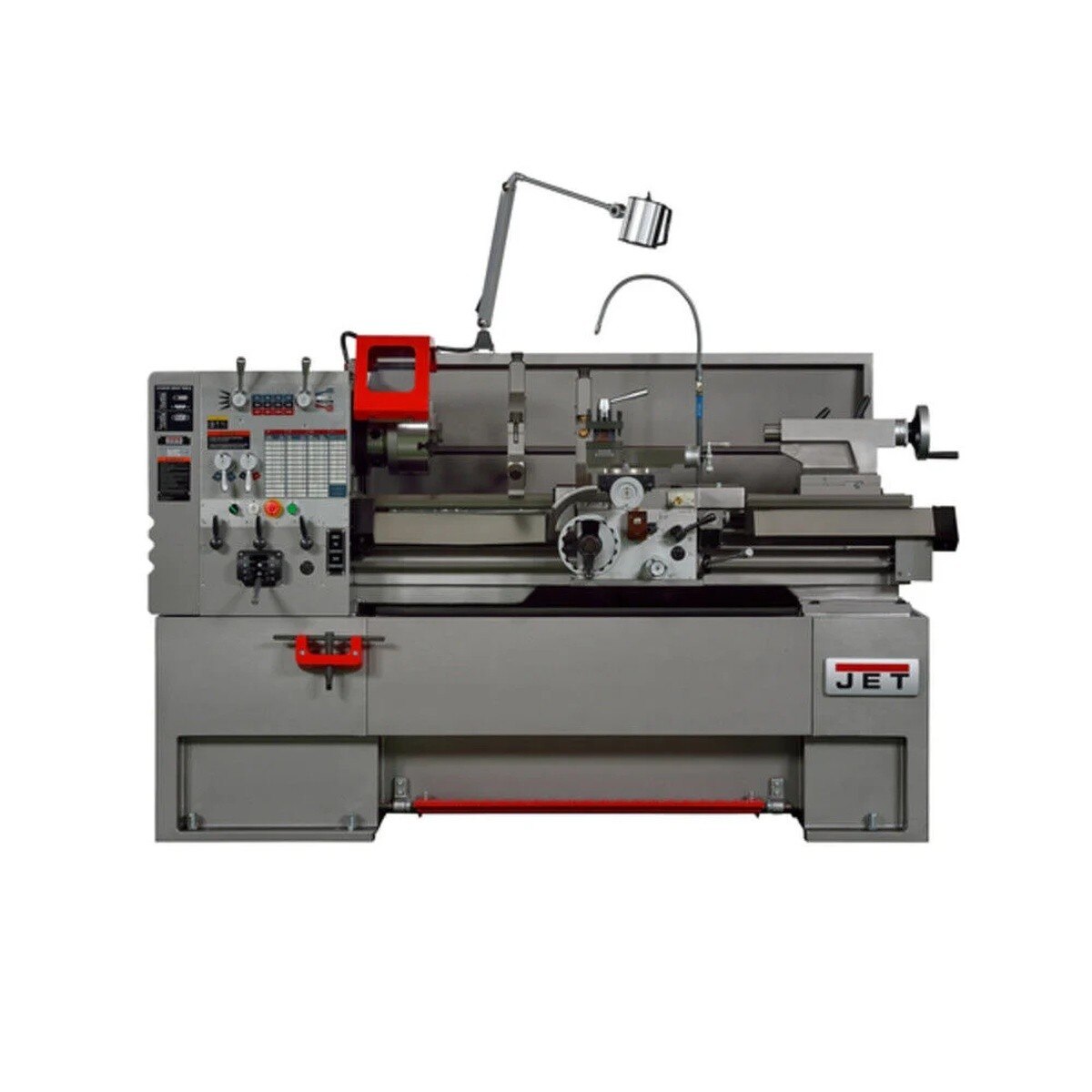

JET GH-1440ZX Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy. This lathe also features a 9" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
JET GH-1440ZX Includes
- 9" Three Jaw Scroll Chuck with Top Reversing Jaws
- Steady and Follow Rest with Roller Bearings
- Change Gears for Cutting DP and MP Threads
JET GH-1440ZX Features
- Full length splashguard with integrated CNC-style worklight
- Bed ways are induction hardened and ground for durability

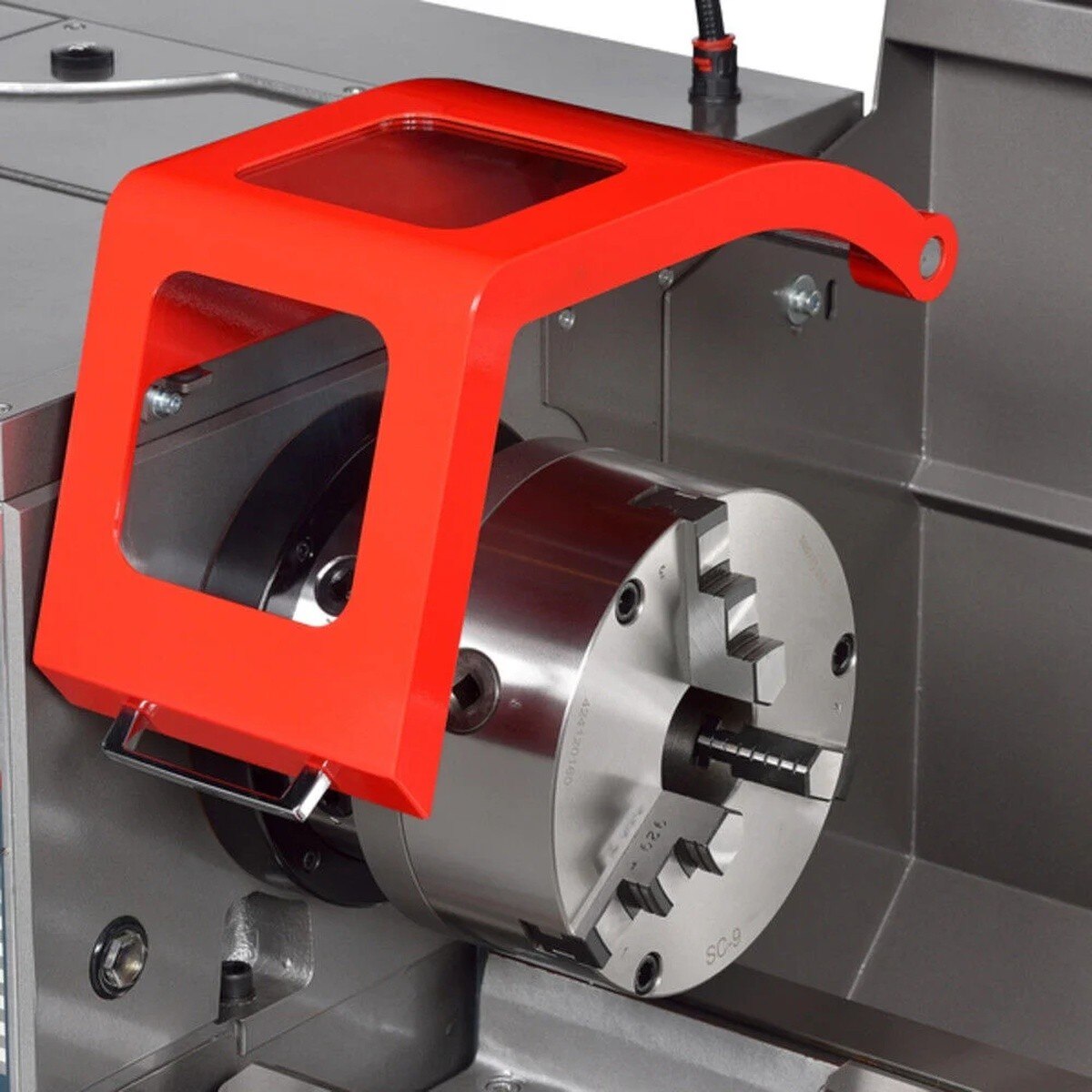

- JET Electronic Chuck Key Holder and standard chuck guard ensure operator safety while in use
- Integrated coolant system
- Fitted top mats to hold tooling
- Large easy to use foot brake
- Mounting pads and levelers
- Removable gap allows large diameter work
- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- Includes change gears to allow user to cut DP and MP threads
- UL 987 Certified
- Backed by the JET 2-Year Warranty
JET GH-1440ZX Specifications
| Model Number | GH-1440ZX |
| Size | 14x40 |
| Motor HP | 5 HP |
| Motor Voltage | 460V |
| Motor Phase | Three |
| Drive Type | Geared Head |
| Swing Over Bed | 14" |
| Swing Through Gap | 21" |
| Distance Between Centers | 40" |
| Center Height | 7.1" |
| Width of Bed | 10.2" |
| Spindle Bore | 2.55" |
| Spindle Mount | D1-6 |
| Spindle Taper | MT-6 |
| Spindle Taper with Sleeve | MT-4 |
| Number of Spindle Speeds | 12 |
| Range of Speeds | 36-1800 RPM |
| Cross Slide Travel | 8.6" |
| Swing Over Cross Slide | 8.1" |
| Compound Slide Travel | 4.9" |
| Tailstock Spindle Travel | 6" |
| Taper in Tailstock Spindle | MT-4 |
| Range of Longitudinal Feeds | 0.002" - 0.067" |
| Range of Cross Feeds | 0.001" - 0.034" |
| Range of Inch Threads (TPI) | 2-72 |
| Number of Inch Threads | 45 |
| Range of Metric Threads | 0.2 - 14mm |
| Number of Metric Threads | 39 |
| Modular Pitch Threads Range | 0.3 - 3.5 |
| Modular Pitch Threads Number | 18 |
| Diametrical Pitch Threads Number | 21 |
| Net Weight | 3340 lbs |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
Toolup Part # :
862872
