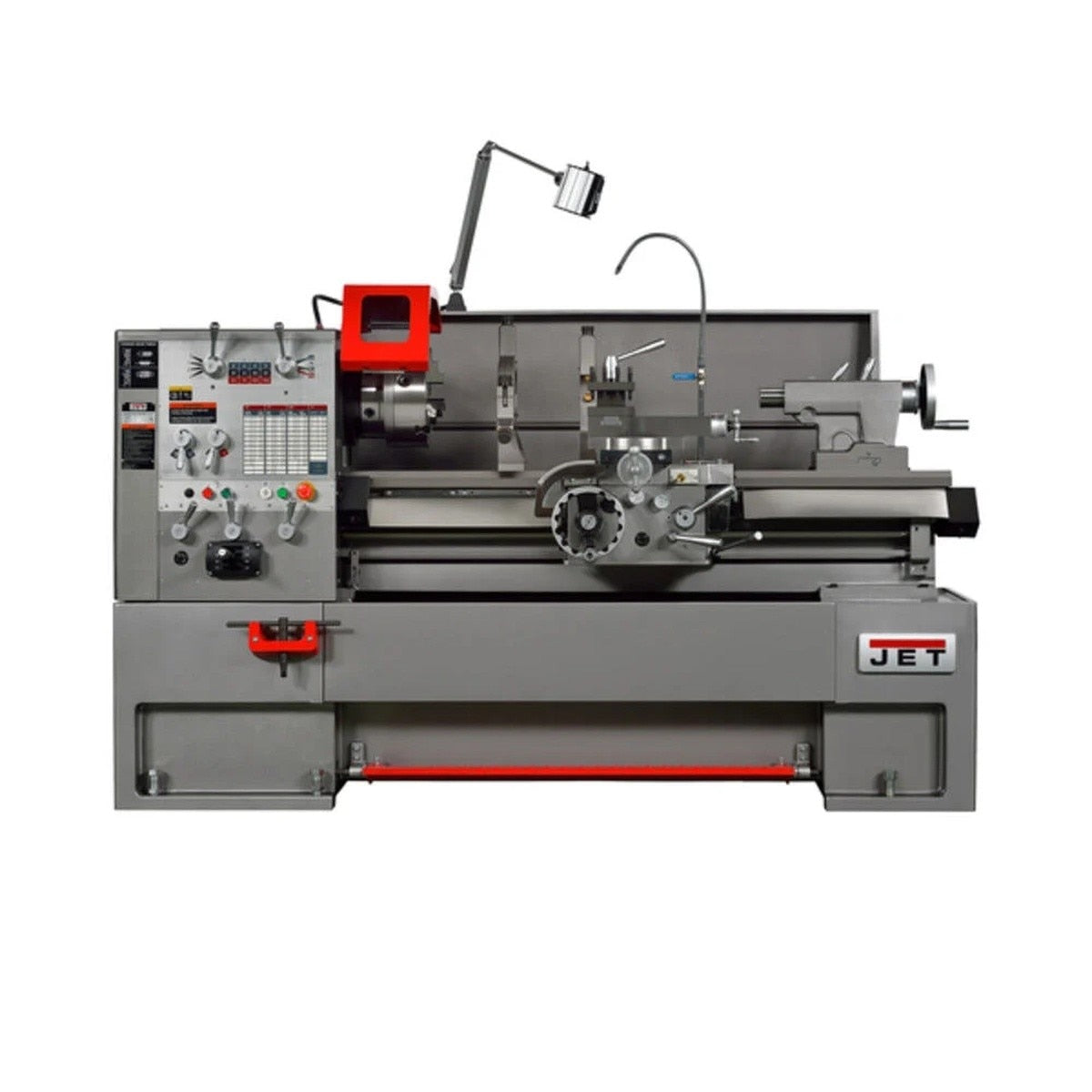

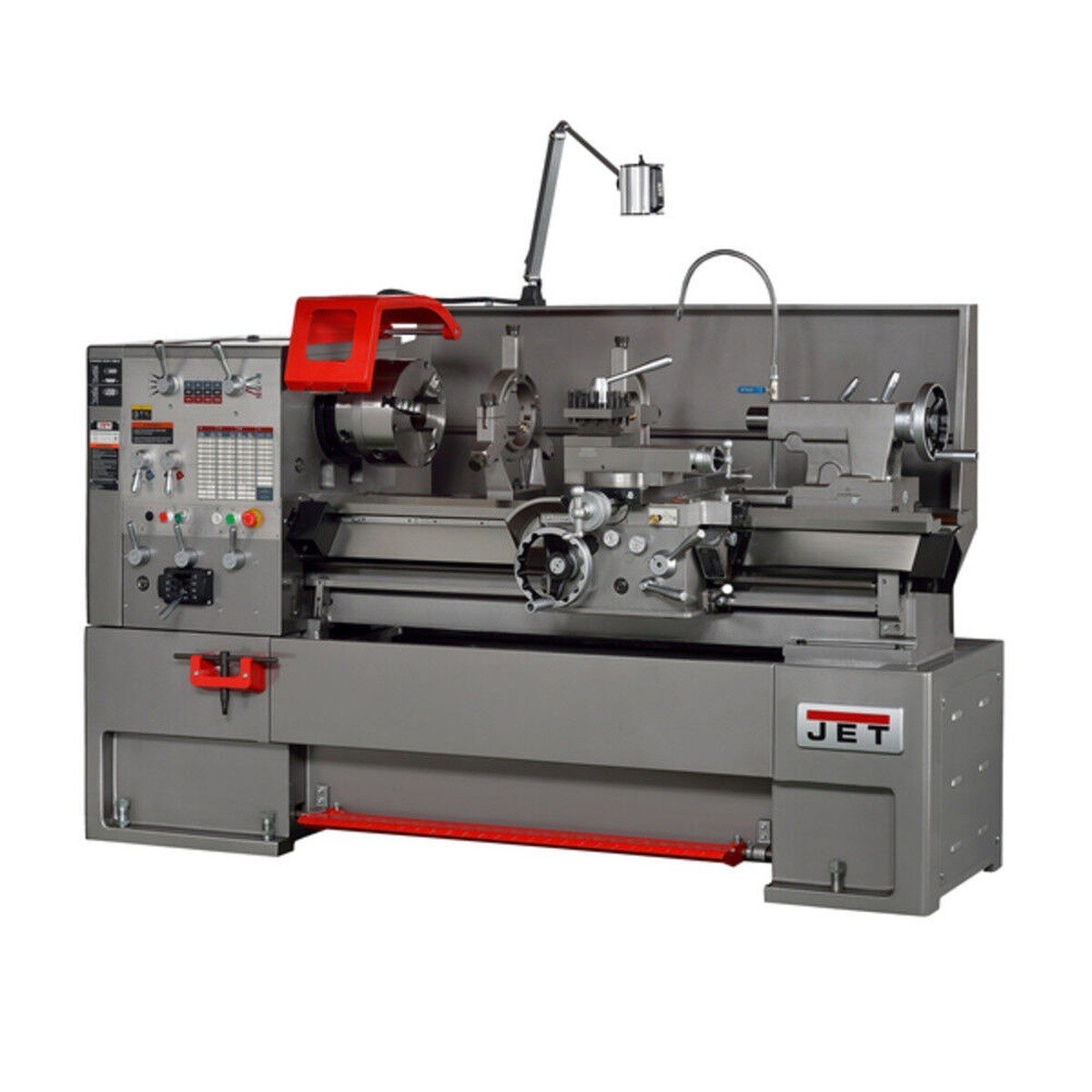

Jet GH-1660ZX Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy. This lathe also features a 10" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Jet GH-1660ZX Includes
- (1) GH-1660ZX Large Spindle Bore Gear Head Lathe
- (1) Acu-Rite 203 Digital Readout (DRO)
- (1) Taper Attachment Kit
Jet GH-1660ZX Features
- Full length splashguard with integrated CNC-style worklight
- Steady and follow rest with roller bearings
- Bed ways are induction hardened and ground for durability
- JET Electronic Chuck Key Holder and standard chuck guard ensure operator safety while in use
- Integrated coolant system
- Fitted top mats to hold tooling
- Large easy to use foot brake
- Mounting pads and levelers
- Removable gap allows large diameter work
- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- Includes change gears to allow user to cut DP and MP threads
- UL 987 Certified
Jet GH-1660ZX Specifications
| Model Number | GH-1660ZX |
| Size | 16x60 |
| Drive Type | Geared Head |
| Style Type | Engine - Large Spindle Bore |
| Motor HP | 10 |
| Motor Phase | Three |
| Motor Voltage | 230/460V |
| Swing Over Bed | 16" |
| Swing Through Gap | 23" |
| Swing Over Cross Slide | 10.3" |
| Distance Between Centers | 60" |
| Spindle Bore | 3-1/8" |
| Spindle Mount | D1-8 |
| Spindle Taper | MT-7 |
| Spindle Taper With Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Speeds | 26-1500 RPM |
| Width of Bed | 12.5" |
| Center Height | 8.1" |
| Cross Slide Travel | 9.8" |
| Compound Slide Travel | 5.9" |
| Tailstock Spindle Travel | 5" |
| Taper in Tailstock Spindle | MT-4 |
| Range of Longitudinal Feeds | 0.0015" - 0.04" |
| Range of Cross Feeds | 0.00075" - 0.02" |
| Number of Inch Threads | 45 |
| Range of Inch Threads (TPI) | 2-72 |
| Number of Metric Threads | 39 |
| Range of Metric Threads | 0.2 - 14mm |
| Modular Pitch Threads Number | 18 |
| Modular Pitch Threads Range | 0.3 - 3.5 |
| Diametral Pitch Threads Number | 21 |
| Digital Readout (DRO) | Yes |
| 30 Point Inspection | Yes |
| Net Weight (lbs) | 4189 |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
Toolup Part # :
862891
