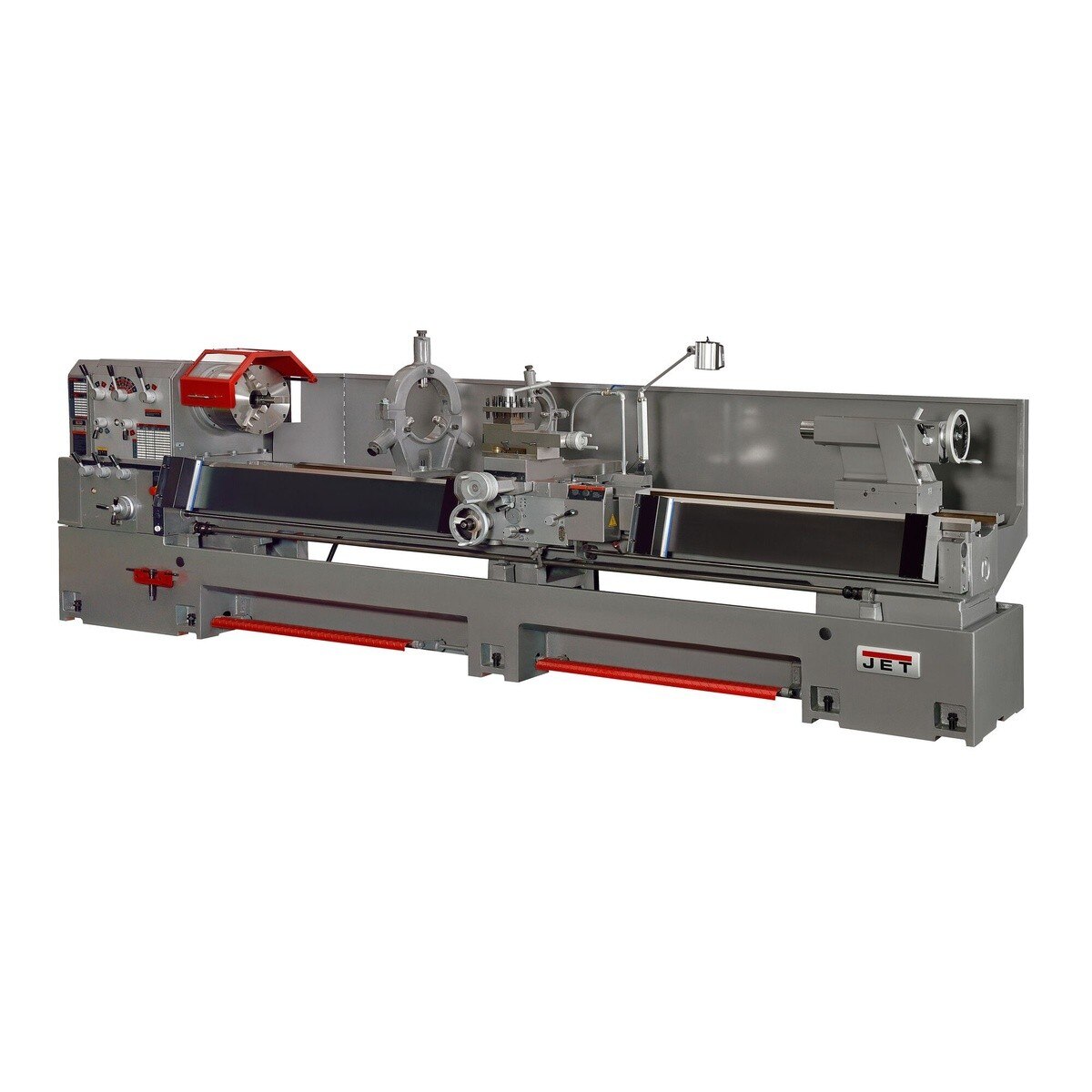

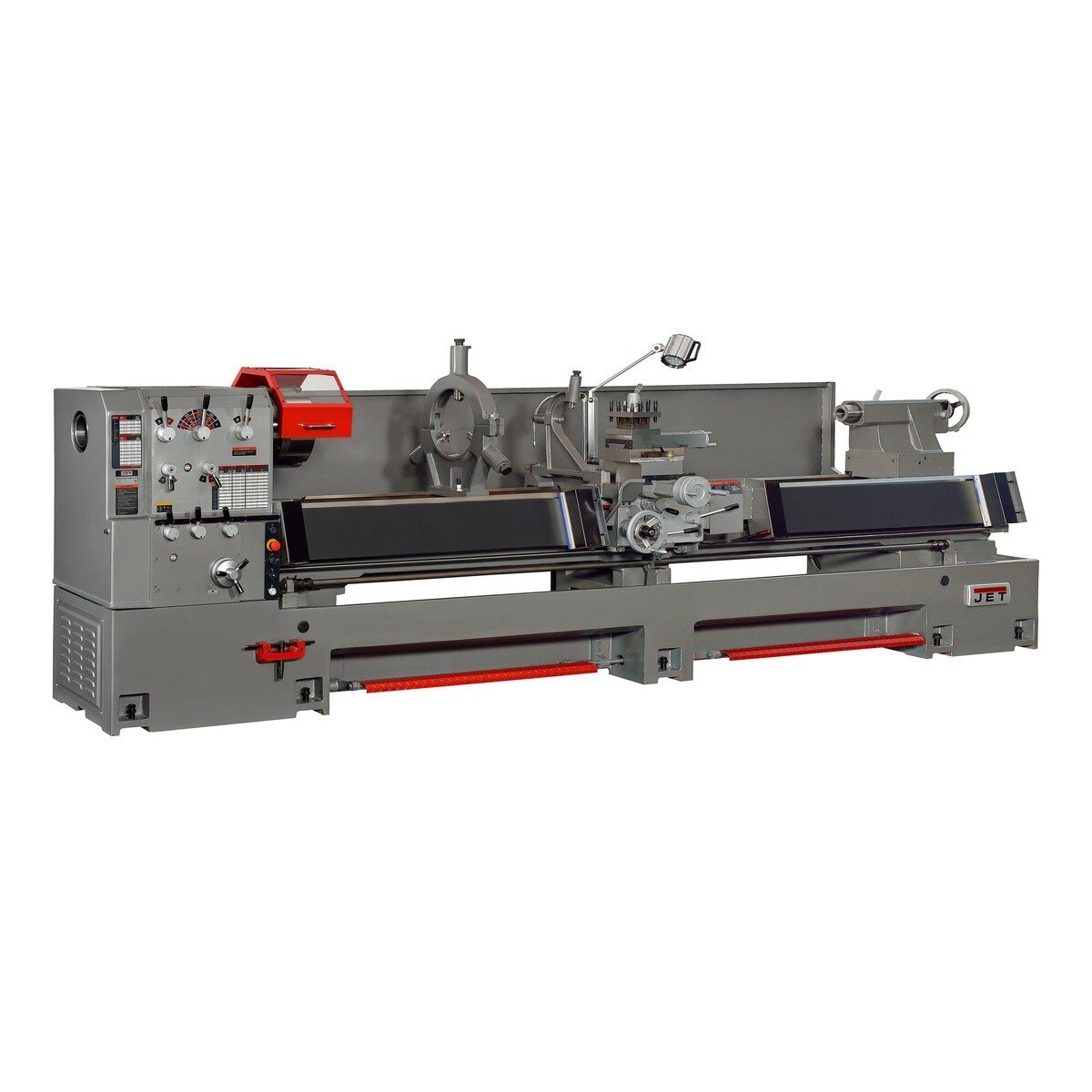

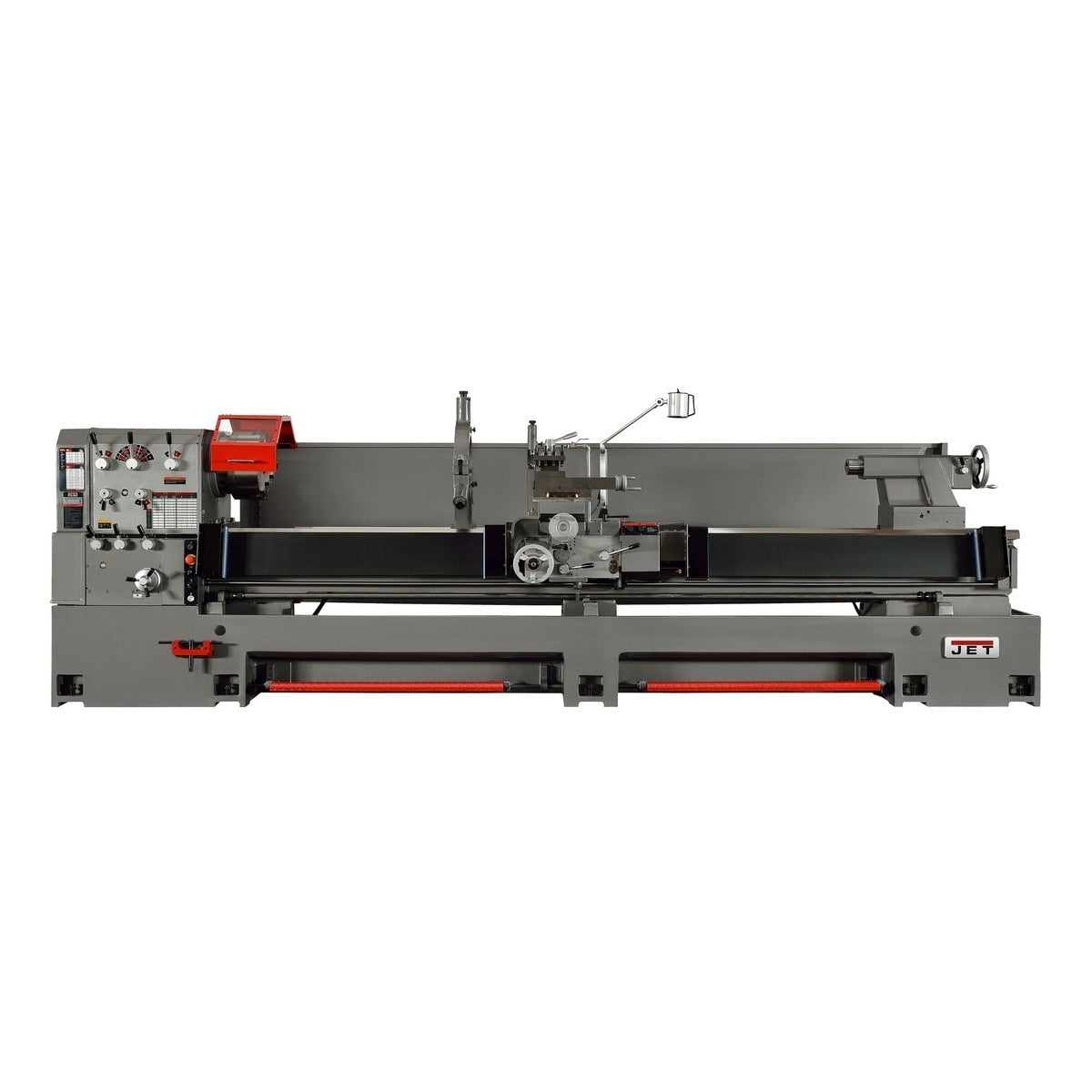

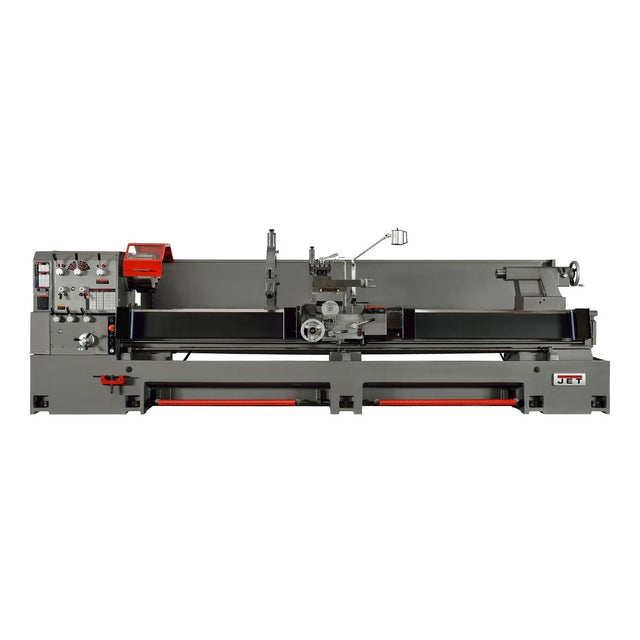

Jet GH-2680ZH Description

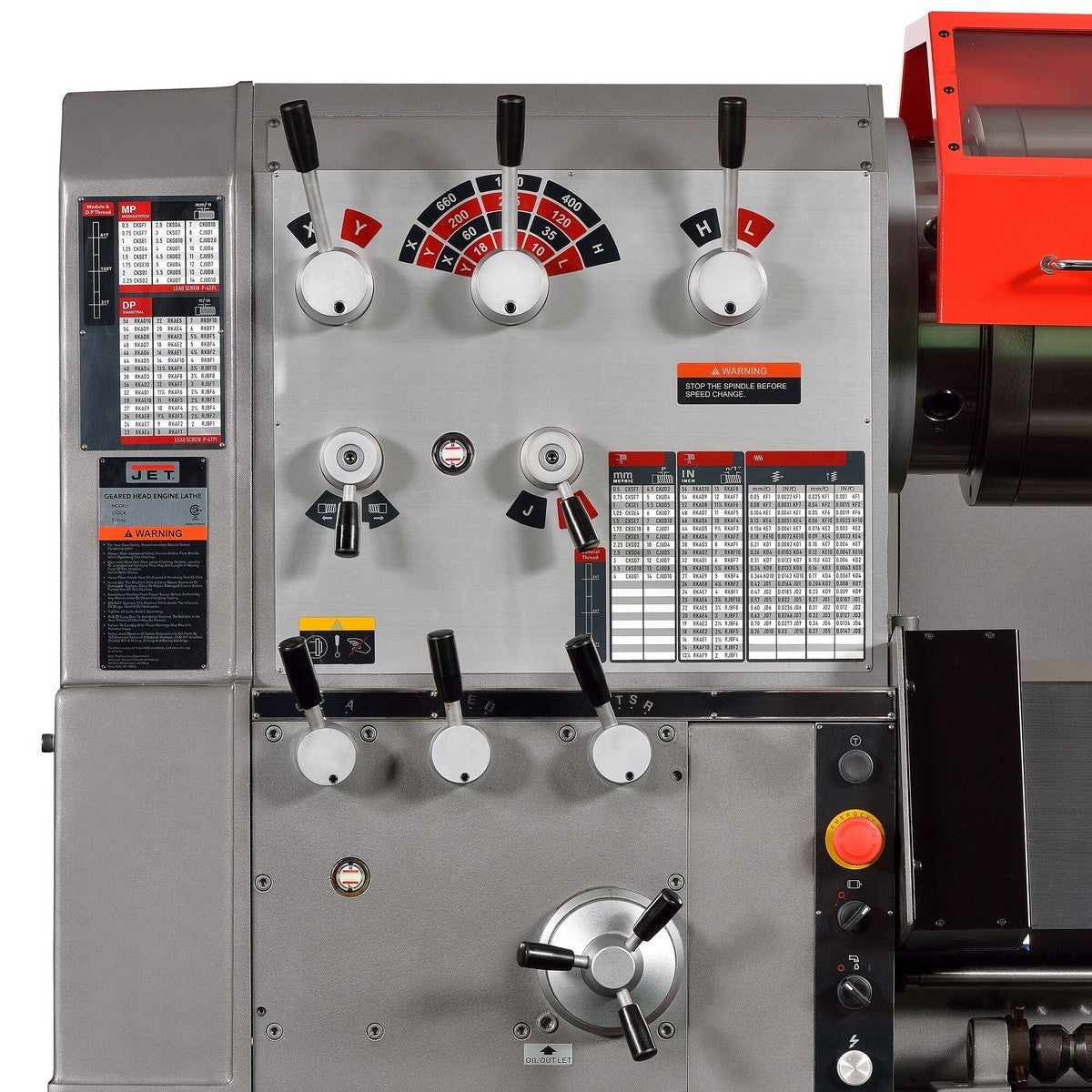

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2" Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you have come to expect in a JET Lathe, backed by the industry-leading JET Two Year Warranty.
Jet GH-2680ZH Includes
- (1) 3 Jaw Scroll Chuck with Top Reversing Jaws
- (1) Steady Rest with Roller Bearings
- (1) Follow Rest with Roller Bearings
- Change Gears for Cutting DP and MP Threads
Jet GH-2680ZH Features
- Bed ways are induction hardened and ground for long-lasting durability
- E-Stop on carriage for added operator safety
- Electronic Chuck Key Holder for secure storage
- Fitted top mats to conveniently hold tooling
- Full length splash guard for a cleaner work environment
- CNC-style full length worklight for improved visibility
- Heavy-duty tailstock and quill for rigidity and precision
- Large, easy-to-use foot brake for quick stops
- Rapid power traverse to cross slide and carriage for increased productivity
- Standard leadscrew cover protects leadscrew from debris and simplifies cleanup
- UL 987 Certified
- 30 Point Inspection performed prior to shipping
- Backed by JET's 2-Year Warranty
Jet GH-2680ZH Specifications
| Model Number | GH-2680ZH |
| Size | 26x80 |
| Motor HP | 15 HP |
| Motor Phase | Three Phase |
| Motor Voltage | 460V |
| Drive Type | Geared Head |
| Swing Over Bed | 26" |
| Swing Through Gap | 35" |
| Swing Over Cross Slide | 17-1/3" |
| Distance Between Centers | 80" |
| Center Height | 13" |
| Width of Bed | 15-3/4" |
| Spindle Bore | 4-1/2" |
| Spindle Mount | D1-11 |
| Spindle Taper | MT-7 |
| Spindle Taper with Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Speeds | 10 - 1000 RPM |
| Cross Slide Travel | 14-3/4" |
| Compound Slide Travel | 8" |
| Tailstock Spindle Travel | 6-1/2" |
| Taper in Tailstock Spindle | MT-5 |
| Range of Inch Threads (TPI) | 2 - 56 |
| Range of Metric Threads | 0.5 - 14mm |
| Range of Cross Feeds | 0.001" - 0.0094" |
| Range of Longitudinal Feeds | 0.002" - 0.032" |
| Assembled Dimensions (L x W x H) | 136.6" x 40.6" x 51.6" |
| Net Weight (lbs) | 6,283 |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
Toolup Part # :
862909
