Jet | SKU:
JT1-3315

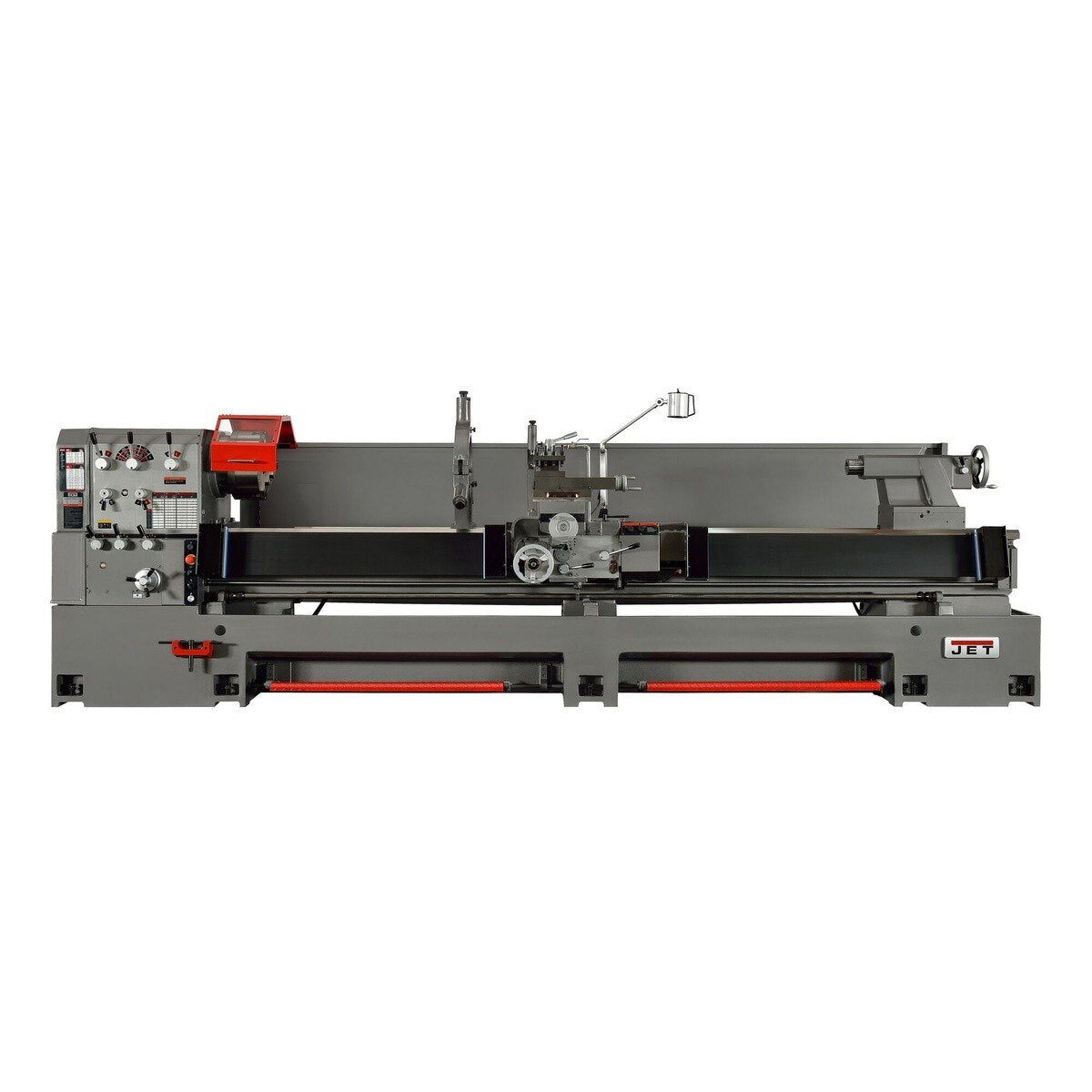

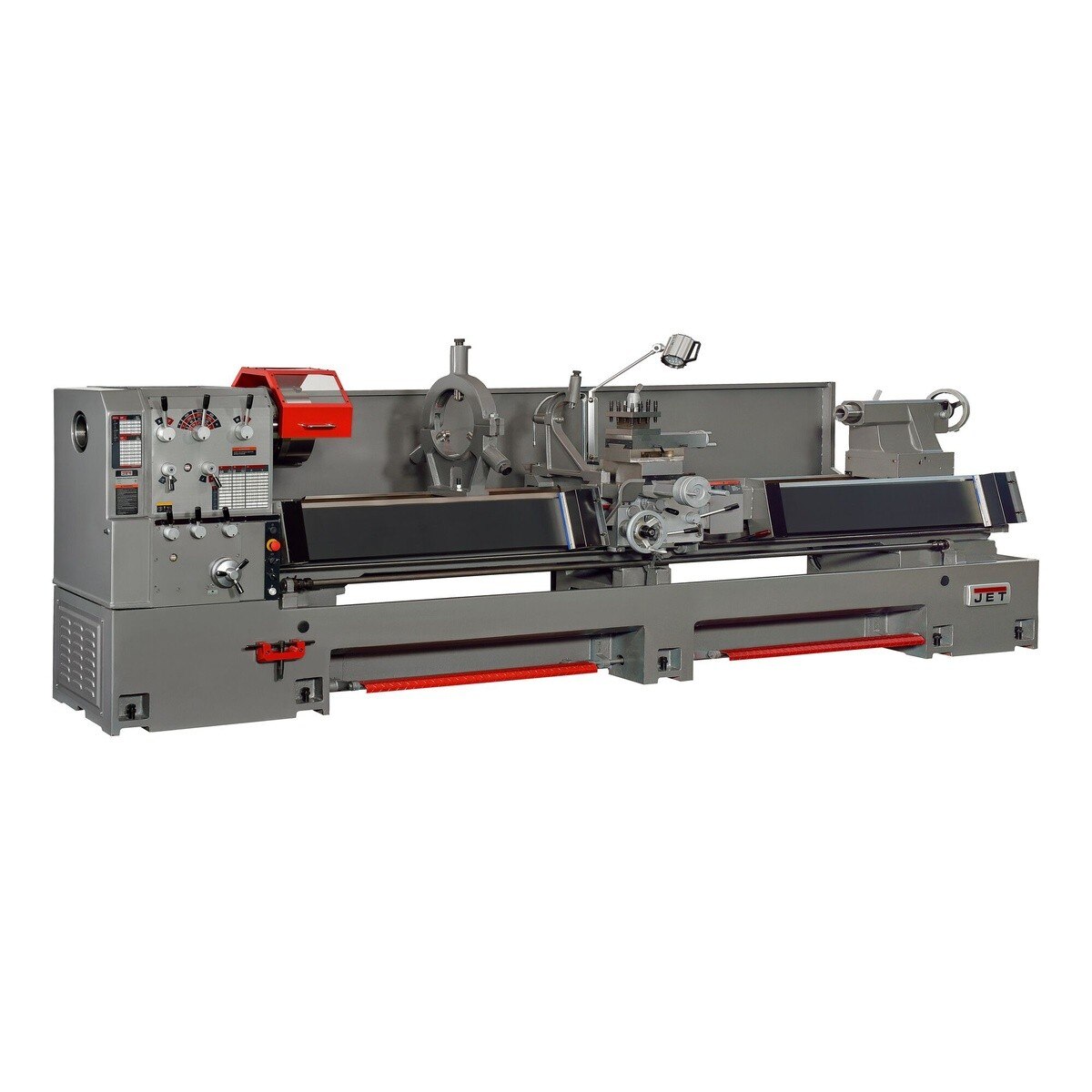

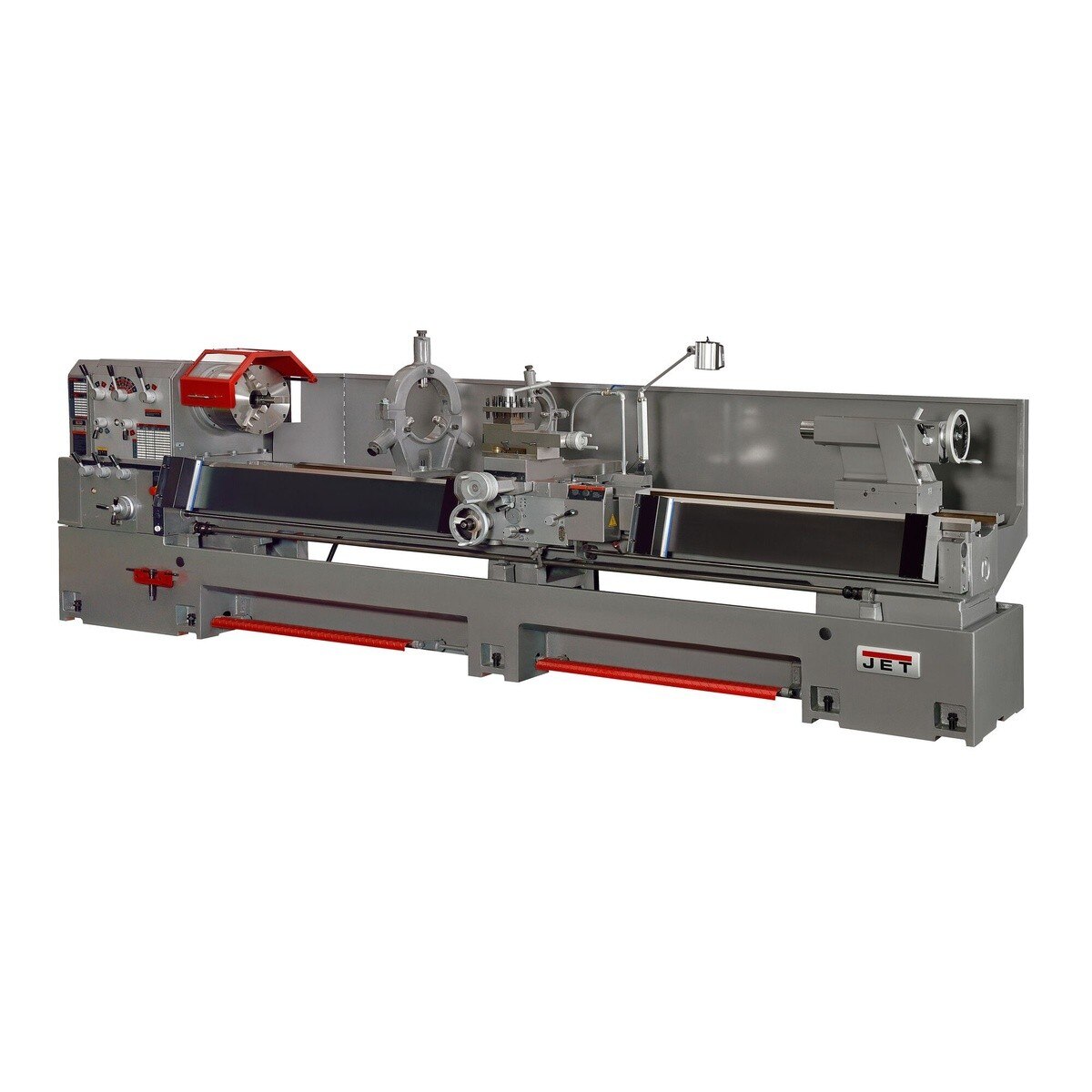

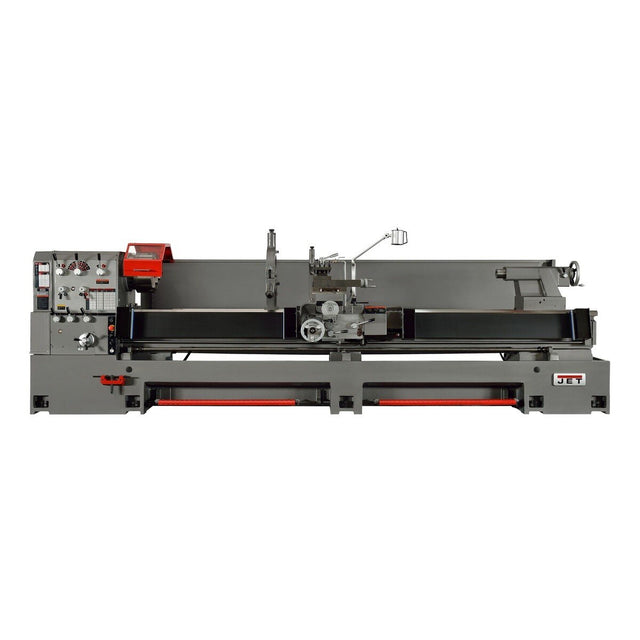

Jet JT1-3315 26x80 Large Spindle Bore Gear Head Lathe with Newall NMS800 DRO
$66,347.05
$72,999.00
Unit price
/
Unavailable
Description
Description
Jet GH-2680ZH Description

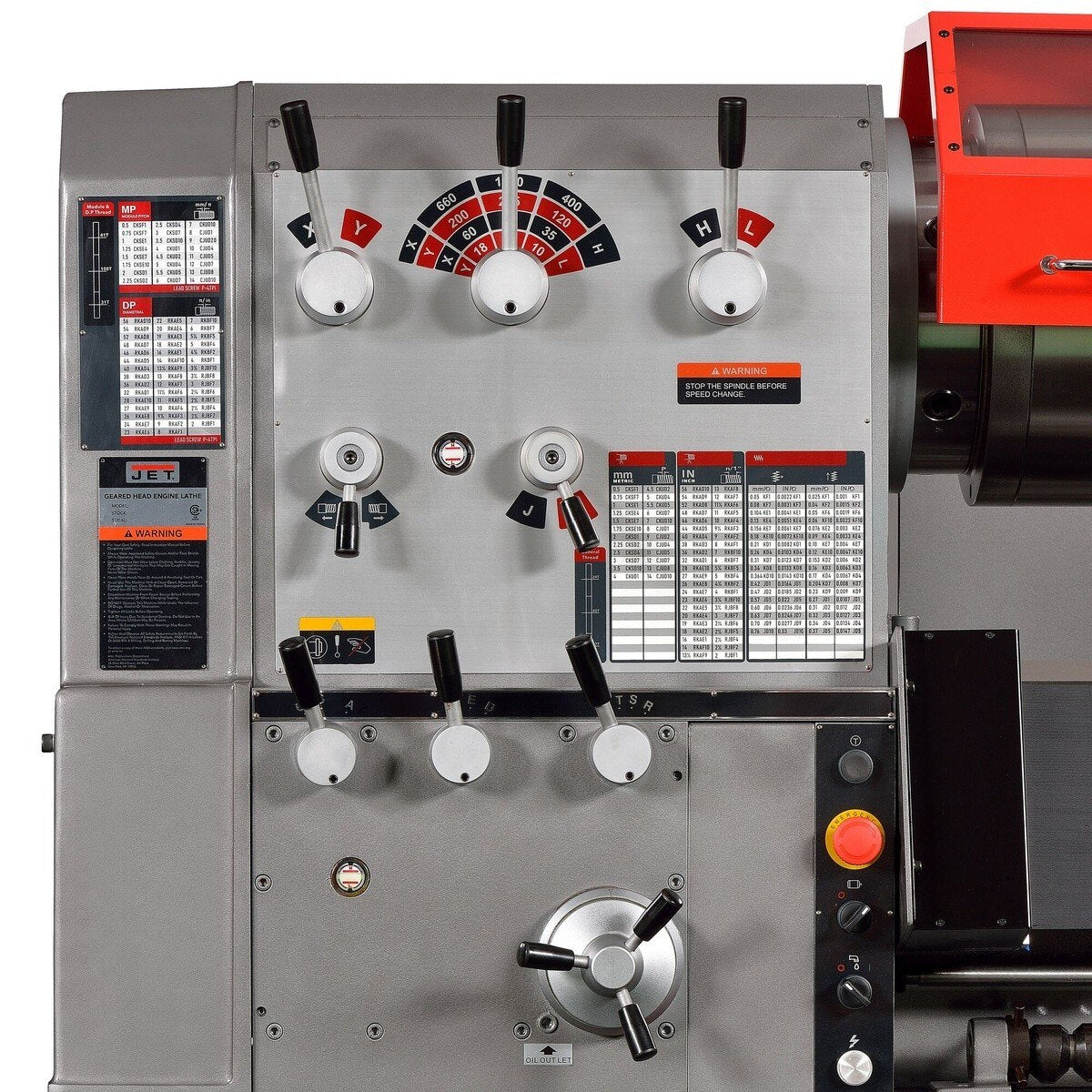

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2" Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Jet GH-2680ZH Includes
- (1) 3 Jaw Scroll Chuck with Top Reversing Jaws
- (1) Steady and Follow Rest with Roller Bearings
- Change Gears for Cutting DP and MP Threads
- Newall NMS800 Digital Readout (DRO)
Jet GH-2680ZH Features
- Bed ways are induction hardened and ground for durability
- E-Stop on carriage for added safety
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full length splash guard
- CNC-style full length worklight
- Heavy-duty tailstock and quill
- Large, easy-to-use foot brake
- Rapid power traverse to cross slide and carriage
- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- UL 987 Certified
Jet GH-2680ZH Specifications
| Model Number | GH-2680ZH |
| Size | 26 x 80 |
| Drive Type | Geared Head |
| Style Type | Engine - Large Spindle Bore |
| Swing Over Bed | 26" |
| Swing Through Gap | 35" |
| Swing Over Cross Slide | 17-1/3" |
| Distance Between Centers | 80" |
| Spindle Bore | 4-1/2" |
| Spindle Mount | D1-11 |
| Spindle Taper | MT-7 |
| Spindle Taper With Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Speeds | 10-1000 RPM |
| Center Height | 13" |
| Width of Bed | 15-3/4" |
| Cross Slide Travel | 14-3/4" |
| Compound Slide Travel | 8" |
| Tailstock Spindle Travel | 6-1/2" |
| Taper in Tailstock Spindle | MT-5 |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Metric Threads | 0.5 - 14mm |
| Range of Longitudinal Feeds | 0.002" - 0.032" |
| Range of Cross Feeds | 0.001" - 0.0094" |
| Motor HP | 15 |
| Motor Phase | Three |
| Motor Voltage | 230/460V |
| Digital Readout (DRO) | Yes - Newall NMS800 |
| Net Weight (lbs) | 6283 |
| Assembled Dimensions (in) | 136.6" x 40.6" x 51.6" |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
Toolup Part # :
862910
