Jet  |  SKU: JT1-3316  |  Barcode: 19907009542

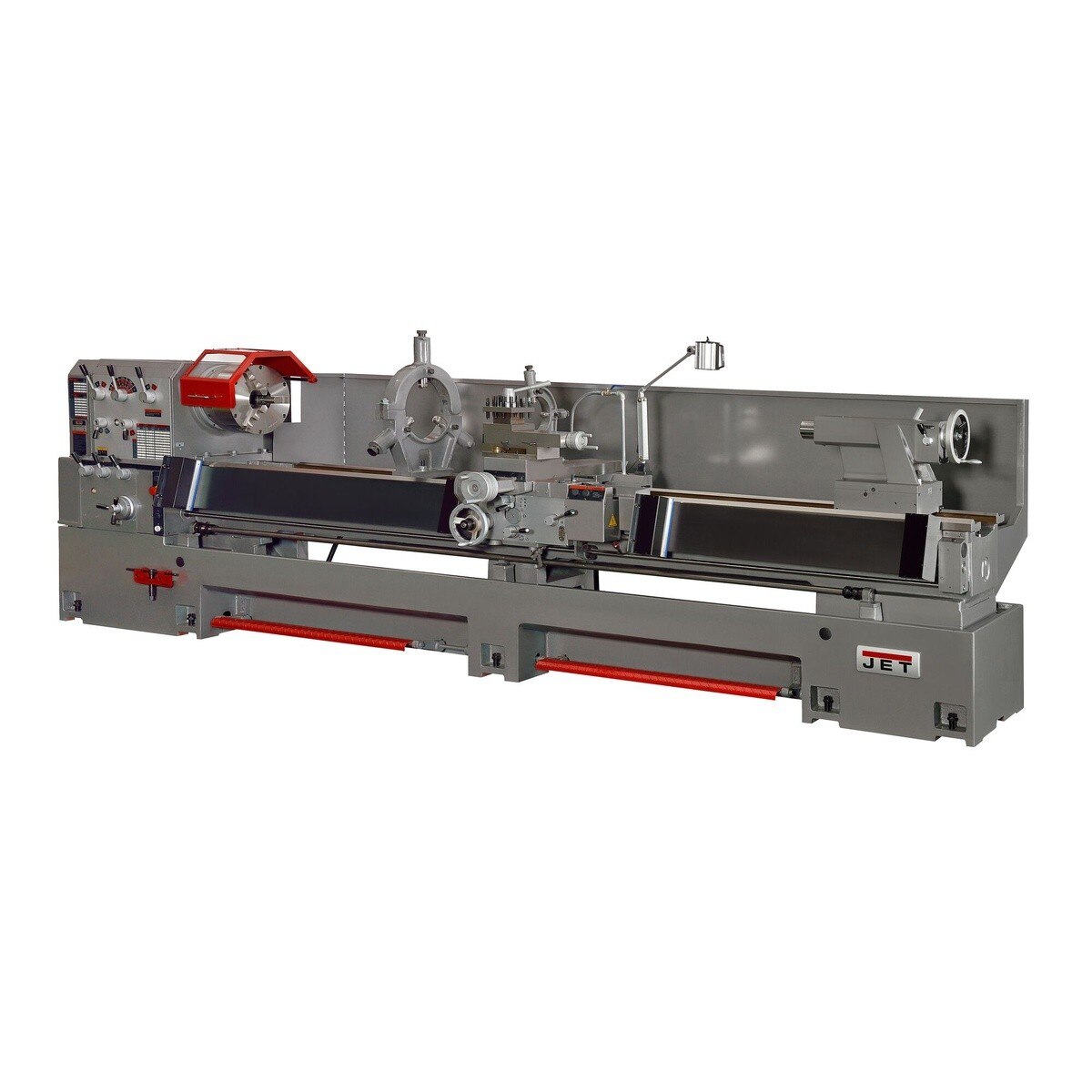

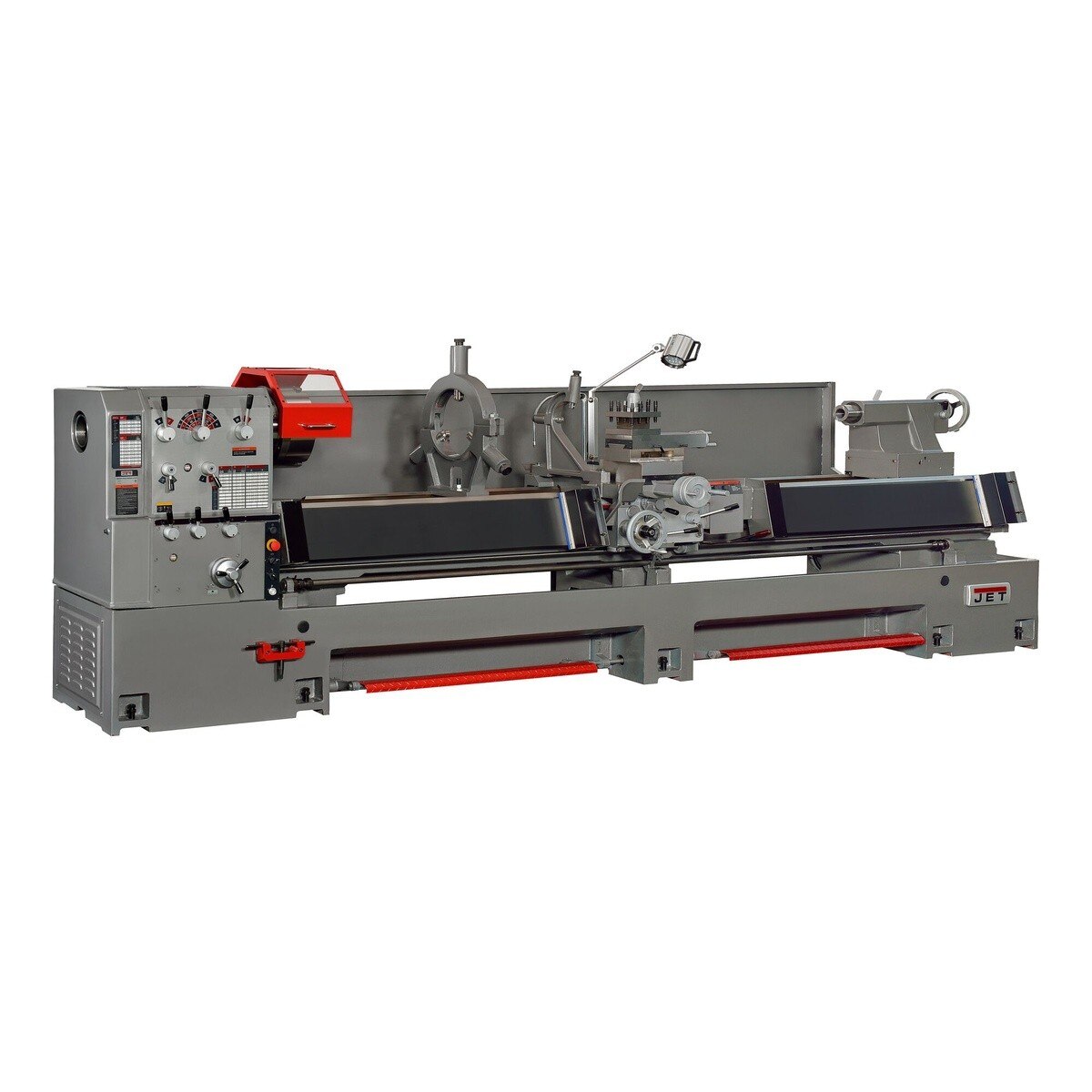

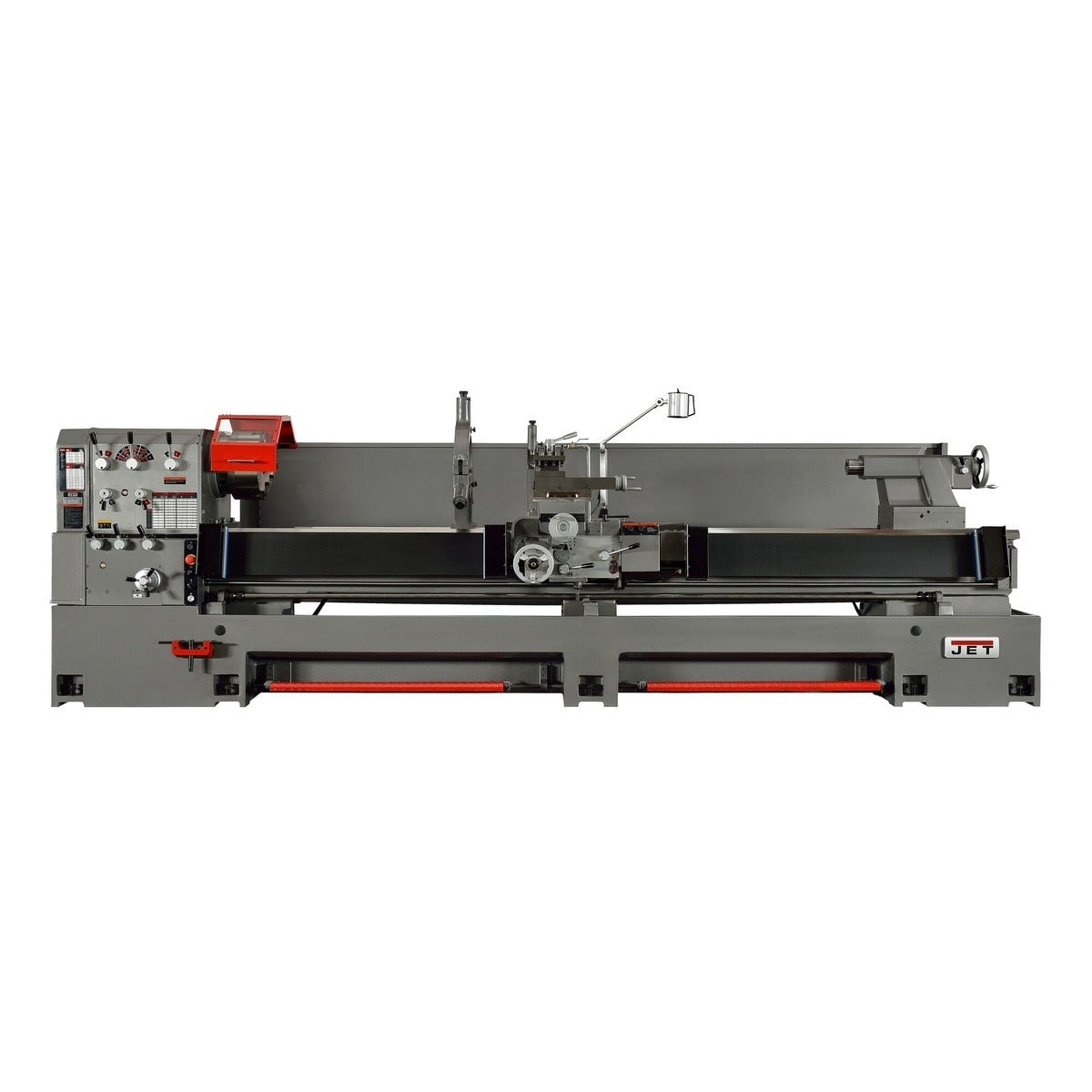

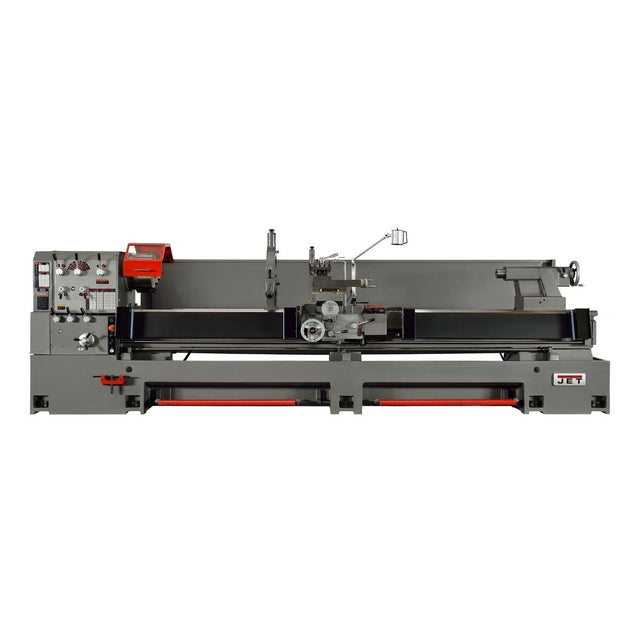

Jet JT1-3316 26x80 Large Spindle Bore Gear Head Lathe with Newall NMS800 and Taper Attachment Kit

$70,891.36 $77,999.00

Description

JET GH-2680ZH Description

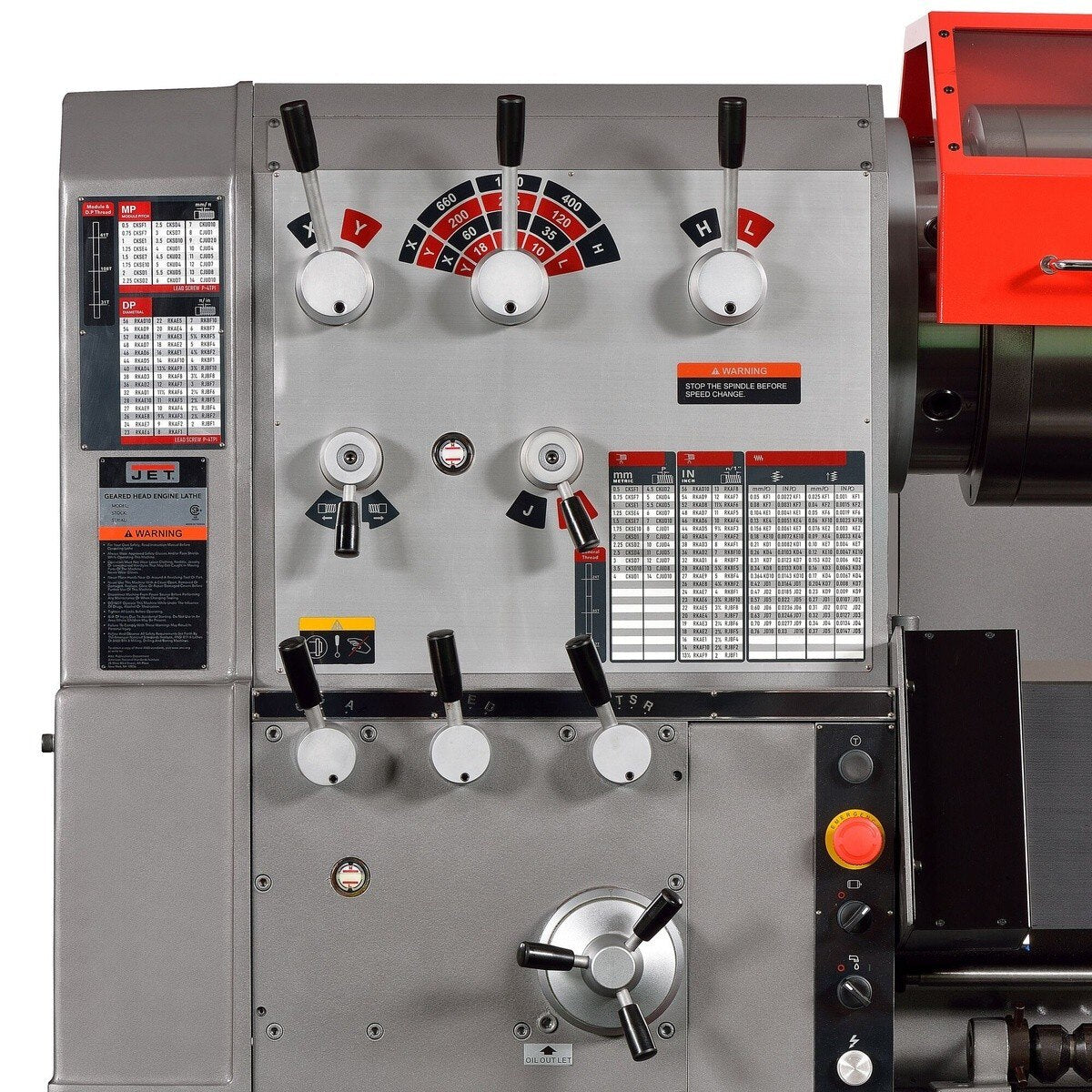

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2" Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

JET GH-2680ZH Includes

  • Newall NMS800 Digital Readout (DRO)
  • Taper Attachment Kit

JET GH-2680ZH Features

  • 3 Jaw scroll chuck with top reversing jaws
  • Steady and follow rest with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on carriage for added safety
  • Electronic chuck key holder
  • Fitted top mats to hold tooling
  • Full length splash guard
  • CNC-style full length worklight
  • Heavy-duty tailstock and quill
  • Large easy to use foot brake
  • Rapid power traverse to cross slide and carriage
  • Standard leadscrew cover to protect leadscrew from debris and easy cleanup
  • Includes change gears to allow user to cut DP and MP threads
  • UL 987 Certified

JET GH-2680ZH Specifications

Model Number GH-2680ZH
Size 26x80
Motor HP 15
Motor Phase Three
Motor Voltage 230/460V
Drive Type Geared Head
Style Type Engine - Large Spindle Bore
Swing Over Bed 26"
Swing Through Gap 35"
Swing Over Cross Slide 17-1/3"
Distance Between Centers 80"
Center Height 13"
Spindle Bore 4-1/2"
Spindle Mount D1-11
Spindle Taper MT-7
Spindle Taper With Sleeve MT-5
Number of Spindle Speeds 12
Range of Speeds 10-1000 RPM
Width of Bed 15-3/4"
Cross Slide Travel 14-3/4"
Compound Slide Travel 8"
Tailstock Spindle Travel 6-1/2"
Taper in Tailstock Spindle MT-5
Range of Longitudinal Feeds 0.002" - 0.032"
Range of Cross Feeds 0.001" - 0.0094"
Range of Inch Threads (TPI) 2-56
Range of Metric Threads 0.5 - 14mm
Digital Readout (DRO) Yes
30 Point Inspection Yes
Assembled Dimensions (L x W x H) 136.6" x 40.6" x 51.6"
Net Weight (lbs) 6283
Country of Origin Taiwan
Warranty 2 Year
Toolup Part # : 862911
