Jet | SKU:
JT1-3320

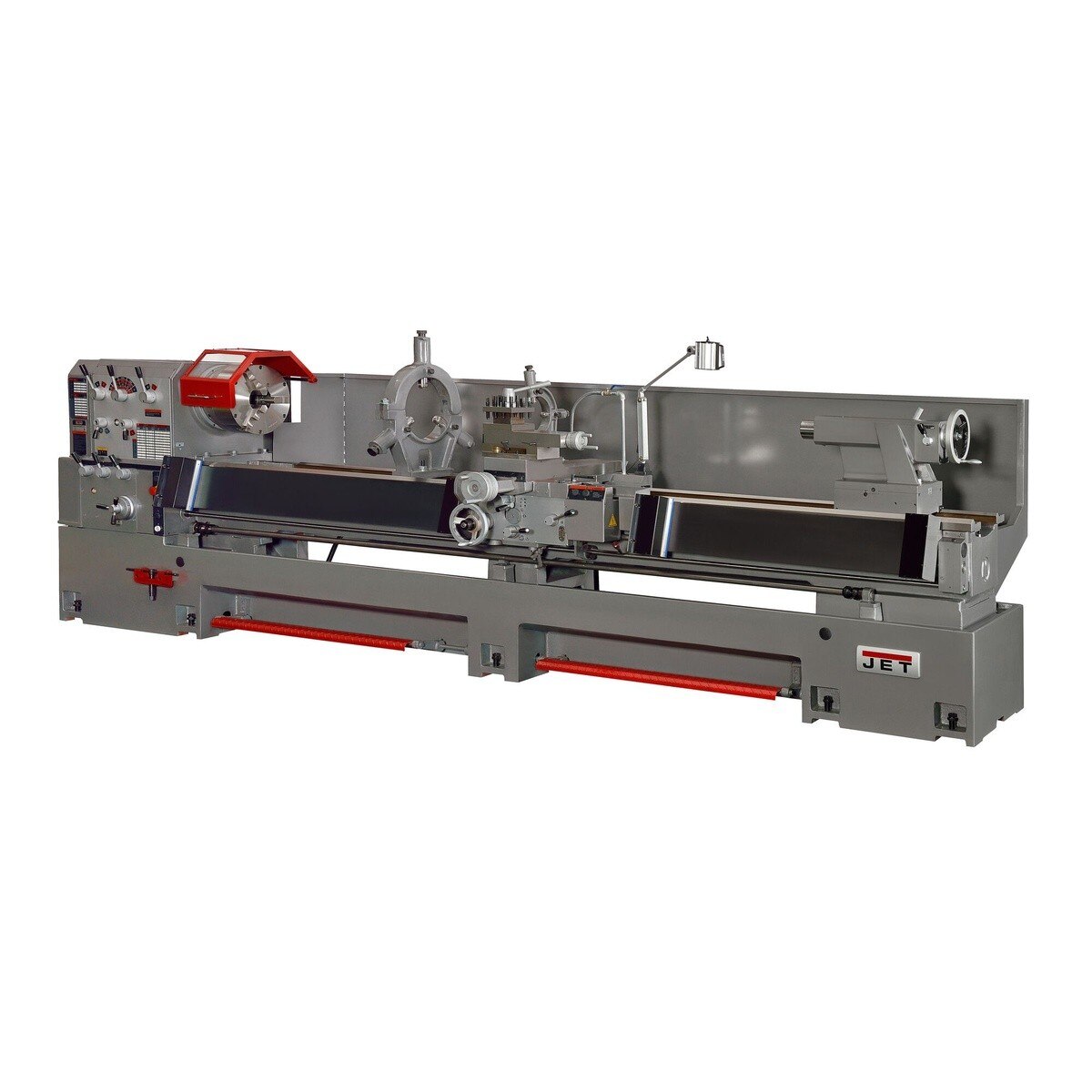

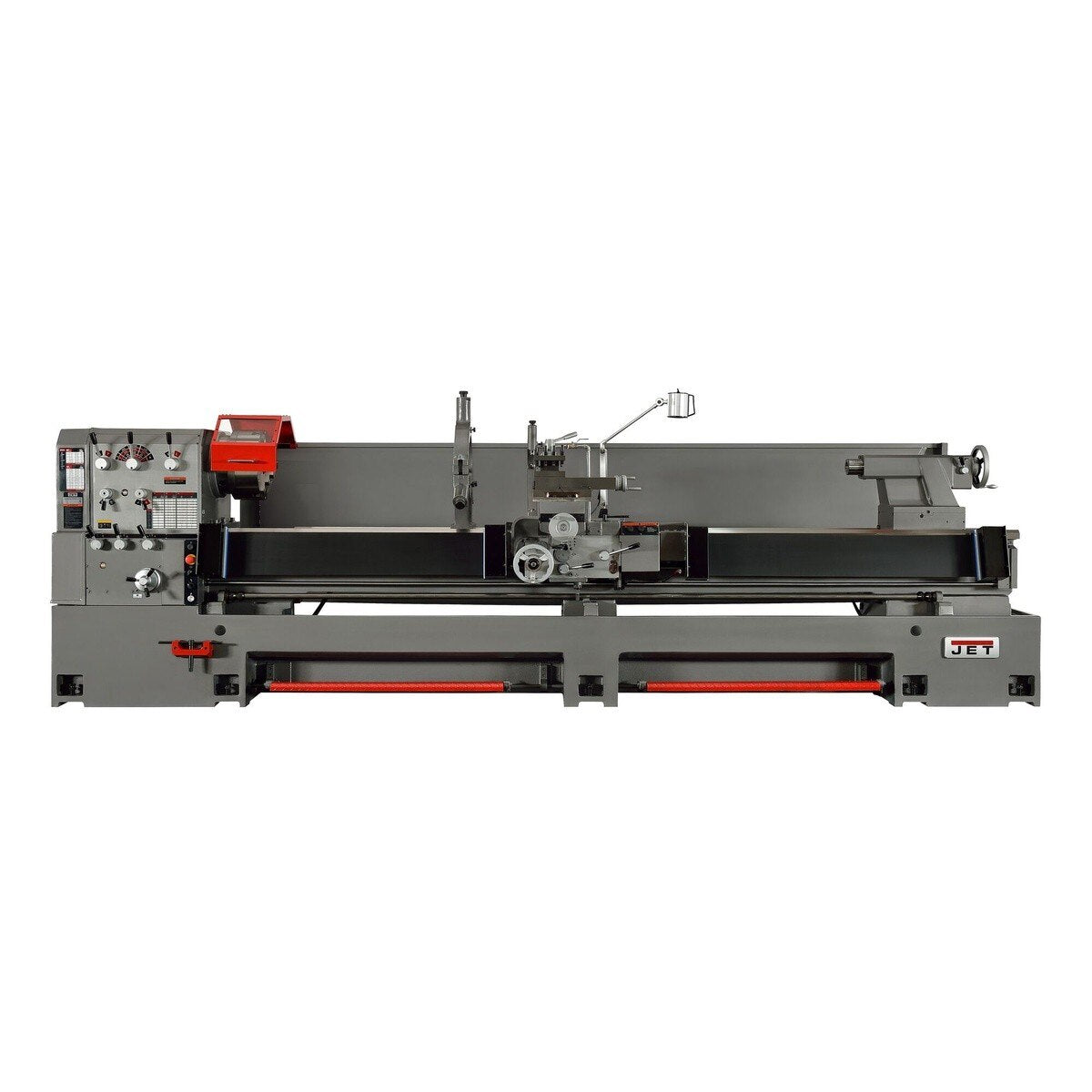

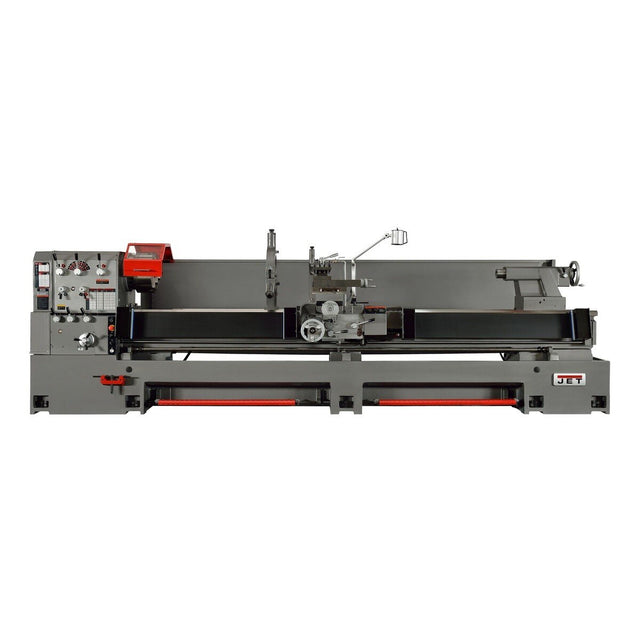

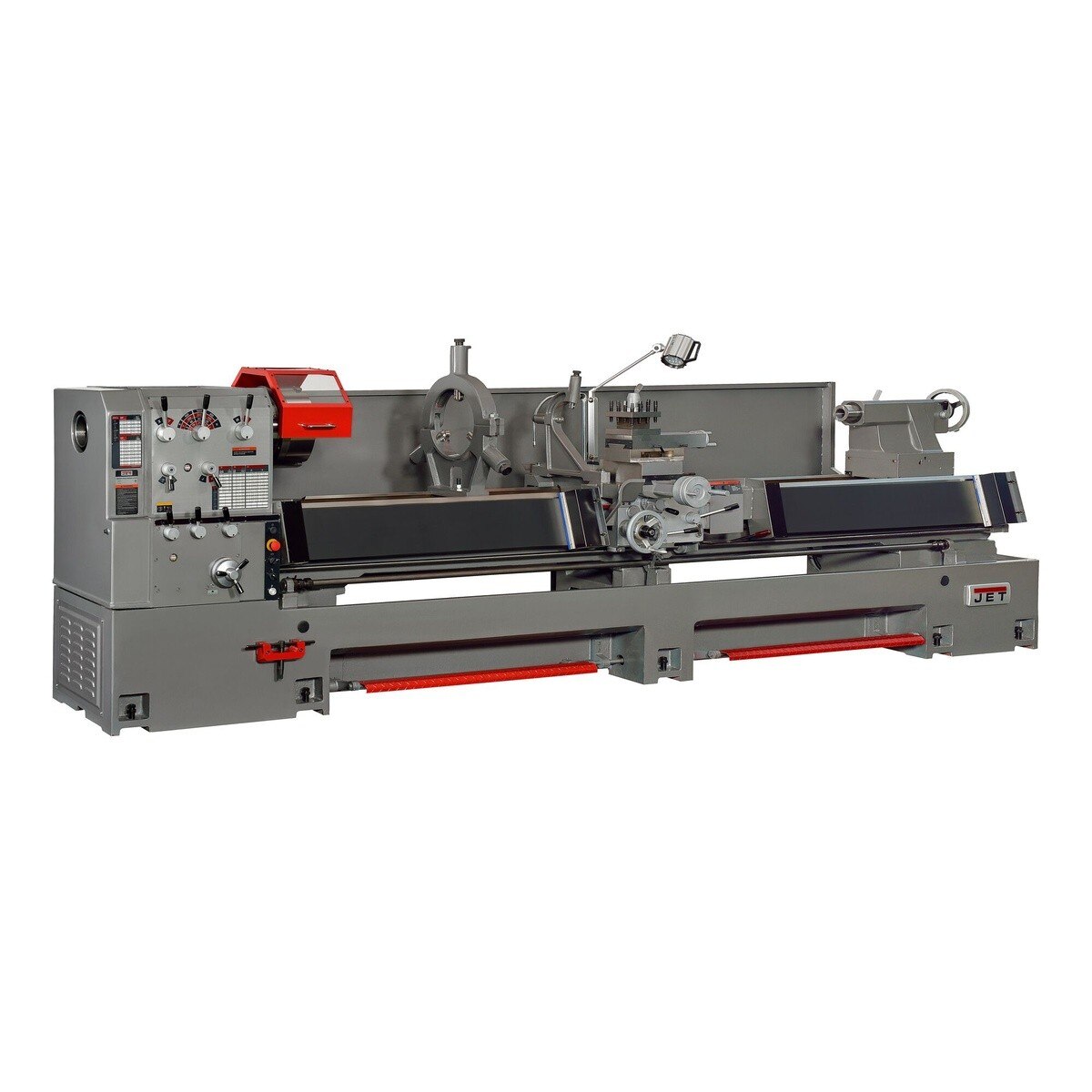

Jet JT1-3320 26x130 Large Spindle Bore Gear Head Lathe with Newall NMS800 DRO
$78,162.27
$85,999.00
Unit price
/
Unavailable
Description
Description
JET GH-26130ZH Description
Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2" Large Spindle Bore Gear Head Lathe provides consistent, reliable, and precise operation. Featuring a clutch-operated headstock with all headstock gears hardened and ground, a fully integrated coolant system, and a rapid traverse on the apron, the GH-26130ZH is designed for high-output production applications. Equipped with the Newall NMS800 Digital Readout and backed by the industry-leading JET Two Year Warranty, this lathe delivers the performance and dependability professionals demand.
JET GH-26130ZH Includes
- (1) 3 Jaw scroll chuck with top reversing jaws
- (1) Steady and follow rest with roller bearings
- Change gears for cutting DP and MP threads
JET GH-26130ZH Features
- Certified Meehanite casting process for superior rigidity and durability
- Bed ways are induction hardened and precision ground for long-term accuracy

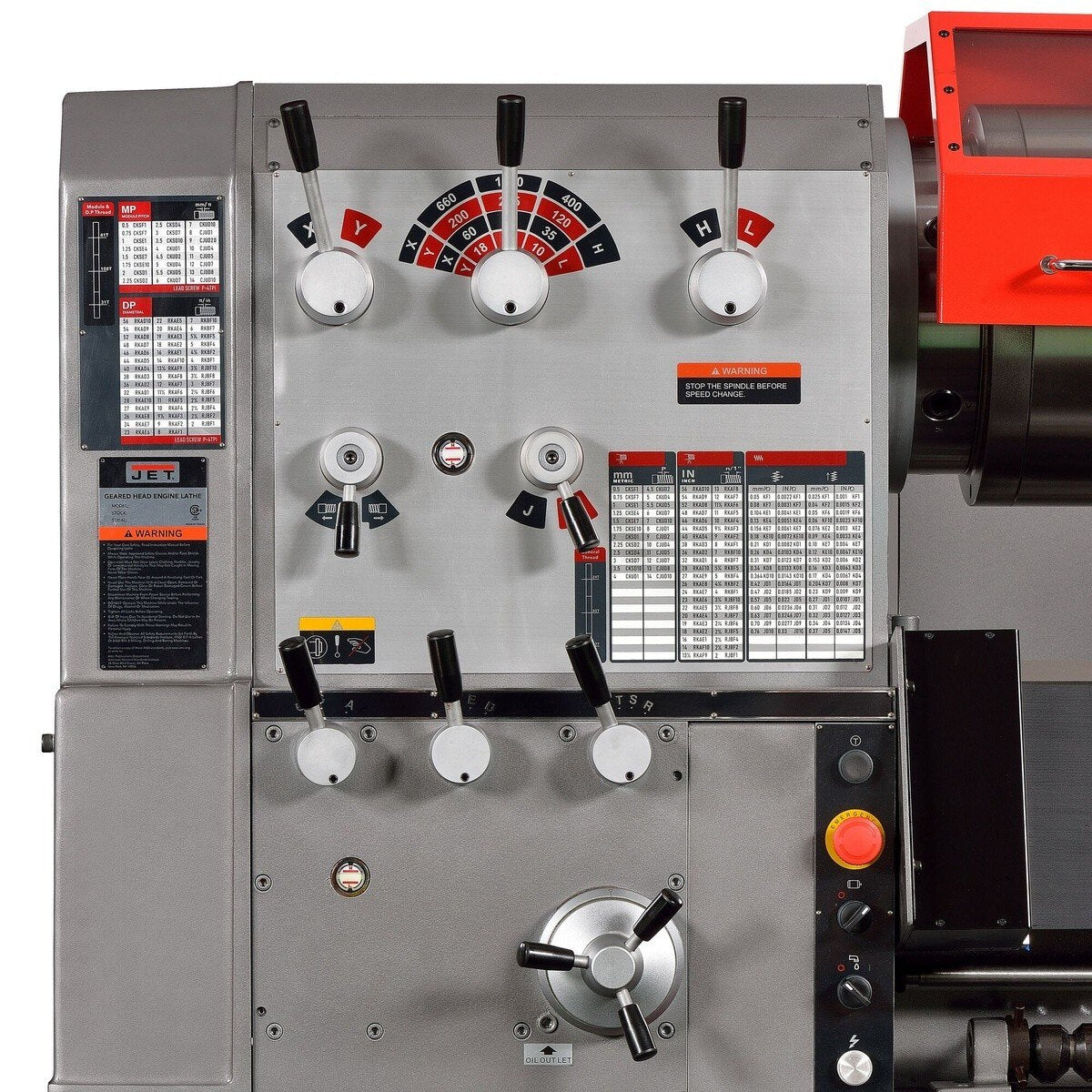

- Clutch-operated headstock with all gears hardened and ground
- Fully integrated coolant system for extended tooling life

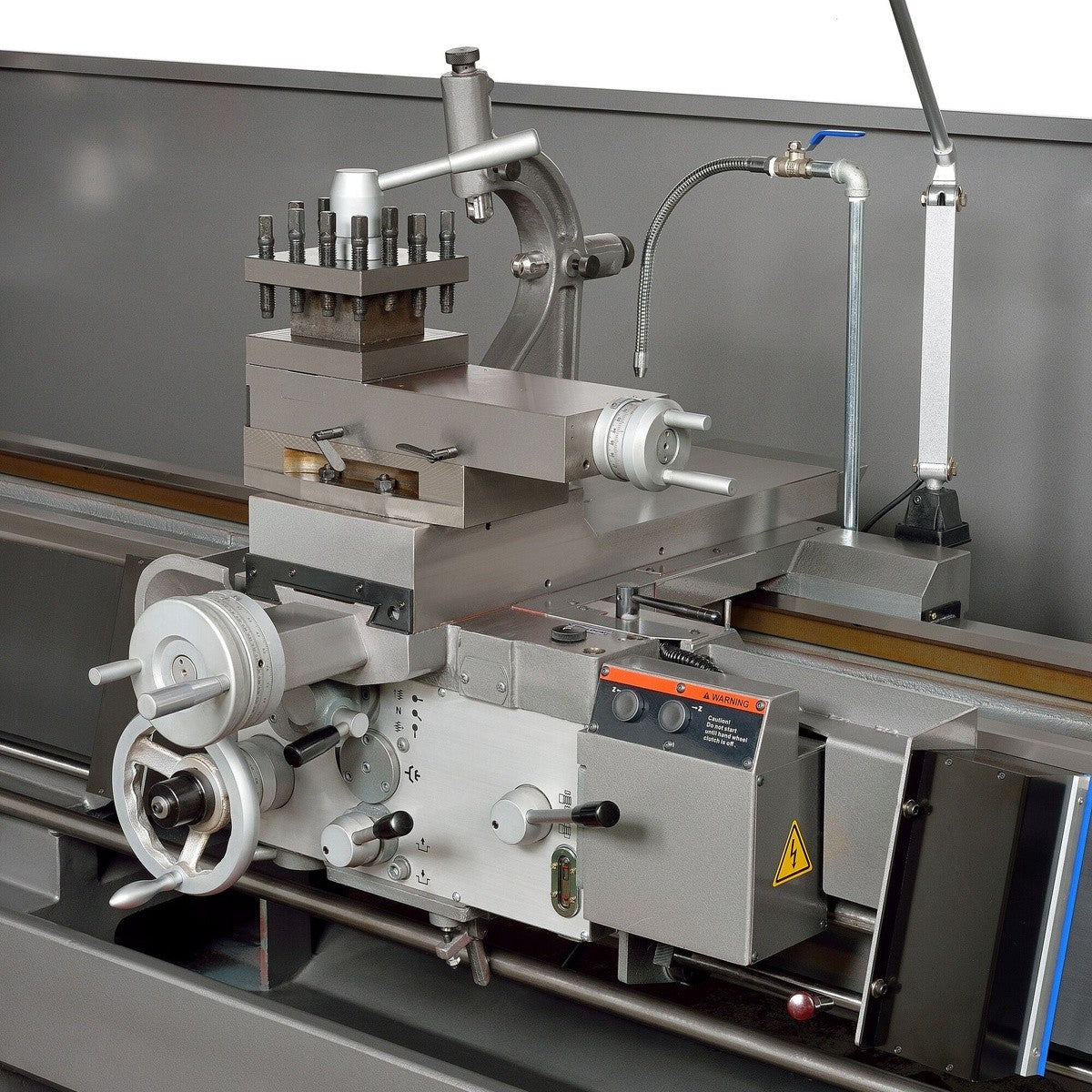

- Rapid power traverse to cross slide and carriage for increased productivity
- E-Stop on carriage for added operator safety
- Electronic chuck key holder for convenience and safety
- CNC-style full length worklight for enhanced visibility
- Full length splash guard for a cleaner work environment
- Standard leadscrew cover to protect leadscrew from debris and simplify cleanup
- Heavy-duty tailstock and quill for demanding applications
- Large easy-to-use foot brake for quick stops
- Fitted top mats to securely hold tooling in place
- Newall NMS800 Digital Readout (DRO) included
- 30-Point Inspection performed before shipping
- UL 987 Certified
- Backed by the JET 2-Year Warranty
JET GH-26130ZH Specifications
| Model Number | GH-26130ZH |
| Swing Over Bed | 26" |
| Swing Through Gap | 35" |
| Swing Over Cross Slide | 17-1/3" |
| Distance Between Centers | 132" |
| Center Height | 13" |
| Width of Bed | 15-3/4" |
| Spindle Bore | 4-1/2" |
| Spindle Mount | D1-11 |
| Spindle Taper | MT-7 |
| Spindle Taper With Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Speeds | 10-1000 RPM |
| Cross Slide Travel | 14-3/4" |
| Compound Slide Travel | 8" |
| Tailstock Spindle Travel | 6-1/2" |
| Taper in Tailstock Spindle | MT-5 |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Metric Threads | 0.5 - 14mm |
| Range of Cross Feeds | 0.001" - 0.0094" |
| Range of Longitudinal Feeds | 0.002" - 0.032" |
| Motor HP | 15 |
| Motor Phase | Three |
| Motor Voltage | 230/460V |
| Drive Type | Geared Head |
| Digital Readout (DRO) | Yes - Newall NMS800 |
| Assembled Dimensions (L x W x H) | 186.2" x 40.6" x 51.6" |
| Net Weight (lbs) | 7,937 |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
Toolup Part # :
862915
