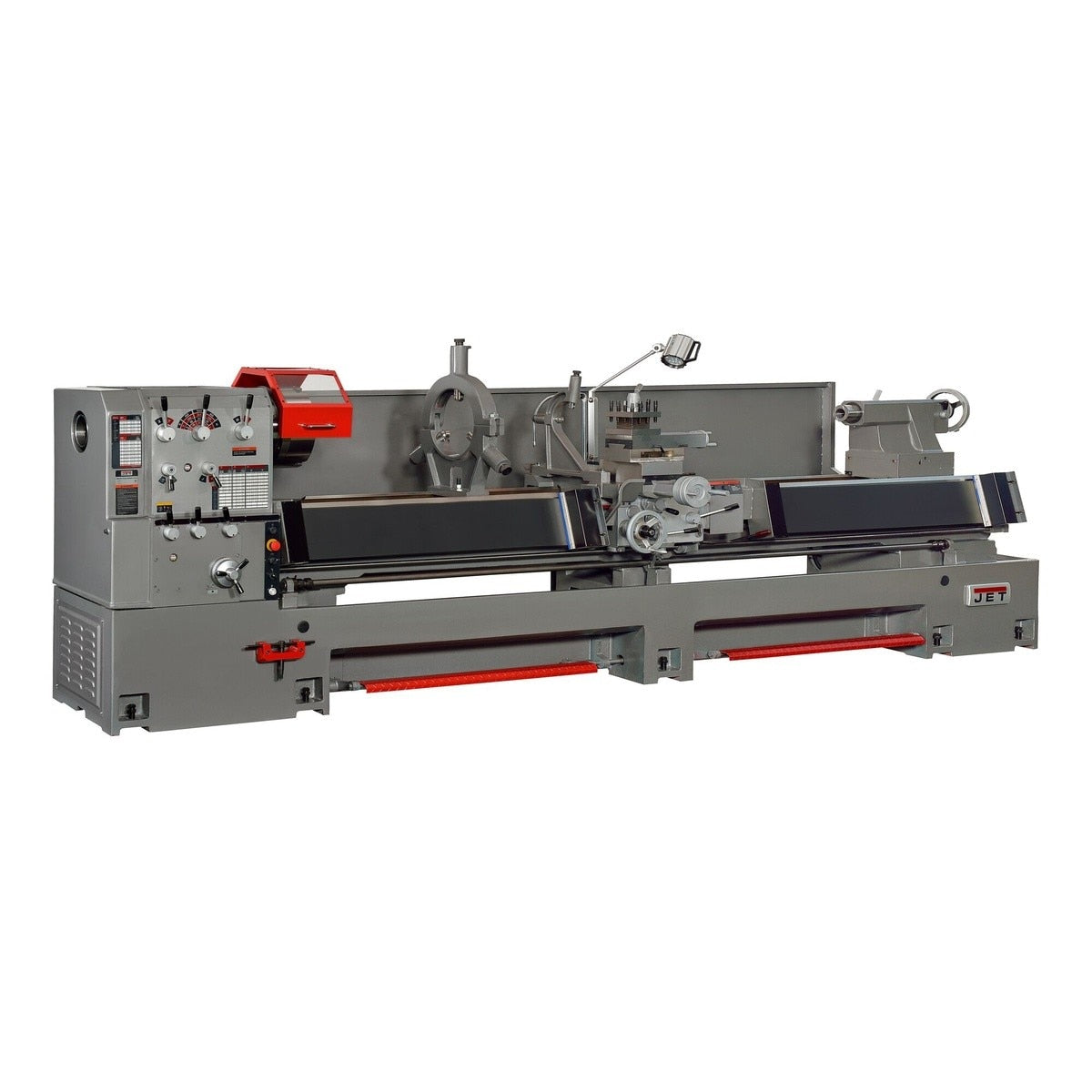

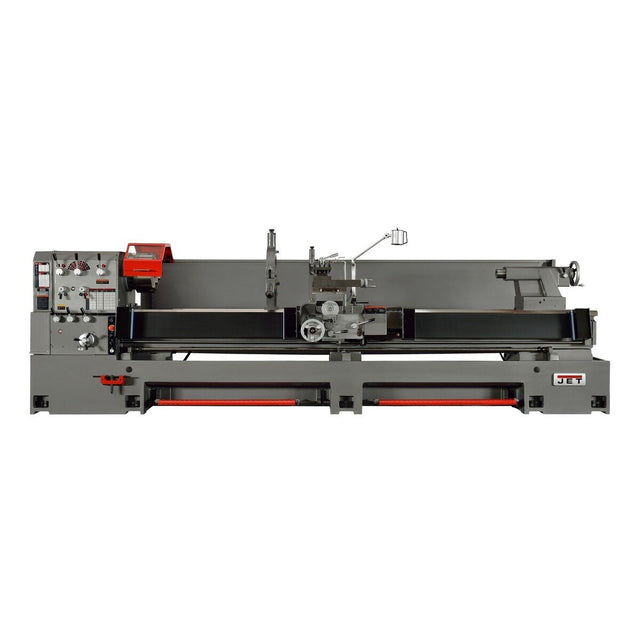

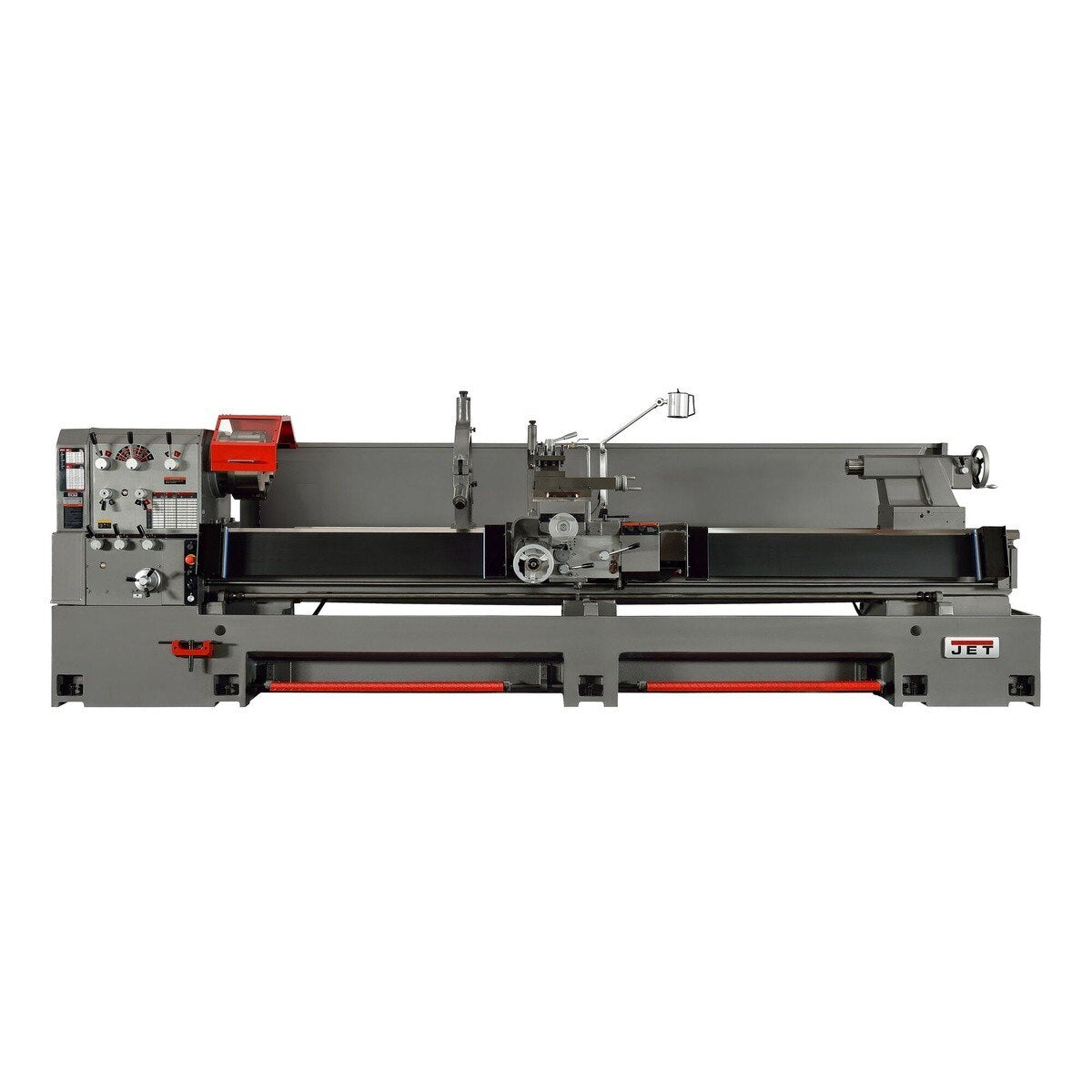

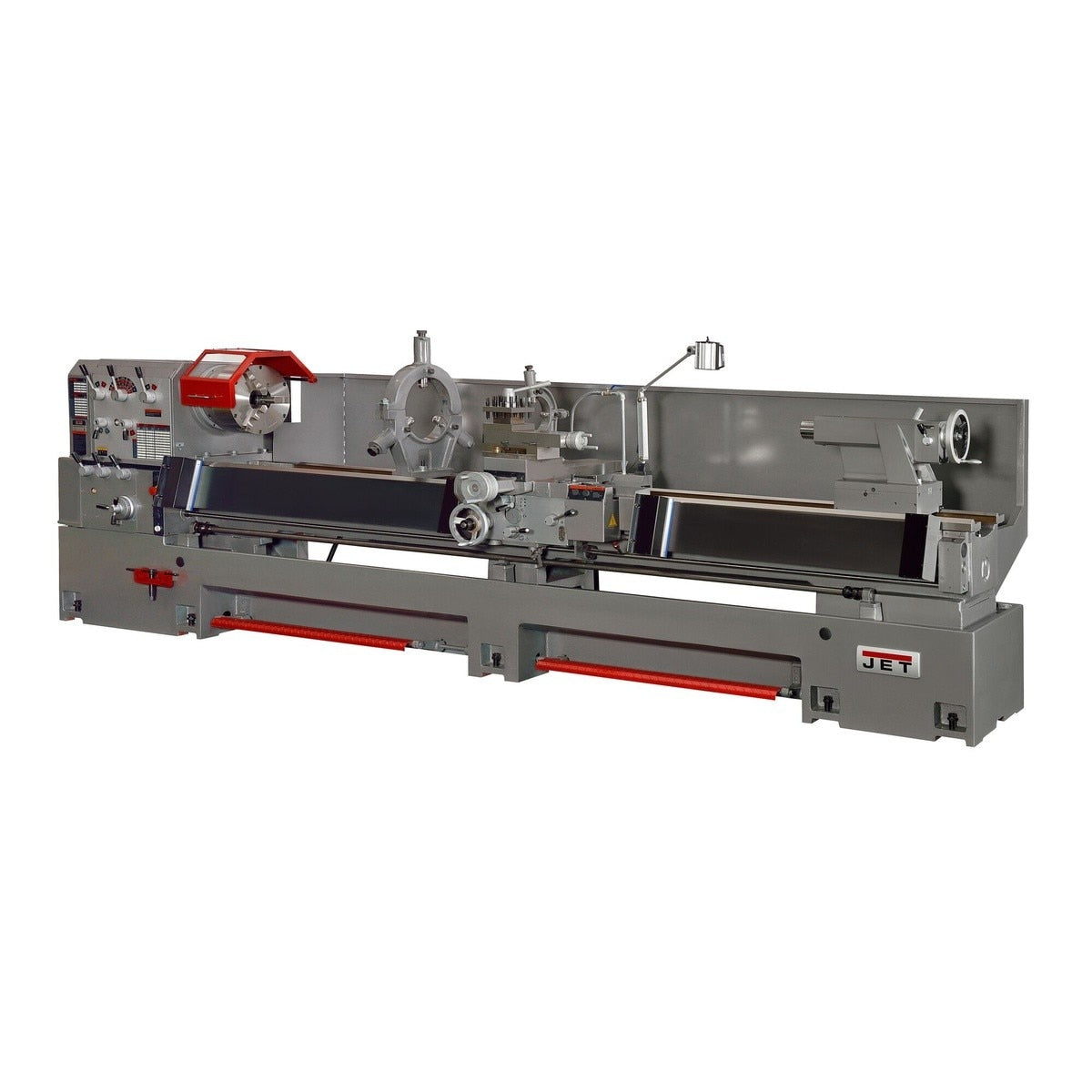

JET GH-26130ZH Description

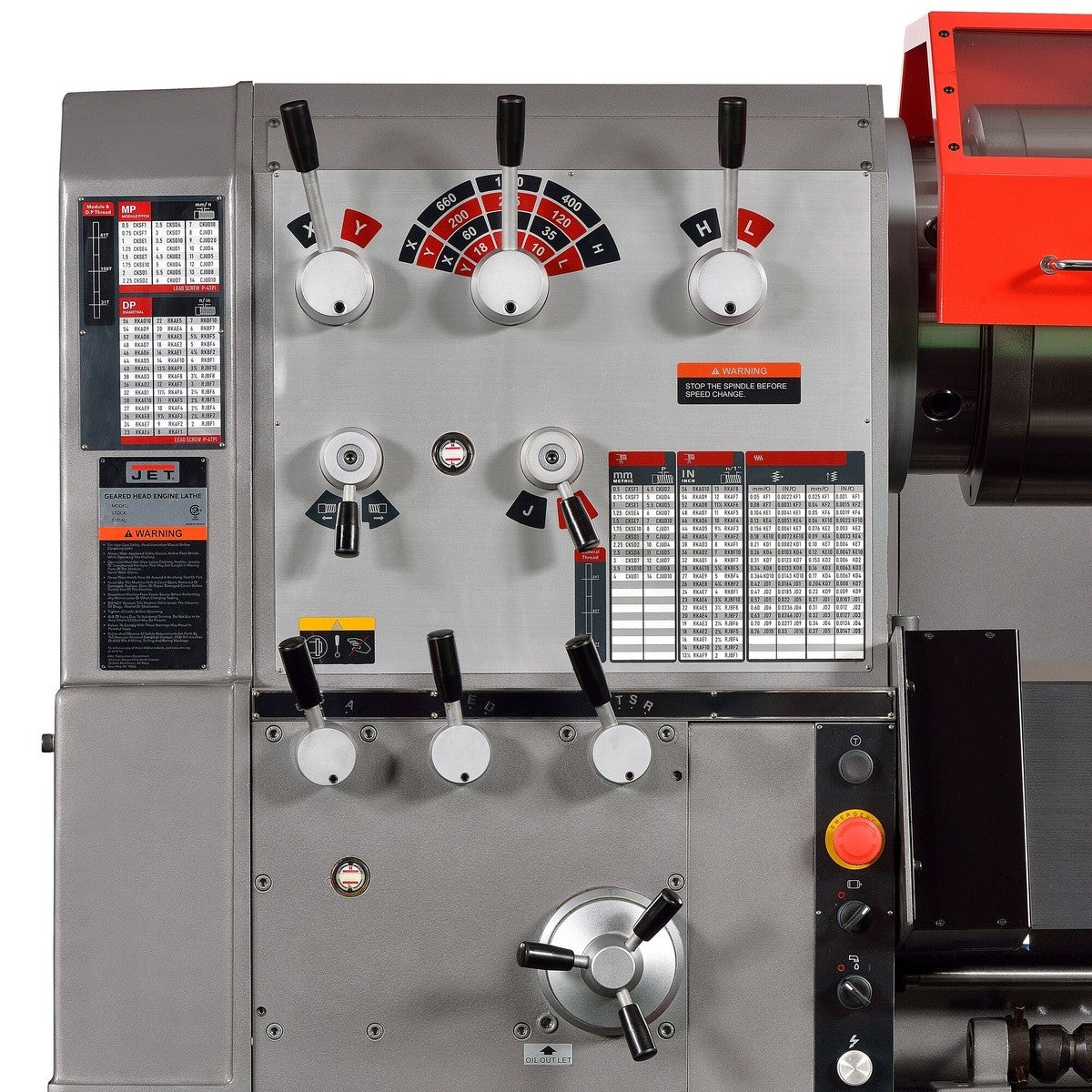

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2" Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
JET GH-26130ZH Includes
- (1) GH-26130ZH Large Spindle Bore Gear Head Lathe
- (1) Acu-Rite 203 Digital Readout (DRO)
- (1) Taper Attachment Kit
- (1) 3 Jaw Scroll Chuck with Top Reversing Jaws
- (1) Steady Rest with Roller Bearings
- (1) Follow Rest with Roller Bearings
- Change Gears for DP and MP Thread Cutting
JET GH-26130ZH Features
- Bed ways are induction hardened and ground for durability
- E-Stop on carriage for added safety
- Electronic chuck key holder
- Fitted top mats to hold tooling
- Full length splash guard
- CNC-style full length worklight
- Heavy-duty tailstock and quill
- Large easy-to-use foot brake

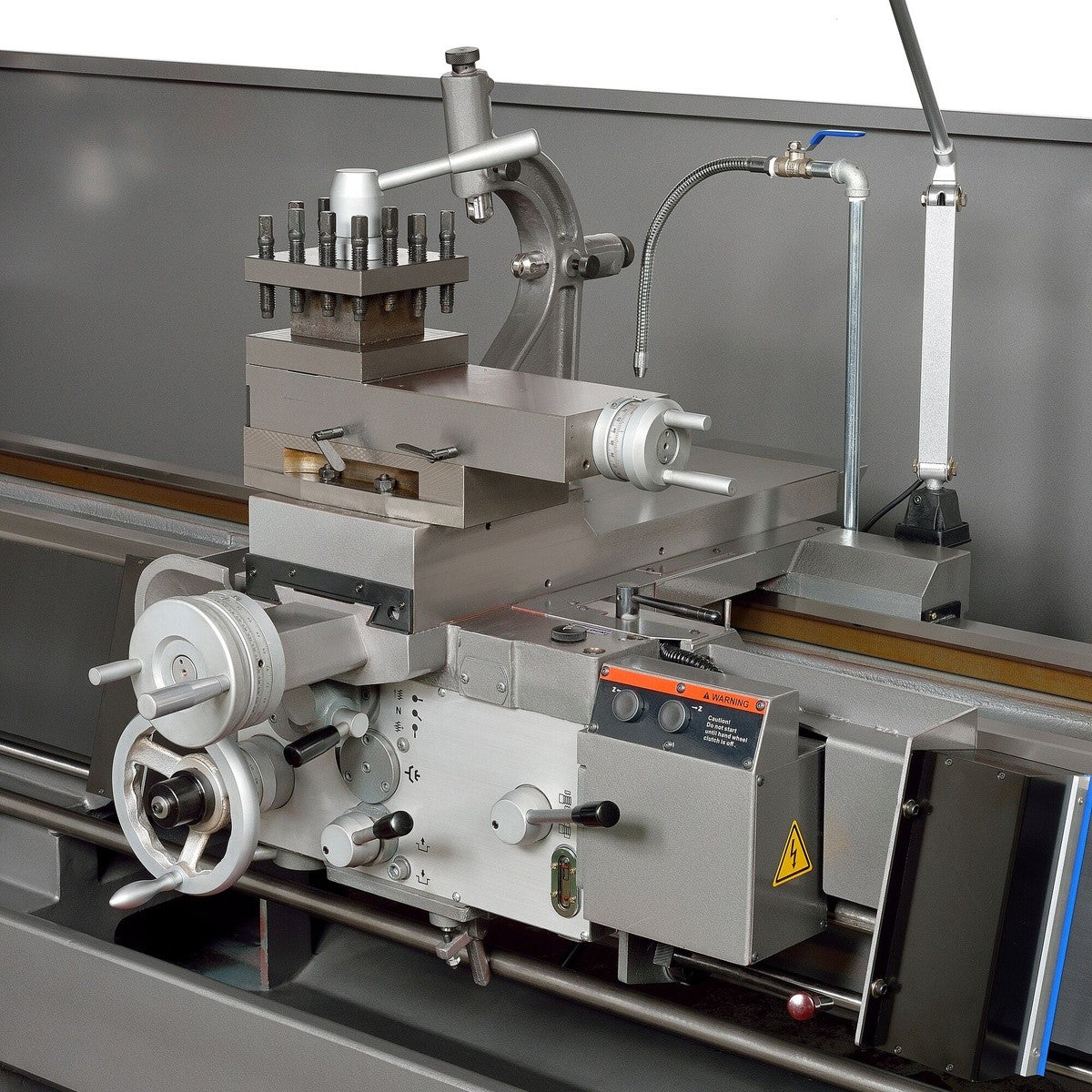

- Rapid power traverse to cross slide and carriage
- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- Includes change gears to allow user to cut DP and MP threads
- UL 987 Certified
JET GH-26130ZH Specifications
| Model Number | GH-26130ZH |
| Size | 26 x 130 |
| Style Type | Engine - Large Spindle Bore |
| Drive Type | Geared Head |
| Motor HP | 15 HP |
| Motor Phase | Three Phase |
| Motor Voltage | 230/460V |
| Swing Over Bed | 26" |
| Swing Through Gap | 35" |
| Swing Over Cross Slide | 17-1/3" |
| Distance Between Centers | 132" |
| Center Height | 13" |
| Width of Bed | 15-3/4" |
| Spindle Bore | 4-1/2" |
| Spindle Mount | D1-11 |
| Spindle Taper | MT-7 |
| Spindle Taper with Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Speeds | 10-1000 RPM |
| Cross Slide Travel | 14-3/4" |
| Compound Slide Travel | 8" |
| Tailstock Spindle Travel | 6-1/2" |
| Taper in Tailstock Spindle | MT-5 |
| Range of Longitudinal Feeds | 0.002" - 0.032" |
| Range of Cross Feeds | 0.001" - 0.0094" |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Metric Threads | 0.5 - 14mm |
| Digital Readout (DRO) | Yes (Acu-Rite 203) |
| 30 Point Inspection | Yes |
| Assembled Dimensions (L x W x H) | 186.2" x 40.6" x 51.6" |
| Net Weight | 7,937 lbs |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
Toolup Part # :
862918
