Jet | SKU:
JT9-101953

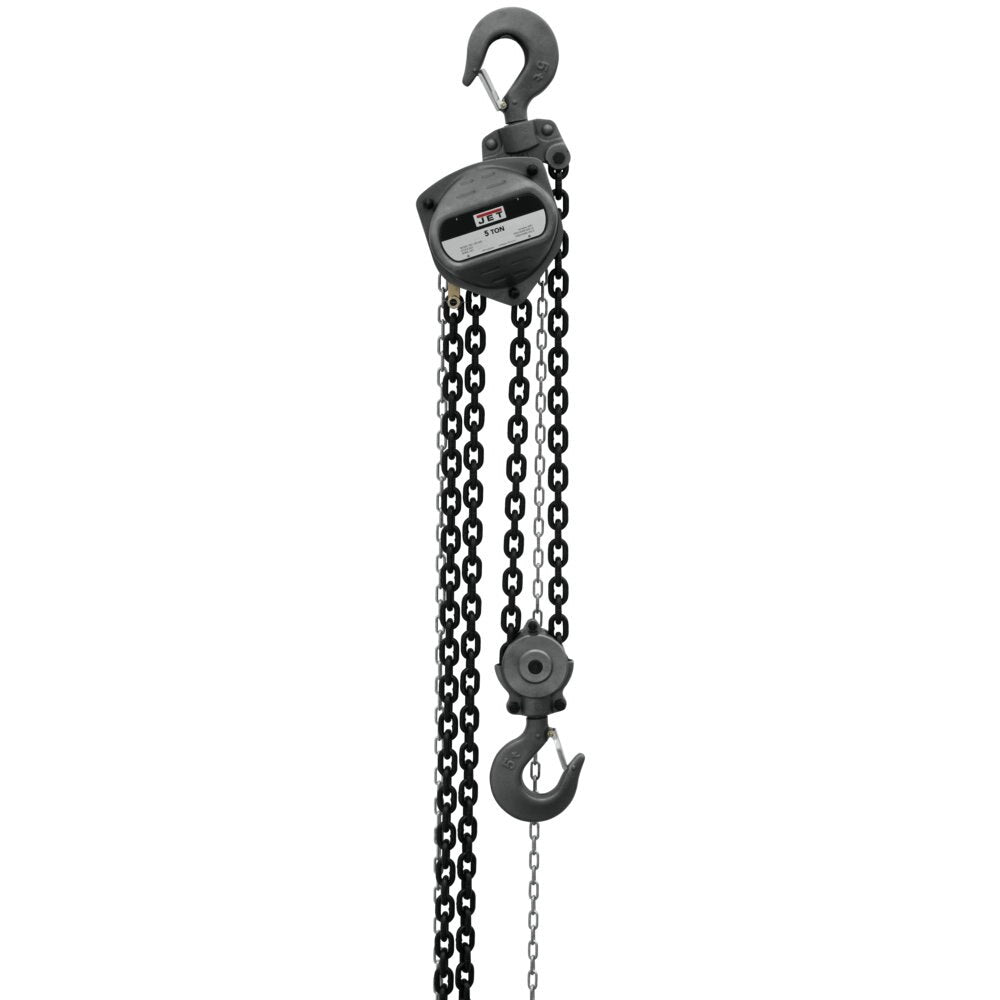

Jet JT9-101953 S90-500-30, 5-Ton Hand Chain Hoist With 30' Lift
$1,128.99
$1,730.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 101953 Description
JET® S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
Jet 101953 Features
- Safety
- Weston Style Dual Pawl Brake System- Double pawl design increases safety
- Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Durability
- Needle Bearing Design- Promotes long hoist life with low wear reducing downtime
- Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- All Steel Construction- Impact resistant covers that provide durability and protection
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
- Standards
Jet 101953 Specifications
| Hand Chain Overhaul (Ft.) to Lift Load 1Ft. | 178 |
| Overload Protection | No |
| Hand Chain Pull Force (LBF) to Move Load | 90 |
| Headroom (In.) | 23-1/2 |
| Lift (Ft.) | 30 |
| Number of Falls | 2 |
| Load Capacity (Tons) | 5 |
| Load Chain Dimensions (Mm.) | 10 x 30 |
| Weight (Lbs.) | 194 |
