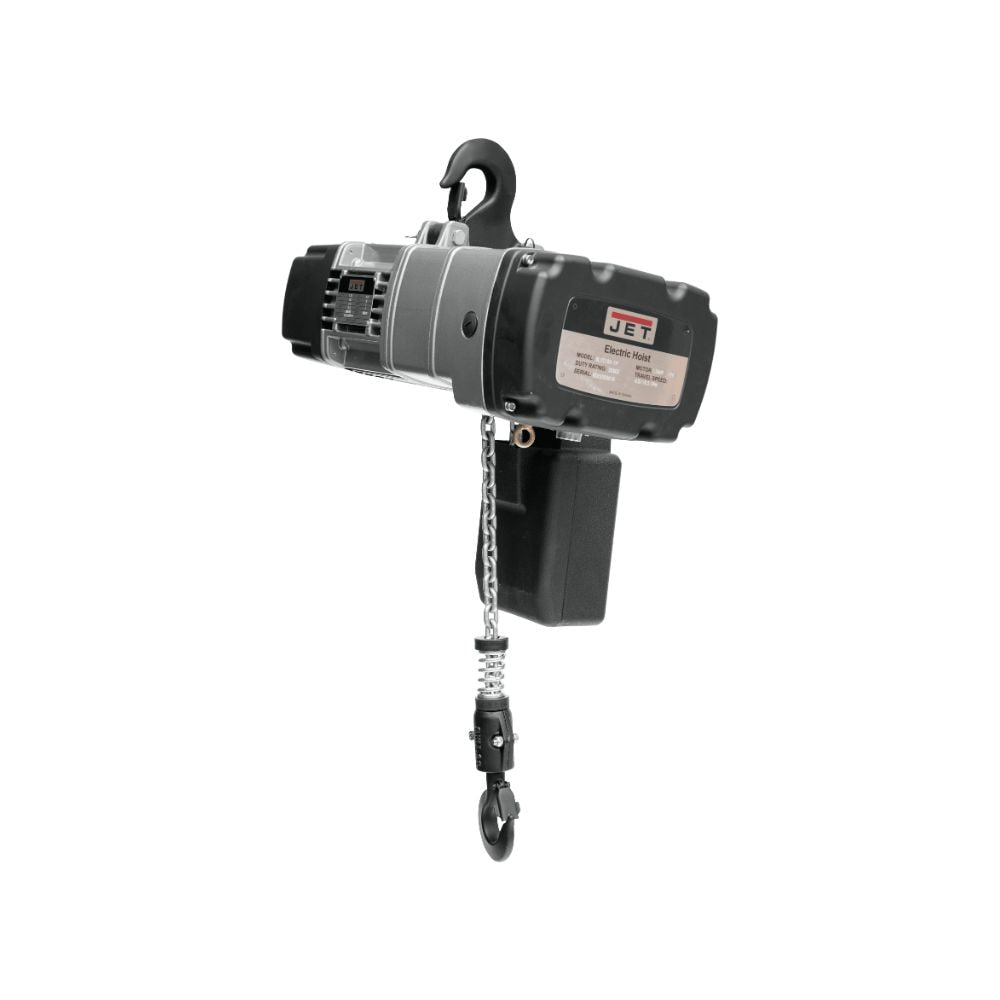

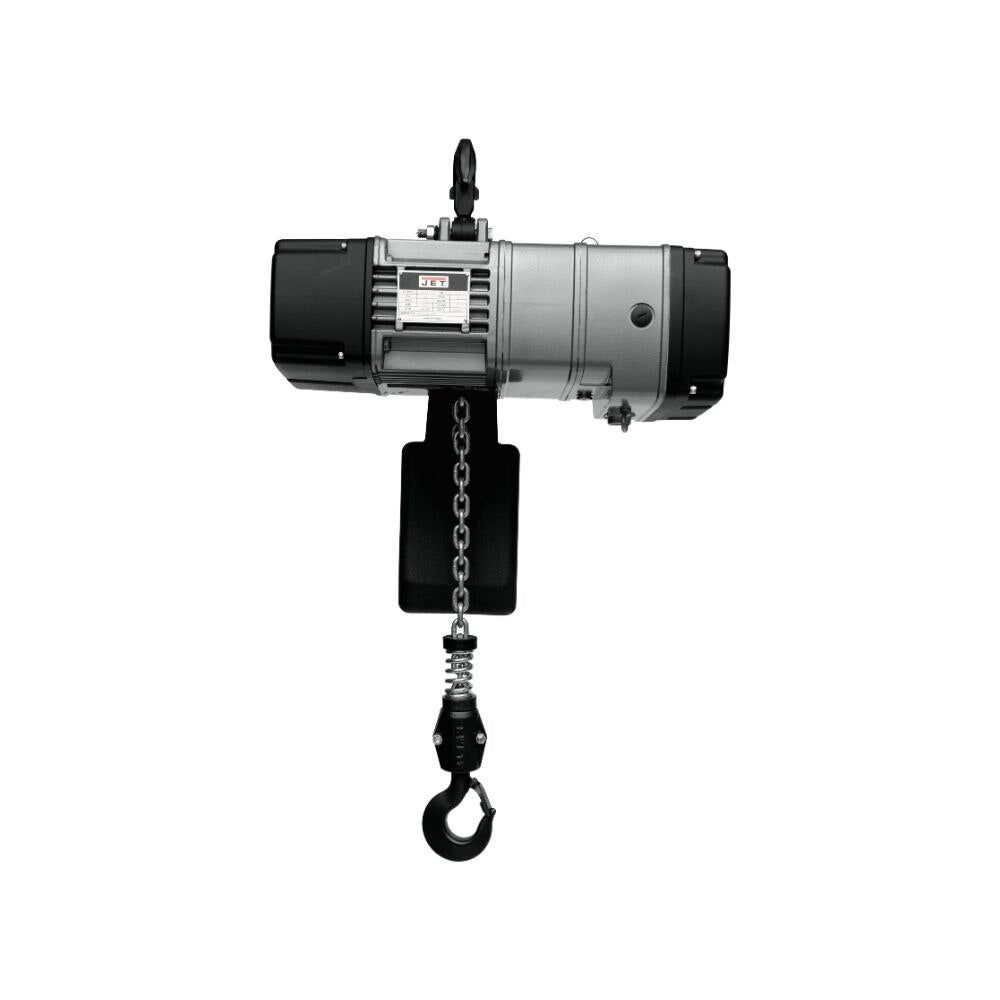

Jet JT9-104046 BLVS200-020 2T Electric Hoist 20' Lift 1 PH
Description
Description
Jet JT9-104046 Description
JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).
Jet JT9-104046 Includes
- (1) 2-Ton Electric Chain Hoist
Jet JT9-104046 Features

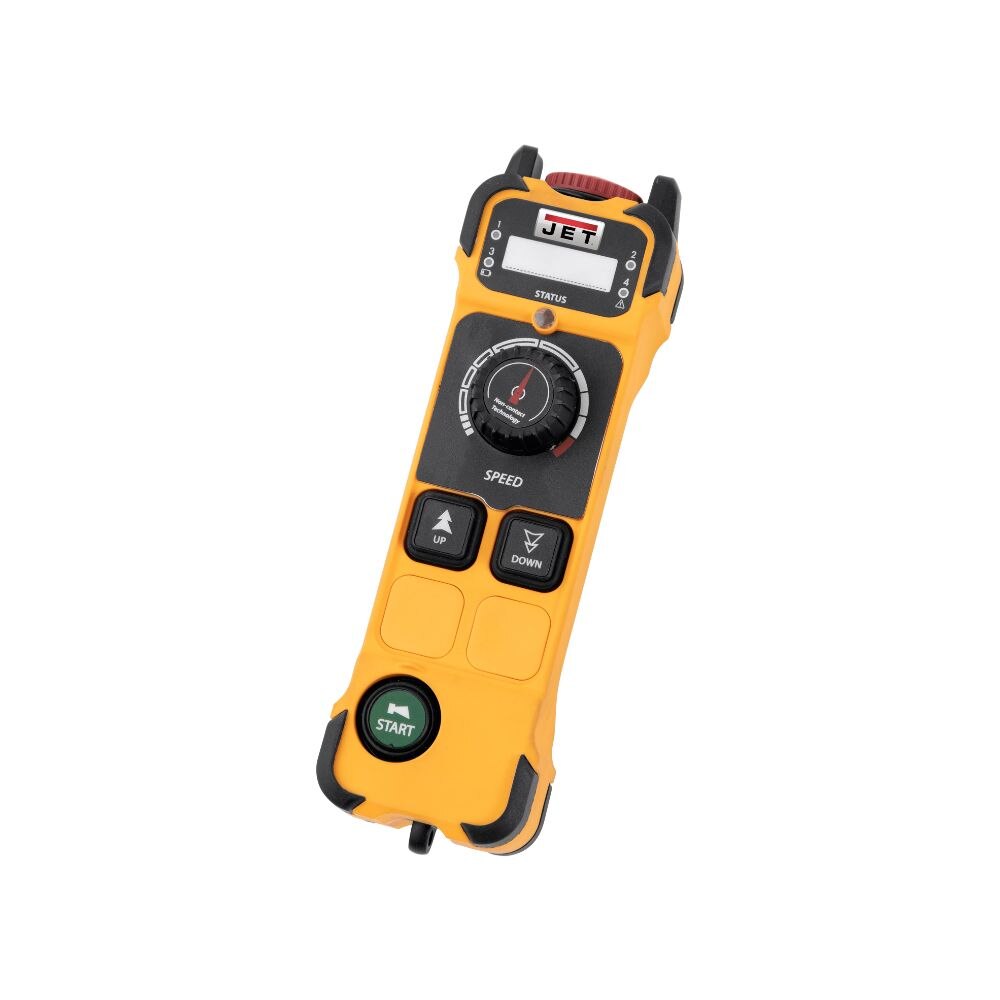

- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
- Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
- 30 / 7.5 Time ratings
- TAA Approved
Jet JT9-104046 Specifications
| Capacity | 4400 lbs |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H3 |
| Lift | 20' |
| Lifting Speed (FPM) | 0-2.2 / 9 |
| Load Capacity (Tons) | 2 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 30/7.5 |
| Motor (HP) | 1.33HP, 110V 60Hz |
| Headroom | 24-1/2" |
| Overall Width | 14-1/2" |
| Motor Current | 15A |
