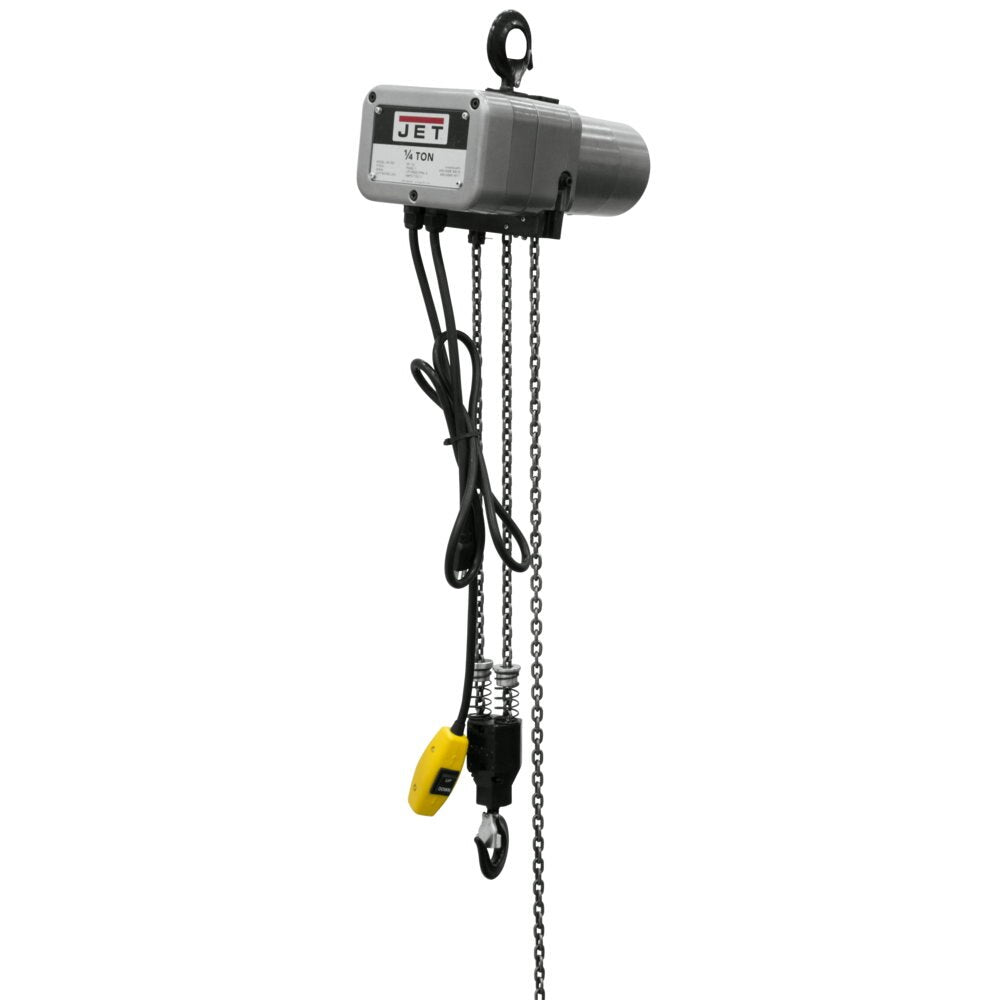

Jet JT9-110110 JSH-550-10 1/4-Ton Electric Chain Hoist 1-Phase 10' Lift
Description
Description
Jet 110110 Description
JET® JSH Series electric hoists combines safety, durability and portability to operate in light duty commercial and industrial applications. The die cast Aluminum housing keeps the hoist lightweight and easily portable. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They have a built-in thermal overload protection system that keeps the hoist from overheating. The industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. The maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. The JET® JSH Series electric hoist is available in 1/8 ton and 1/4 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).
Jet 110110 Features
- SAFETY
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
- Thermal Overload Protection- A Safety switch that keeps the hoist from overheating in low voltage situations
- Magnetic Disk Brake- An Industry proven safety feature that ensures rapid stops and securing of the load
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- Performance
- Single Phase:
- Duty Rating- H3
- Duty Cycle- 25%
- Durability
Jet 110110 Specifications
| Headroom (In.) | 17-1/10 |
| Lift (Ft.) | 10 |
| Number of Falls | 2 |
| Motor Power (HP) | 1/6 |
| Lifting Speed (FPM) | 8 |
| Duty Cycle (%) | 25 |
| Load Chain Dimensions (Mm.) | 4 x 12 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115 |
| Load Capacity (Tons) | 1/4 |
| Duty Cycle Rating | H3 |
