Jet | SKU:
JT9-202750

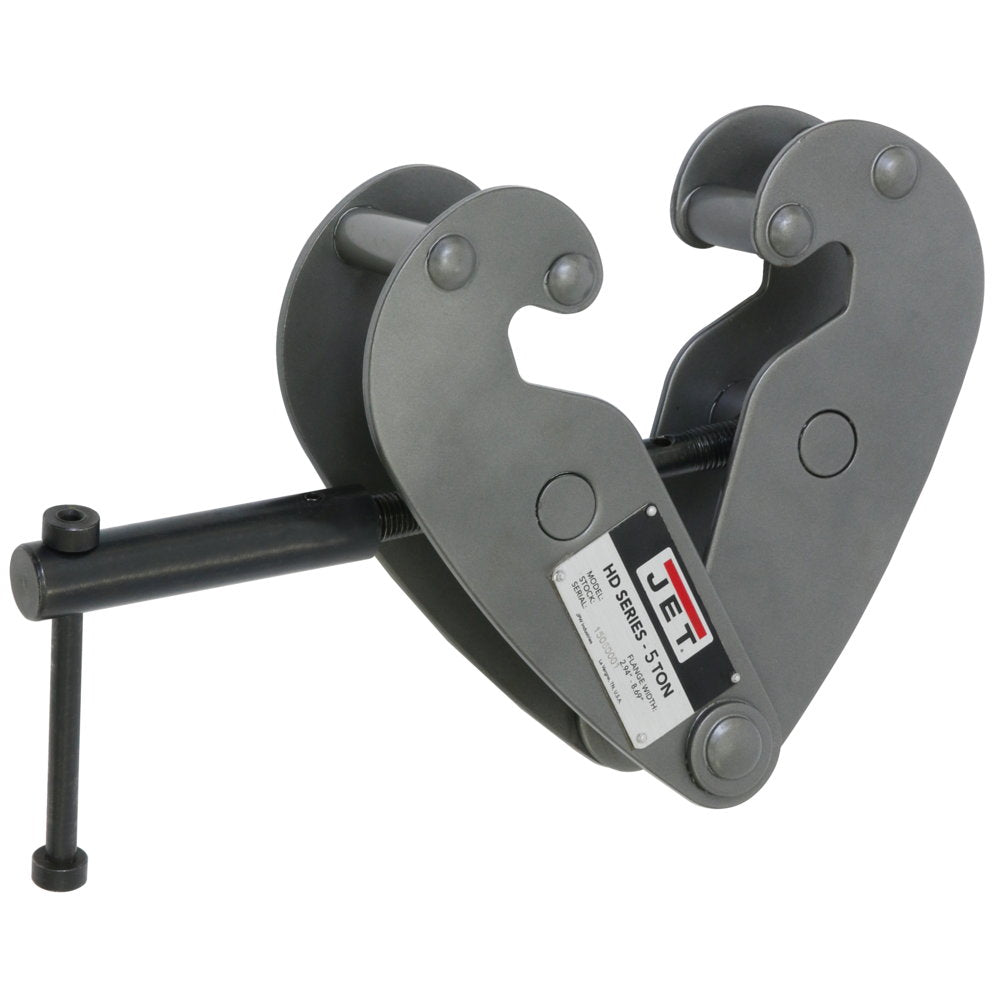

Jet JT9-202750 HD Series 5-Ton Heavy-Duty Wide Beam Clamp
$175.44
$276.00
Unit price
/
Unavailable
Description
Description
Jet 202750 Description
JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.
Jet 202750 Features
- Durability
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
- Used for quick mounting of a hoist or for lifting a broad range of beams up to 12-3/5 inches wide for increased versatility
- Standards
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Certification- Load tested to 125% of capacity with certificate
Jet 202750 Specifications
| Load Capacity (Metric Tons) | 5 |
| Capacity (Lbs.) | 11,000 |
| Weight (Lbs.) | 24 |
| Maximum Beam Flange Width (In.) | 12-3/5 |
| Minimum Beam Flange Width (In.) | 3-1/7 |
| Load Capacity (Tons) | 5 |
