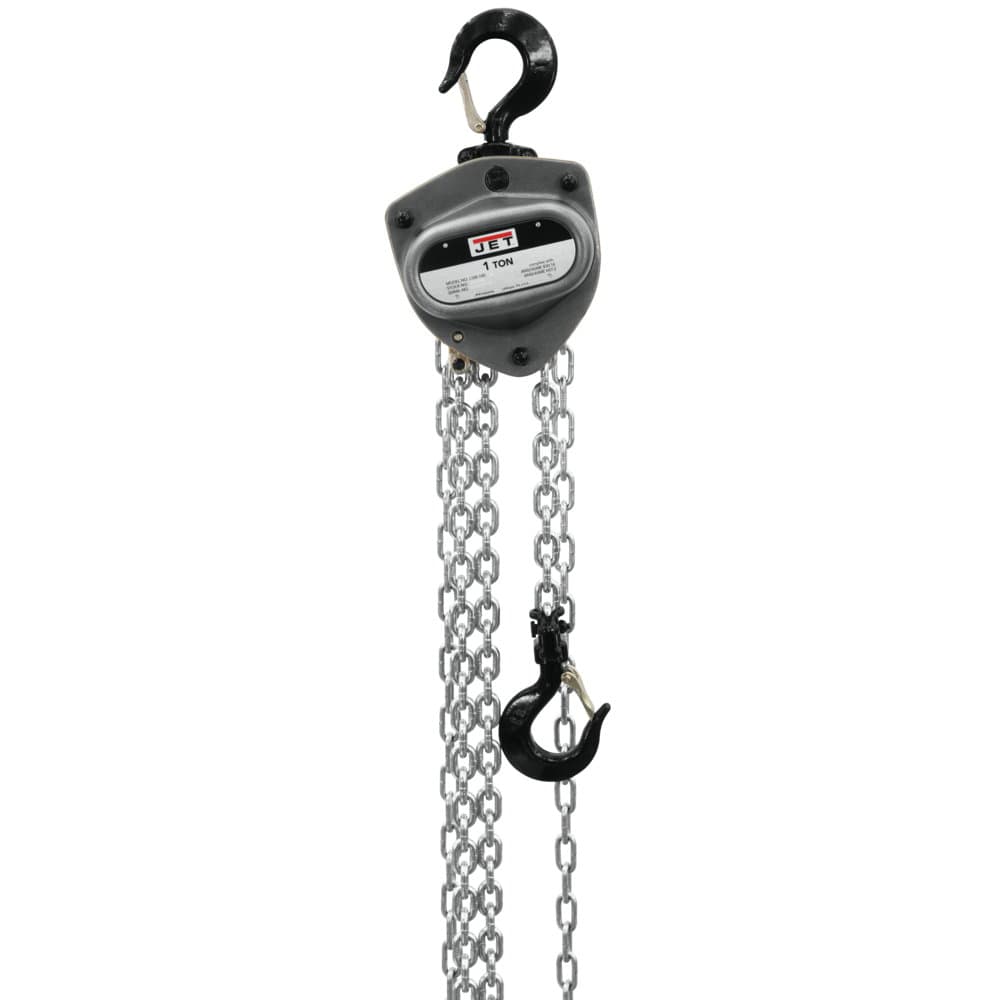

Jet JT9-203115 L-100-100WO-15 1-Ton Hand Chain Hoist 15' Lift, Overload Protection
Description
Description
Jet 203115 Description
JET® L-100 Series hand chain hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as optional overload protection prevents the hoist from lifting damaging loads beyond its rated capacity. The JET® exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET® is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET® L-100 is available in ¼ ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET® L-100 Series hand chain hoist is engineered to perform.
Jet 203115 Features
- Safety
- Patented Fused Brake Design- Proven durability that increases safety with a lifetime replacement warranty
- Overload Protection- Slip clutch design increases safety by preventing lifting or pulling damaging loads
- Weston Style Dual Pawl Brake System- Double pawl design increases safety
- Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Durability
- Sealed Ball Bearing Design- Increases efficiency and promotes smooth operation
- Cast Steel Safety Latches- Increased durability with heavy duty safety latches secured with Allen screws and lock nuts
- Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 100 Load Chain- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
Jet 203115 Specifications
| Hand Chain Overhaul (Ft.) to Lift Load 1Ft. | 43 |
| Overload Protection | Yes |
| Hand Chain Pull Force (LBF) to Move Load | 64 |
| Headroom (In.) | 11-5/8 |
| Lift (Ft.) | 15 |
| Number of Falls | 1 |
| Load Capacity (Tons) | 1 |
| Load Chain Dimensions (Mm.) | 6.3 x 19 |
| Weight (Lbs.) | 33 |
