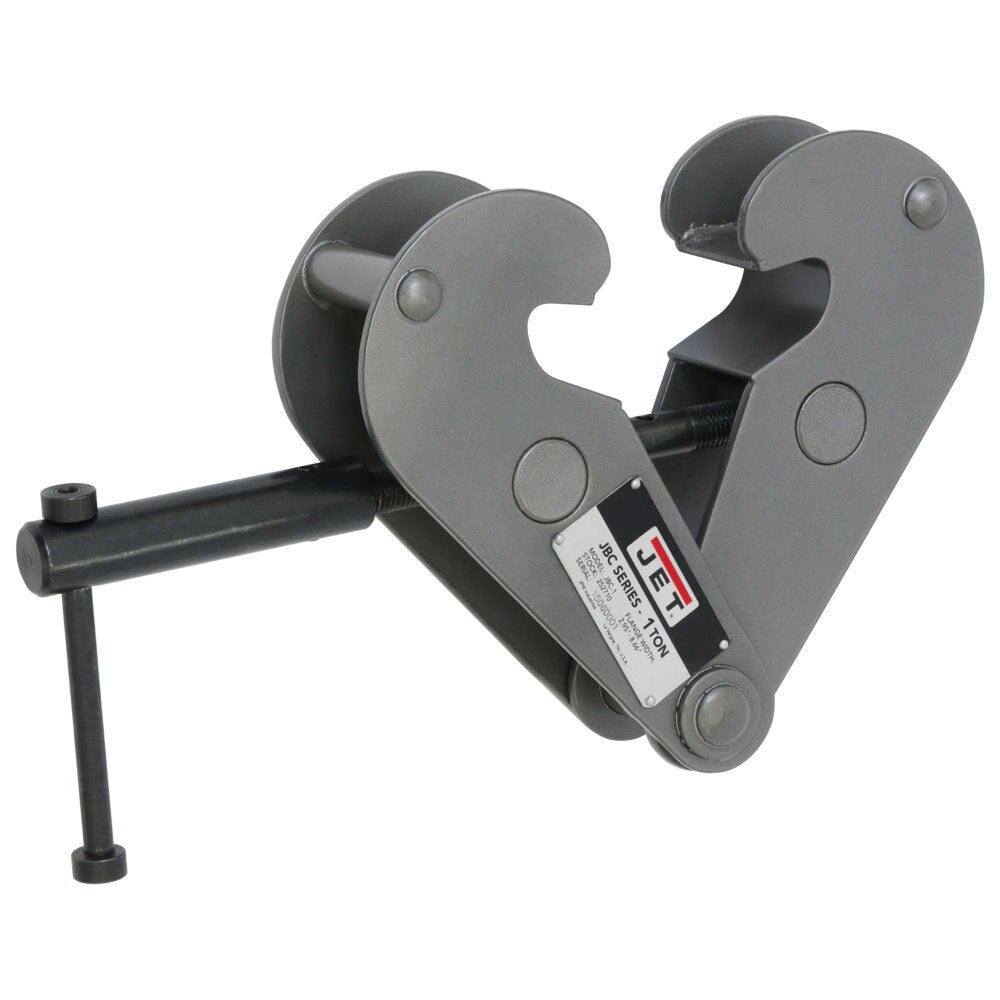

Jet JT9-252710 JBC-1, 1-Ton Beam Clamp
$126.99
$190.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 252710 Description
JET JBC Series features a more robust construction for increased durability and longer life in demanding industrial environments. The JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams.
Jet 252710 Features
- Durability
- Robust construction for increased durability and longer life in demanding industrial environments
- Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure
- Larger, thicker diameter pins for increased durability and life
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
- Used for quick mounting of a hoist or for lifting a broad range of beams up to 10-5/8 inches wide for increased versatility
- Standards
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Certification- Load tested to 125% of capacity with certificate
Jet 252710 Specifications
| Load Capacity (Metric Tons) | 1 |
| Capacity (Lbs.) | 2,200 |
| Weight (Lbs.) | 12 |
| Maximum Beam Flange Width (In.) | 8-2/3 |
| Minimum Beam Flange Width (In.) | 3 |
| Load Capacity (Tons) | 1 |
