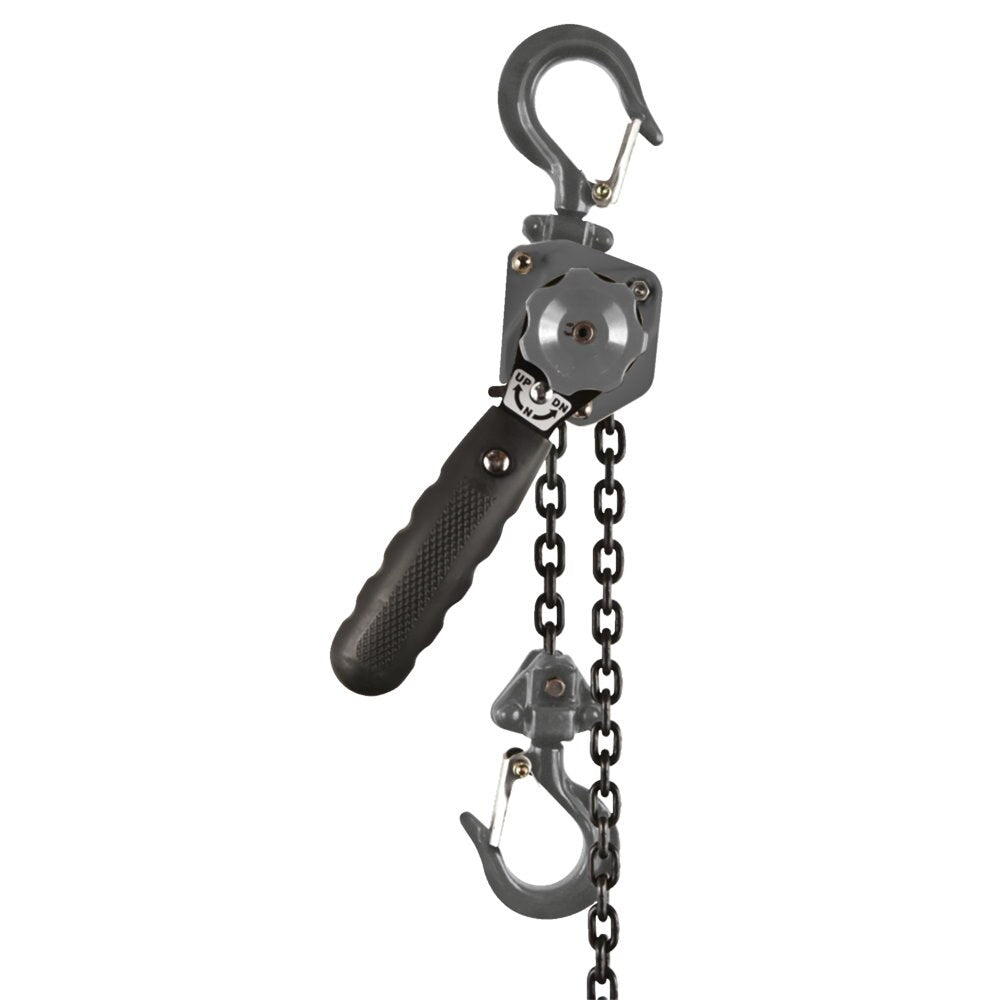

Jet JT9-287200 JLP-050A-5 1/2T Mini-Puller 5' Lift
Description
Description
Jet 287200 Description
JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
Jet 287200 Features
- Safety
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Durability
- Cast steel safety latches are secured with Allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
- Standards
Jet 287200 Specifications
| Number of Falls | 1 |
| Lift per Turn (In.) | 2-5/6 |
| Load Capacity (Tons) | 1/2 |
| Load Chain Dimensions (Mm.) | 4.3 x 12 |
| Lever Pull Force (LBF) | 86 |
| Weight (Lbs.) | 8 |
| Ship Yard Hooks | SV_1375591258806 |
| Lift (Ft.) | 5 |
| Headroom (In.) | 10 |
| Handle Length (In.) | 8-1/2 |
| Overload Protection | No |
| Hook Throat Opening (In.) | 1-3/8 |
| Overall Width (In.) | 3-3/4 |
