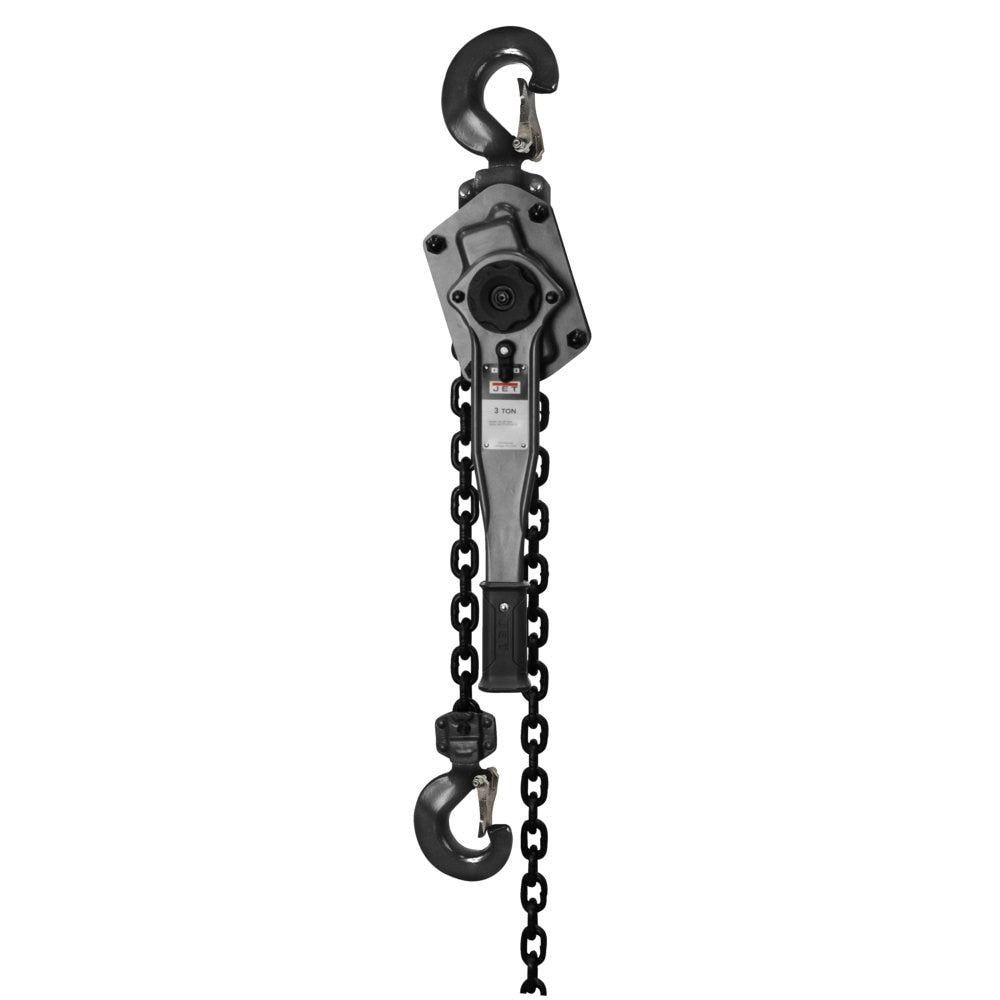

Jet JT9-287802 JLP-300A-15SH 3T Lever Hoist 15' Lift, Ship Hooks
Description
Description
Jet 287802 Description
JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
Jet 287802 Features
- Safety
- Patented brake wear indicator provides visual indication when to replace worn friction disks
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Blunt tip, point loading Shipyard hooks virtually eliminate stretched hooks, reducing downtime for maintenance and repair
- Durability
- Cast steel safety latches are secured with Allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
Jet 287802 Specifications
| Number of Falls | 1 |
| Lift per Turn (In.) | 2/3 |
| Load Capacity (Tons) | 3 |
| Load Chain Dimensions (Mm.) | 10 x 30 |
| Lever Pull Force (LBF) | 71 |
| Weight (Lbs.) | 57 |
| Ship Yard Hooks | SV_1375591258807 |
| Lift (Ft.) | 15 |
| Headroom (In.) | 18-8/9 |
| Handle Length (In.) | 16-1/7 |
| Overload Protection | No |
| Hook Throat Opening (In.) | 2-1/2 |
| Overall Width (In.) | 7-7/8 |
