Jet | SKU:
JT9-311445

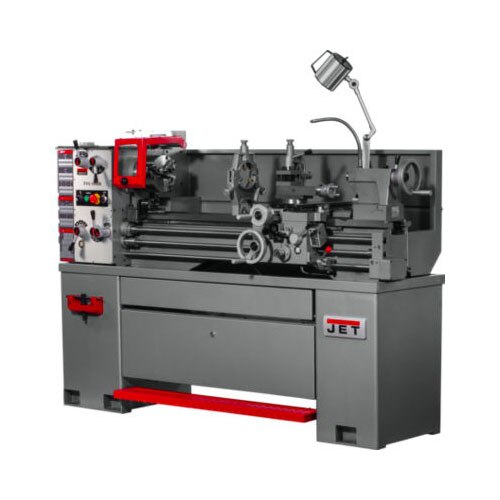

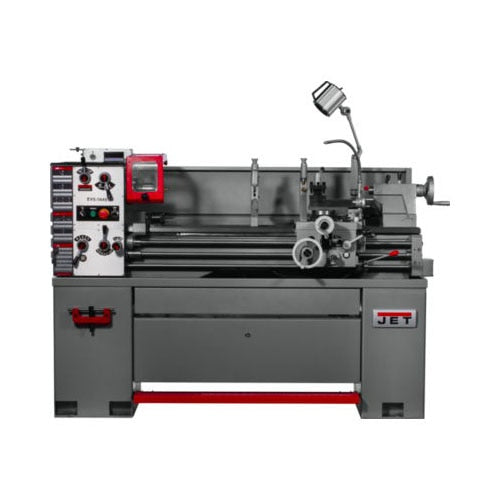

Jet JT9-311445 EVS Lathe with Acu-Rite 203 DRO and Taper Attachment, 3HP
Free Shipping
$22,679.00
$26,360.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 311445 Description
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPMs
Jet 311445 Includes
- (1) EVS Lathe with Acu-Rite 203 DRO and Taper Attachment, 3HP
Jet 311445 Features
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts are utilized

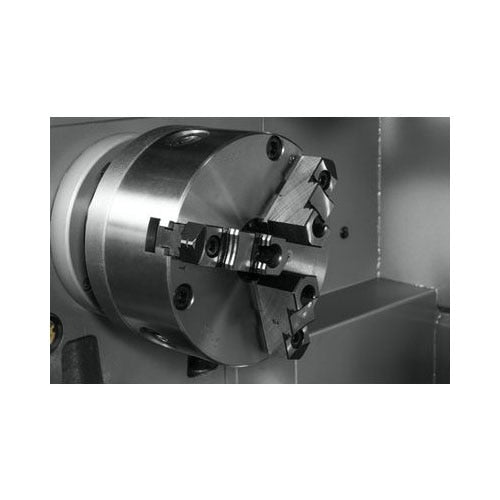

- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent leadscrew and feed rod
- Adjustable gibs are incorporated in the carriage and slideways
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
- Meehanite castings retain their tolerance and remain rigid through many years of machining
- Safety on/off switch
- Emergency Stop within easy reach of the Operator
- Electronic Chuck Key Docking Station
- Chuck Guard

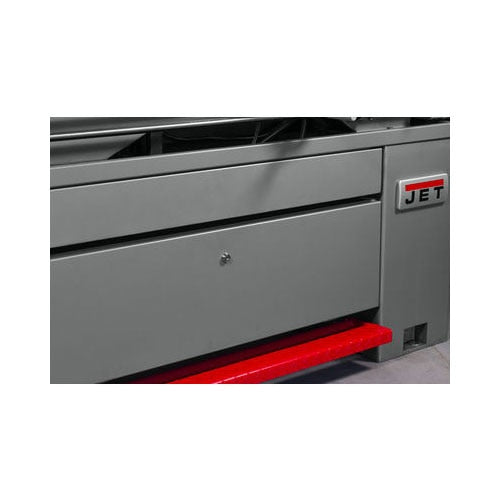

- Foot Brake

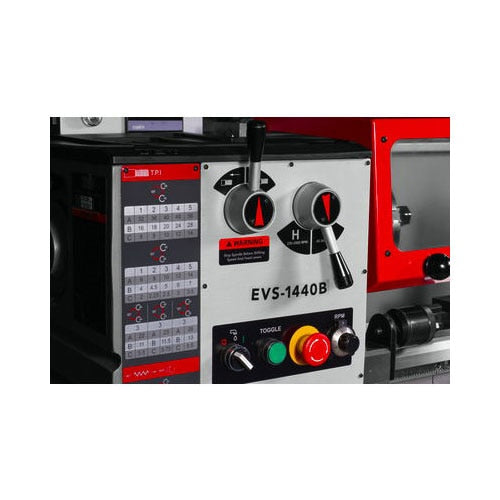

- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 220-2000 RPM

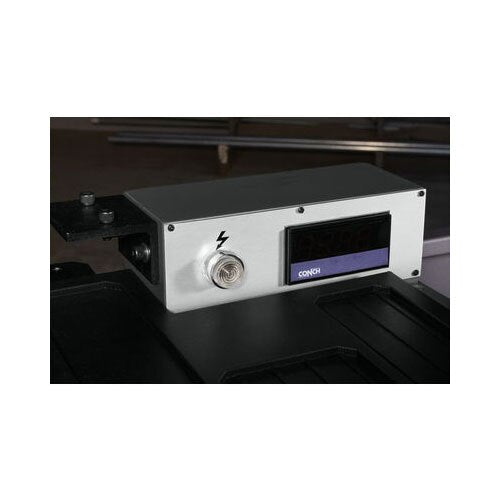

- LED RPM readout allows for precise turning speeds

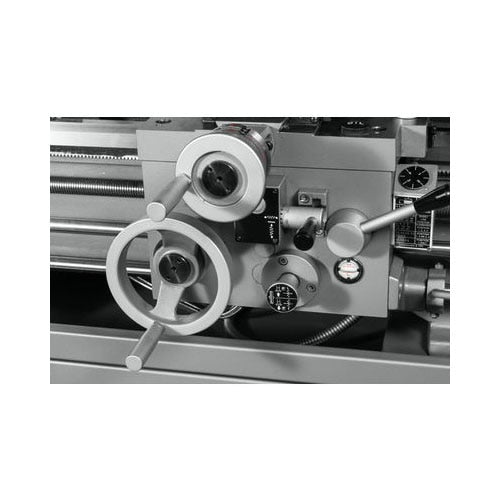

- Spindle actuation control is apron mounted
- Gap bed section provided for larger diameter work

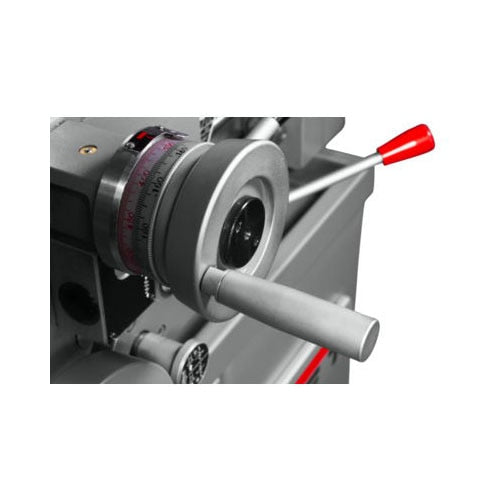

- Compound and cross slide have backlash elimination
- Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
Jet 311445 Specifications
| Digital Readout | Acu-Rite 203 |
| Accessory 1 | Taper Attachment |
| Swing Over Bed | 4" |
| Swing Over Cross Slide | 9-1/16" |
| Swing Through Gap | 19- 1/2" |
| Length of Gap | 9-1/2" |
| Distance Between Centers | 40" |
| Spindle Bore | 1-1/2" |
| Spindle Mount | D1-4 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds | 40-2000 RPM |
| Spindle Taper with Sleeve | MT-5 |
| Number of Longitudinal and Cross Feed rates | 25 |
| Range of Longitudinal Feeds | 0.0016-0.046 IPR |
| Number of Inch Treads | 34 |
| Range of Inch Threads | 2-56 TPI |
| Number of Metric Threads | 34 |
| Range of Metric Threads | 0.5-12 |
| Max Tool Size | 3/4 X 3/4" |
| Compound Slide Travel | 3-1/2" |
