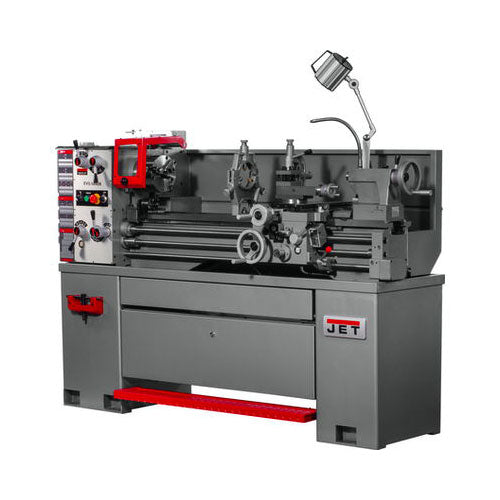

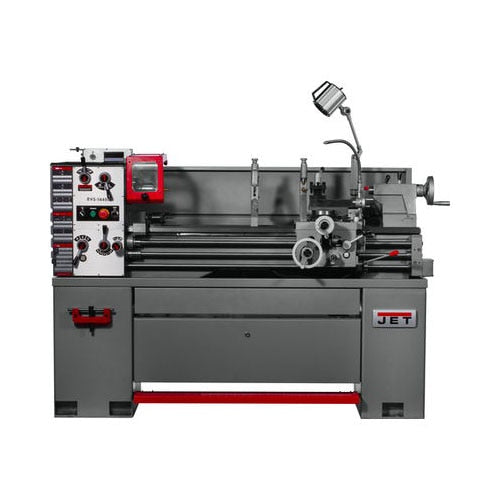

Jet JT9-311446 EVS Lathe with Acu-Rite 203 DRO and Collet Closer, 3HP

Free Shipping
$20,799.00 $24,465.71

Description

Jet 311446 Description

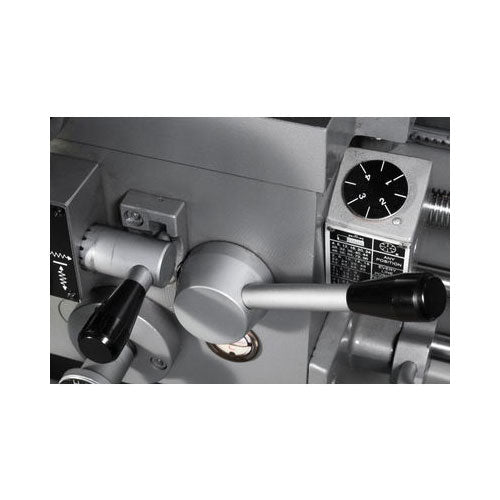

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPMs

Jet 311446 Includes

  • (1) EVS Lathe with Acu-Rite 203 DRO and Collet Closer, 3HP

Jet 311446 Features

  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent leadscrew and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
  • Meehanite castings retain their tolerance and remain rigid through many years of machining
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator

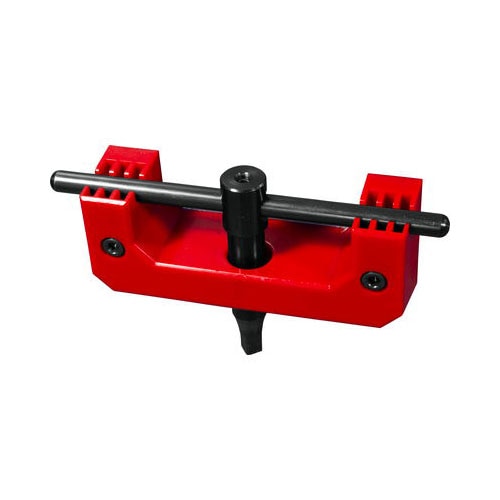

  • Electronic Chuck Key Docking Station
  • Chuck Guard

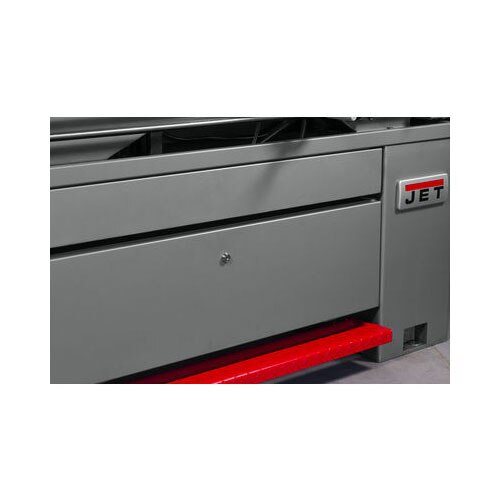

  • Foot Brake
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 220-2000 RPM
  • LED RPM readout allows for precise turning speeds
  • Spindle actuation control is apron mounted
  • Gap bed section provided for larger diameter work

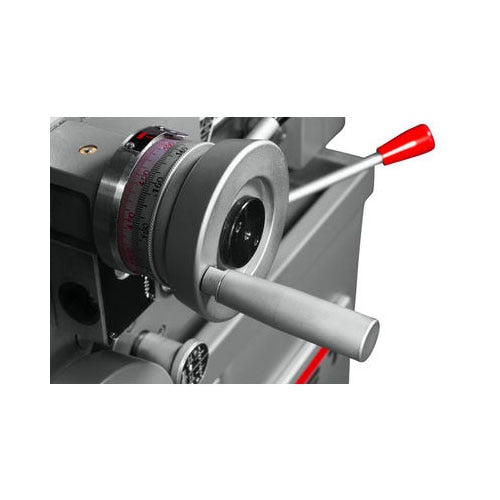

  • Compound and cross slide have backlash elimination
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill

Jet 311446 Specifications

Accessory 1 203 DRO

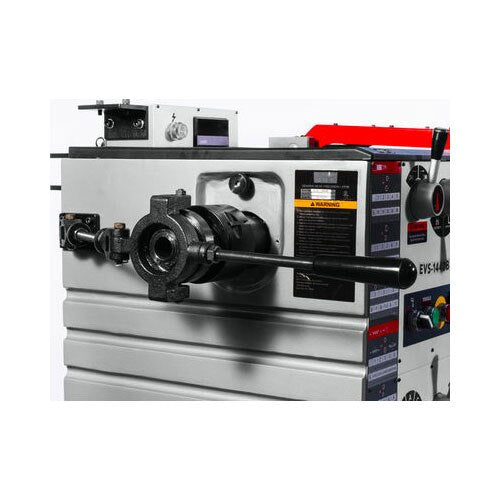

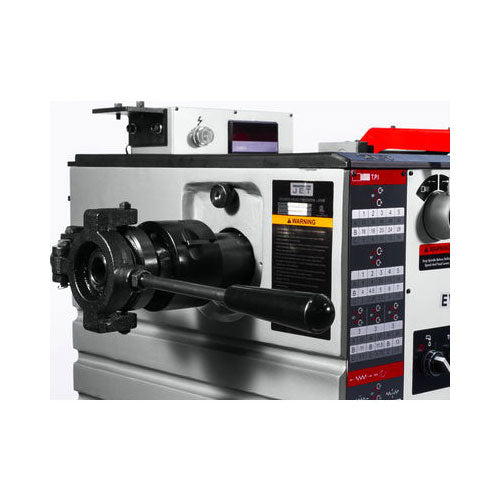

Accessory 2 Collet Closer
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 9-1/16
Length of Gap (In.) 9-1/4
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 40-2000
Spindle Taper with Sleeve MT-5
Number of Longitudinal and Cross Feed Rates 25
Range of Longitudinal Feeds (IPR) 0.0016-0.0460
Range of Cross Feeds (IPR) 25
Number of Inch Threads 34
Range of Inch Threads (TPI) 2-56
Number of Metric Threads 34
Range of Metric Threads 0.5-12
Max Tool Size (In.) 3/4 x 3/4
Compound Slide Travel (In.) 3-1/2
