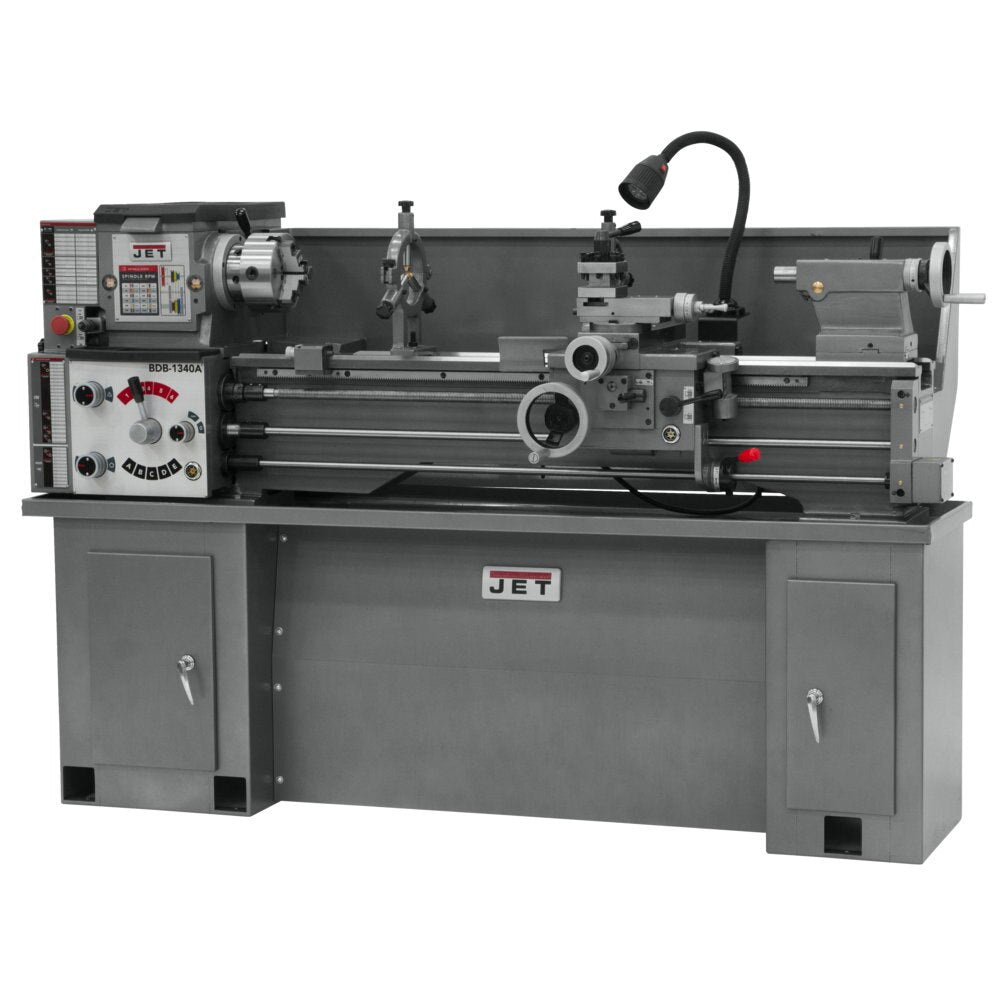

Jet JT9-321101AK GHB-1340A With CBS-1340A Stand

FEATURES:
• One of the most popular JET lathes now comes with an enclosed gear box
• Enclosed gear box design provides smooth, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Gear box gives wide inch threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod

SPECIFICATIONS:
• Number of Longitudinal and Cross Feed Rates: 40
• Number of Metric Threads: 23
• Max Tool Size (In.): 5/8 x 5/8
• Drive: SV_1375591258789
• Overall Dimensions (L x W x H) (In.): 71 x 32 x 45
• Swing Through Gap (In.): 18-3/4
• Weight (Lbs.): 1,154
• Width of Bed (In.): 7-3/8
• Motor (HP): 2 HP, 230V, 1Ph
• Swing Over Bed (In.): 13
• Cross Slide Travel (In.): 6-5/16
• Taper in Tailstock Spindle: MT-3
• Compound Slide Travel (In.): 2-11/16
• Range of Metric Threads: .45 - 10
• Carriage Travel (In.): 35
• Steady Rest Capacity (In.): 2-3/4
• Number of Inch Threads: 38
• Range of Spindle Speeds (RPM): 70 - 2,000
• Spindle Mount: D1-4

JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.
