Jet  |  SKU: JT9-321121  |  Barcode: 662755502743

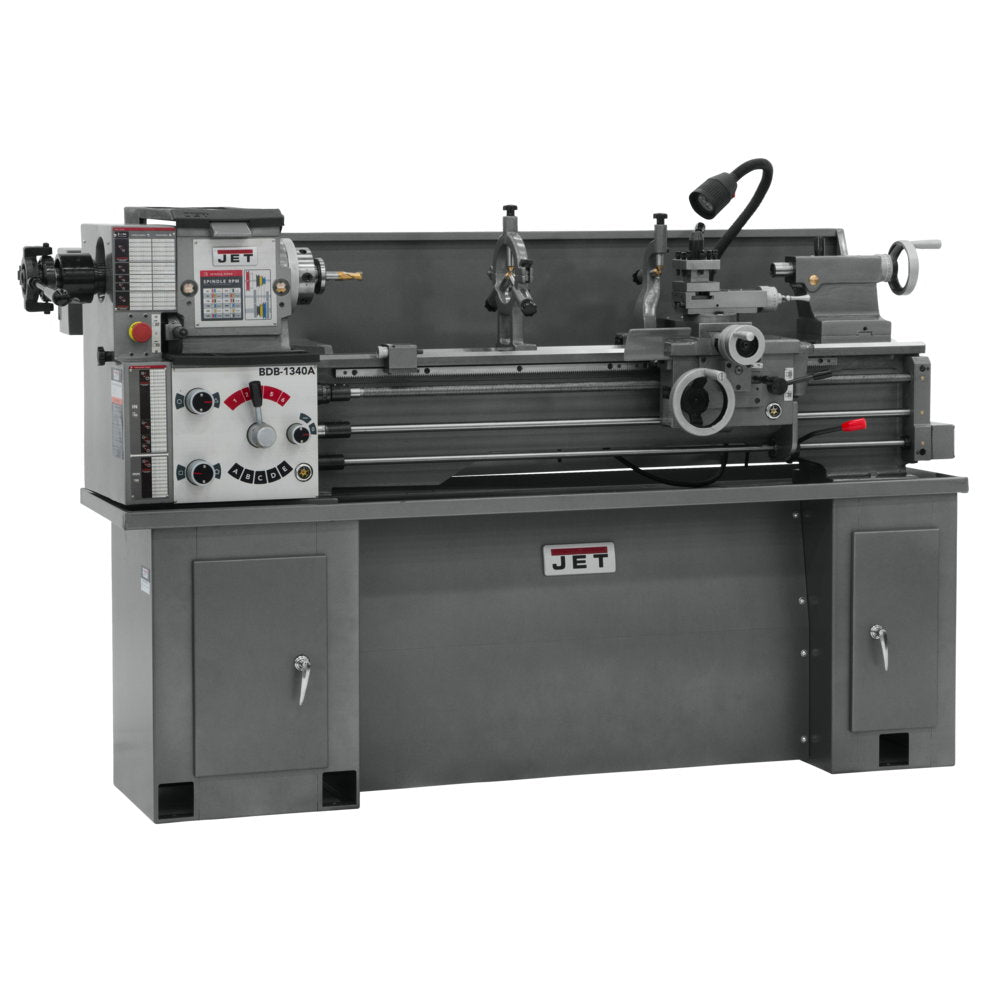

Jet JT9-321121 BDB-1340A With ACU-RITE 200S DRO

Free Shipping
$12,599.00 $14,500.00
Loading delivery estimate...

Description

Jet 321121 Description

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick change gearbox allows for fast and easy gear changes for metric threading. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty

Jet 321121 Features

  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Low voltage motor controls
  • Helical cut headstock gears reudce noise
  • Change gears allow metric threading
  • Spindle is supported by precision tapered roller bearings
  • V-way bed is induction hardened and ground
  • Gap bed section provided for large diameter work
  • Independent leadscrew and feed rod

Jet 321121 Specifications

Number of Longitudinal and Cross Feed Rates 38
Number of Metric Threads 23
Max Tool Size (In.) 5/8 x 5/8
Drive SV_1375591258788
Overall Dimensions (L x W x H) (In.) 71 x 32 x 45
Swing Through Gap (In.) 18-3/4
Weight (Lbs.) 1,175
Width of Bed (In.) 7-3/8
Motor (HP) 2 HP, 230V, 1Ph
Swing Over Bed (In.) 13
Cross Slide Travel (In.) 6-5/16
Taper in Tailstock Spindle MT-3
Compound Slide Travel (In.) 2-11/16
Range of Metric Threads 0.45-10
Carriage Travel (In.) 35
Steady Rest Capacity (In.) 2-5/8
Number of Inch Threads 38
Range of Spindle Speeds (RPM) 60 - 1,240
Spindle Mount D1-4
​ ​ ​ ​ ​ ​
