Jet | SKU:
JT9-321379

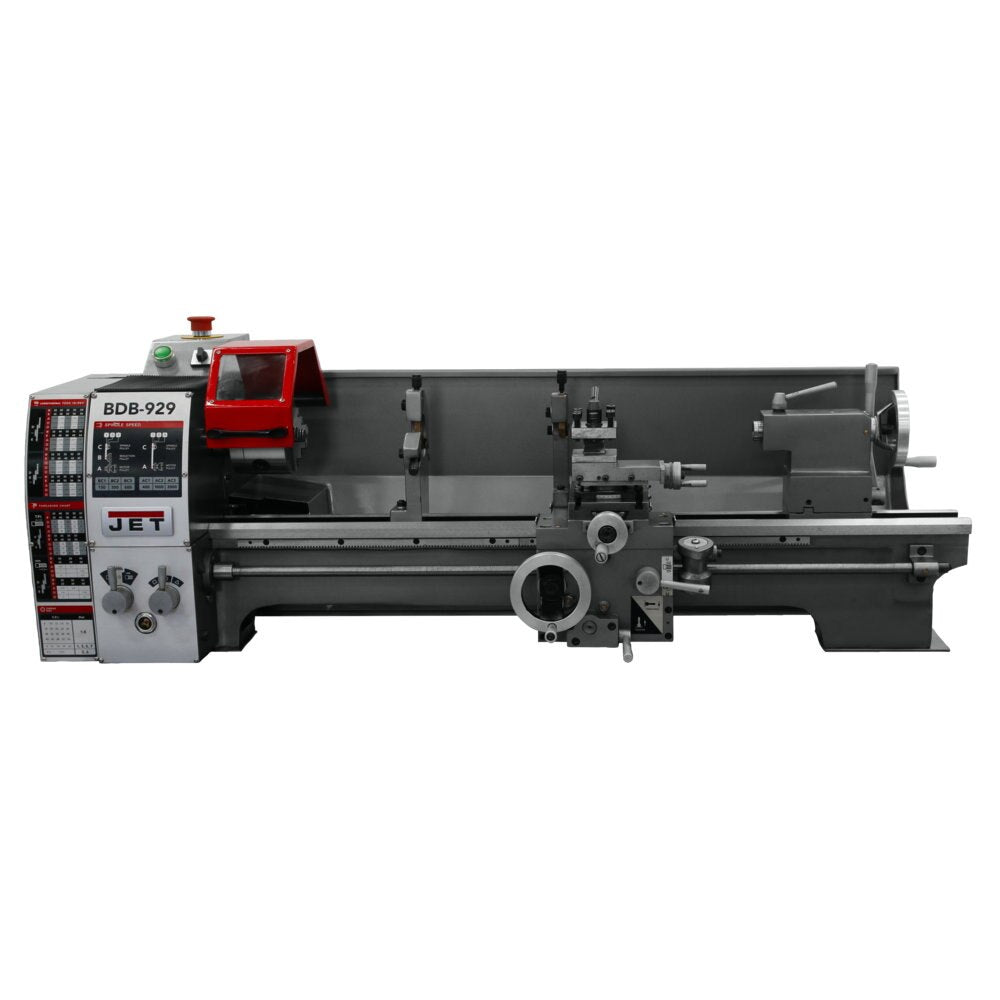

Jet JT9-321379 BDB-929 9 x 29 Lathe
Free Shipping
$3,799.00
$4,541.43
Unit price
/
Unavailable
Description
Description
Jet 321379 Description
The BDB-929 benchtop lathe is the essential step to improving your shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.
Jet 321379 Features
- Induction hardened and ground bedway
- Spindle supported by precision tapered roller bearings
- Safety on/off switch
- Emergency Stop within easy reach of the Operator
- Chuck Guard
- Quick change gearbox provides wide range of inch and metric threads
- Power longitudinal feed allows threading and reverse threading
- Quick locking tailstock
- Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories
- Reversing switch for added versatility
Jet 321379 Specifications
| Number of Longitudinal and Cross Feed Rates | 60 |
| Number of Metric Threads | 12 |
| Max Tool Size (In.) | 1/2 |
| Overall Dimensions (L x W x H) (In.) | 41x22x20 |
| Weight (Lbs.) | 287 |
| Width of Bed (In.) | 4-1/2 |
| Motor (HP) | 3/4 HP, 115V, 1PH |
| Swing Over Bed (In.) | 8-3/4 |
| Cross Slide Travel (In.) | 4-1/4 |
| Taper in Tailstock Spindle | MT-2 |
| Compound Slide Travel (In.) | 1-7/8 |
| Range of Metric Threads | 0.5 - 3.5 |
| Carriage Travel (In.) | 26.5 |
| Steady Rest Capacity (In.) | 1-3/4 |
| Number of Inch Threads | 27 |
| Range of Spindle Speeds (RPM) | 130-2000 |
| Spindle Mount | 1-1/2 x 8TPI |
| Follow Rest Capacity (In.) | 1-3/4 |
| Spindle Bore (In.) | 3/4 |
| Range of Inch Threads (TPI) | 8 - 56 |
| Spindle Taper with Sleeve | MT-3 |
| Swing Over Cross Slide (In.) | 5 |
| Number of Spindle Speeds | 6 |
| Tailstock Spindle Travel (In.) | 1-9/16 |
| Distance Between Centers (In.) | 27.5 |
| Range of Longitudinal Feeds (IPR) | 0.0006-0.0368 |
| Prewired (V.) | 115V |
