Jet  |  SKU: JT9-321581  |  Barcode: 662755518270

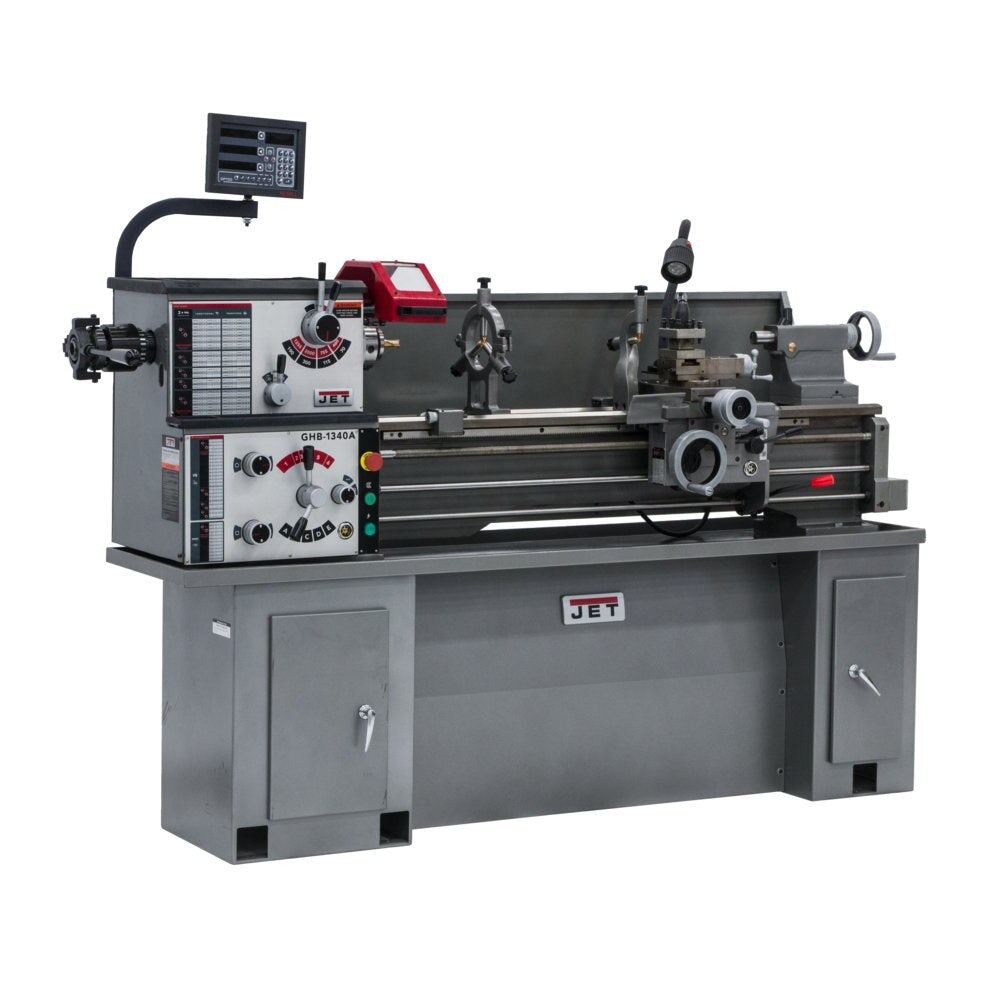

Jet JT9-321581 GHB-1340A With Newall DP700 DRO With Collet Closer

Free Shipping
$14,279.00 $17,431.43

Description

Jet 321581 Description

JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

Jet 321581 Features

  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Gear box gives wide inch threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent leadscrew and feed rod

Jet 321581 Specifications

Number of Longitudinal and Cross Feed Rates 40
Number of Metric Threads 23
Max Tool Size (In.) 5/8 x 5/8
Drive SV_1375591258789
Overall Dimensions (L x W x H) (In.) 71 x 32 x 45
Swing Through Gap (In.) 18-3/4
Weight (Lbs.) 1,175
Width of Bed (In.) 7-3/8
Motor (HP) 2 HP, 230V, 1Ph
Swing Over Bed (In.) 13
Cross Slide Travel (In.) 6-5/16
Taper in Tailstock Spindle MT-3
Compound Slide Travel (In.) 2-11/16
Range of Metric Threads .45 - 10
Carriage Travel (In.) 35
Steady Rest Capacity (In.) 2-3/4
Number of Inch Threads 38
Range of Spindle Speeds (RPM) 70 - 2,000
Spindle Mount D1-4
