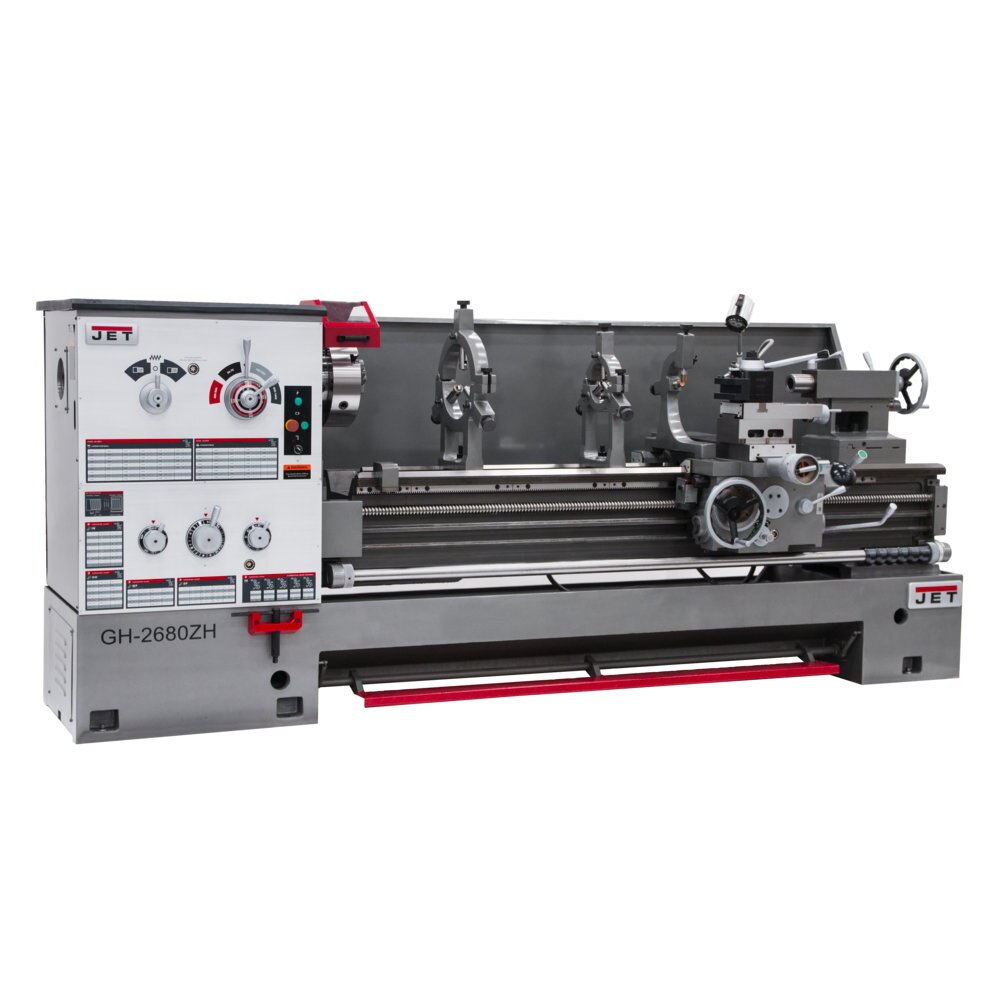

Jet JT9-321860 GH-2680ZH, 4-1/8" Spindle Bore Geared Head Lathe

FEATURES:
• 4-1/8" Spindle Bore
• Clutch operated headstock with all headstock gears hardened and ground
• Universal gearbox design allows easy selection of inch and metric threading
• Meehanite Castings are used for added durability.
• Bed ways are induction hardened and ground for durability.
• Full Length Splash Guard
• Heavy-duty tailstock and quill
• Rapid power traverse to cross slide and carriage
• Standard Equipment:

SPECIFICATIONS:
• Number of Longitudinal and Cross Feed Rates: 65
• Number of Metric Threads: 22
• Max Tool Size (In.): 1-1/4 x 1-1/4
• Drive: SV_1375591258789
• Overall Dimensions (L x W x H) (In.): 138 x 43 x 57
• Swing Through Gap (In.): 34
• Weight (Lbs.): 8,514
• Width of Bed (In.): 16
• Motor (HP): 10 HP, 230/460, 3 Ph
• Swing Over Bed (In.): 26
• Cross Slide Travel (In.): 12-3/32
• Taper in Tailstock Spindle: MT-5
• Compound Slide Travel (In.): 5-1/2
• Range of Metric Threads: 1 - 14
• Carriage Travel (In.): 72-1/2
• Steady Rest Capacity (In.): Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
• Number of Inch Threads: 48
• Range of Spindle Speeds (RPM): 36 - 1,600
• Spindle Mount: D1-8

The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty
