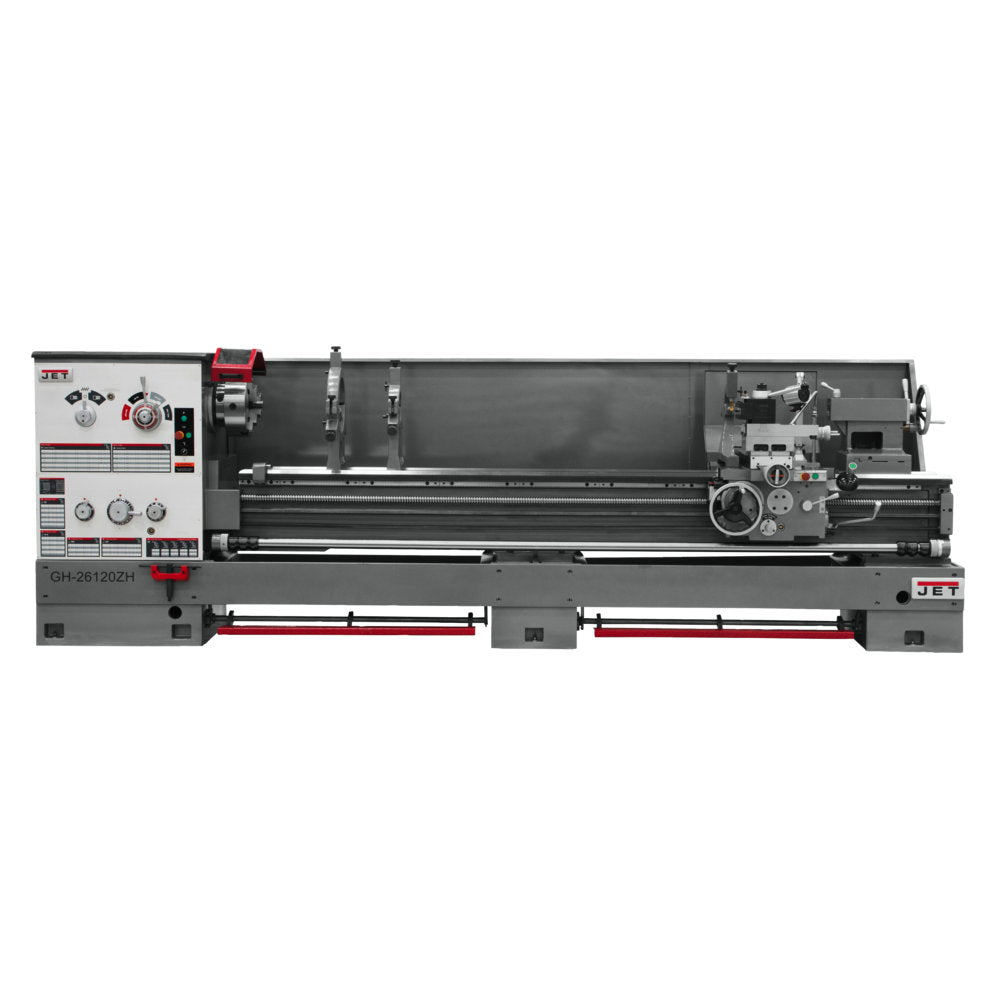

Jet JT9-321896 GH-26120ZH With ACU-RITE 300S DRO
Free Shipping
$54,259.00
$66,224.29
Unit price
/
Unavailable
Description
Description
Jet 321896 Description
The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty
Jet 321896 Features
- 4-1/8" Spindle Bore
- Clutch operated headstock with all headstock gears hardened and ground
- Universal gearbox design allows easy selection of inch and metric threading
- Meehanite Castings are used for added durability.
- Bed ways are induction hardened and ground for durability.
- Traveling splash guard
- Heavy-duty tailstock and quill
- Rapid power traverse to cross slide and carriage
- Standard Equipment:
Jet 321896 Specifications
| Number of Longitudinal and Cross Feed Rates | 65 |
| Number of Metric Threads | 22 |
| Max Tool Size (In.) | 1-1/4 x 1-1/4 |
| Drive | SV_1375591258789 |
| Overall Dimensions (L x W x H) (In.) | 178 x 43 x 57 |
| Swing Through Gap (In.) | 34 |
| Weight (Lbs.) | 9,362 |
| Width of Bed (In.) | 16 |
| Motor (HP) | 10 HP, 230/460, 3 Ph |
| Swing Over Bed (In.) | 26 |
| Cross Slide Travel (In.) | 12-3/32 |
| Taper in Tailstock Spindle | MT-5 |
| Compound Slide Travel (In.) | 5-1/2 |
| Range of Metric Threads | 1 - 14 |
| Carriage Travel (In.) | 108-1/4 |
| Steady Rest Capacity (In.) | Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16 |
| Number of Inch Threads | 48 |
| Range of Spindle Speeds (RPM) | 36 - 1,600 |
| Spindle Mount | D1-8 |
