Jet JT9-323418 GH-1440-3 w/ Newall DP500 DRO, Collet Closer & Taper Attm
Description
Description
Jet 323418 Description

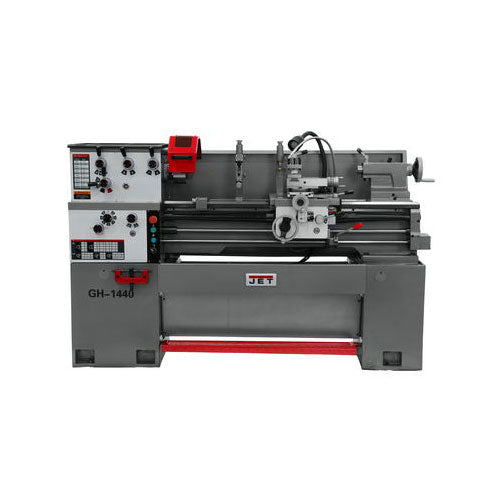

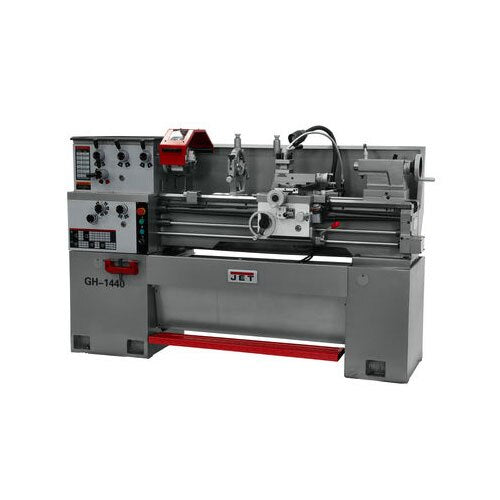

The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Jet 323418 Includes

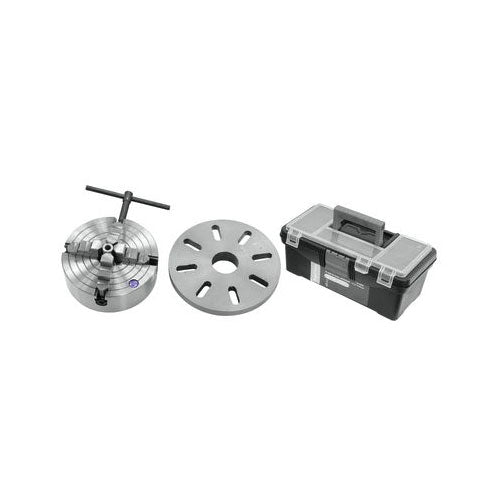

- (1) GH-1440-3 with Newall DP500 DRO, Collet Closer and Taper Attachment
Jet 323418 Features
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts are utilized
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent leadscrew and feed rod
- Adjustable gibs are incorporated in the carriage and slideways
- Safety on/off switch
- Emergency Stop within easy reach of the Operator
- Electronic Chuck Key Docking Station
- Chuck Guard
- Foot Brake
- Gearbox provides larger threading and feed capabilities with no gear changes
- Spindle actuation control is apron mounted
- Gap bed section provided for larger diameter work
- Inch-metric dials are standard
- Compound and cross slide have backlash elimination
- Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
- Front removable chip tray
- Spindle jog button for easy gear engagement and spindle inching
