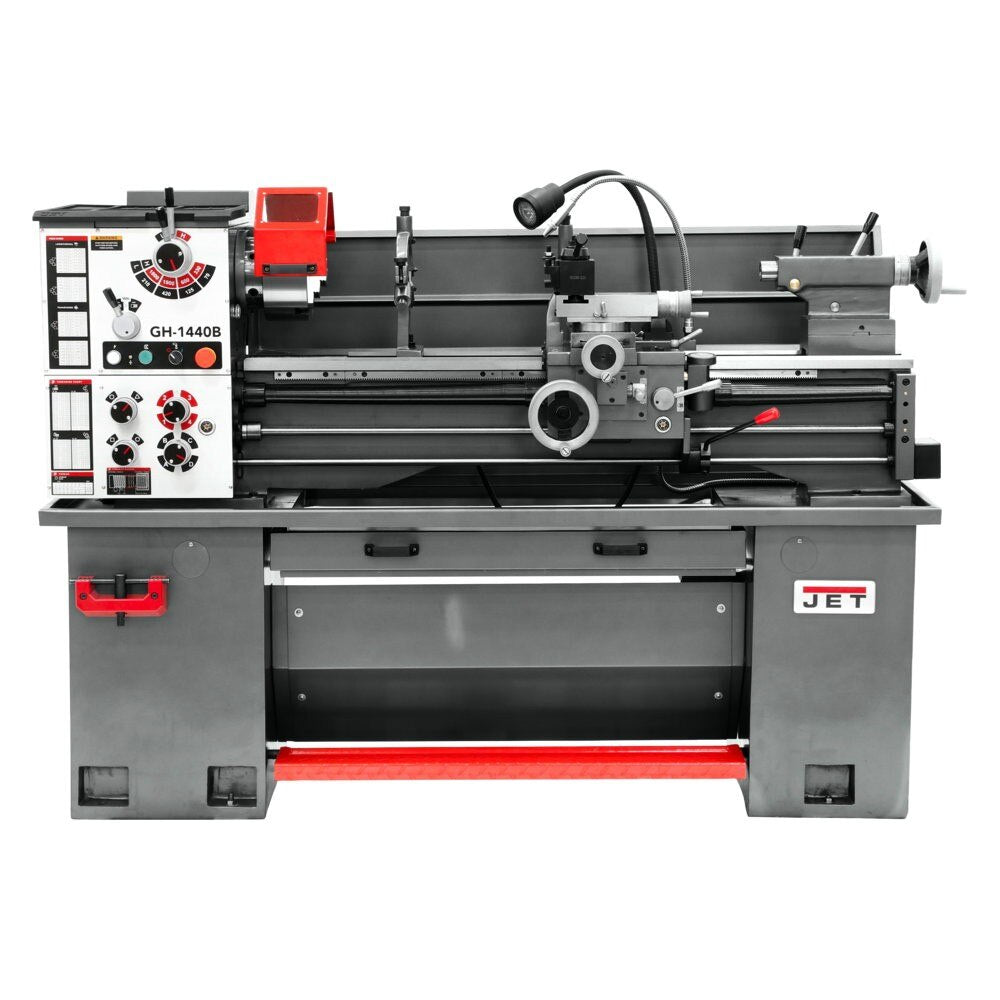

Jet JT9-323442 GH-1440B Geared Head Bench Lathe with Taper Attachment
Free Shipping
$15,599.00
$18,425.71
Unit price
/
Unavailable
Description
Description
Jet 323442 Description
This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Jet 323442 Features
- Precision spindle roller bearings
- High quality steel hardened gears in headstock
- Lead screw cover
- Cast iron Stand
- Foot Brake comes standard
- Emergency Stop within easy reach of the Operator
- Emergency Stop within easy reach of the Operator
- Chuck Guard
- Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
- Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use
Jet 323442 Specifications
| Number of Longitudinal and Cross Feed Rates | 32/32 |
| Number of Metric Threads | 26 |
| Max Tool Size (In.) | 4/5 x 4/5 |
| Overall Dimensions (L x W x H) (In.) | 76-13/32 x 29-29/32 x 59-13/16 |
| Swing Through Gap (In.) | 20 |
| Weight (Lbs.) | 1753 |
| Width of Bed (In.) | 7.32 |
| Motor (HP) | 2 HP, 230V, Single Phase |
| Swing Over Bed (In.) | 14 |
| Cross Slide Travel (In.) | 7 |
| Taper in Tailstock Spindle | MT4 |
| Compound Slide Travel (In.) | 3-1/2 |
| Range of Metric Threads | 0.4-7 |
| Taper Attachment | Yes |
| Carriage Travel (In.) | 37-2/5 |
| Steady Rest Capacity (In.) | 0.31-2.95 |
| Number of Inch Threads | 34 |
| Range of Spindle Speeds (RPM) | 70-1900 |
| Spindle Mount | D1-5 |
| Follow Rest Capacity (In.) | 0.31-2.16 |
| Spindle Bore (In.) | 2 |
| Range of Inch Threads (TPI) | 4-56 |
| Spindle Taper with Sleeve | MT6 |
| Swing Over Cross Slide (In.) | 8 |
| Number of Spindle Speeds | 8 |
| Tailstock Spindle Travel (In.) | 4 |
| Length of Gap (In.) | 8 |
| Range of Cross Feeds (IPR) | 0.007 -0.0187 |
| Distance Between Centers (In.) | 36-7/8 |
| Range of Longitudinal Feeds (IPR) | 0.002 -0.0548 |
| Prewired (V.) | 230V |
