Jet  |  SKU: JT9-350017  |  Barcode: 662755103896

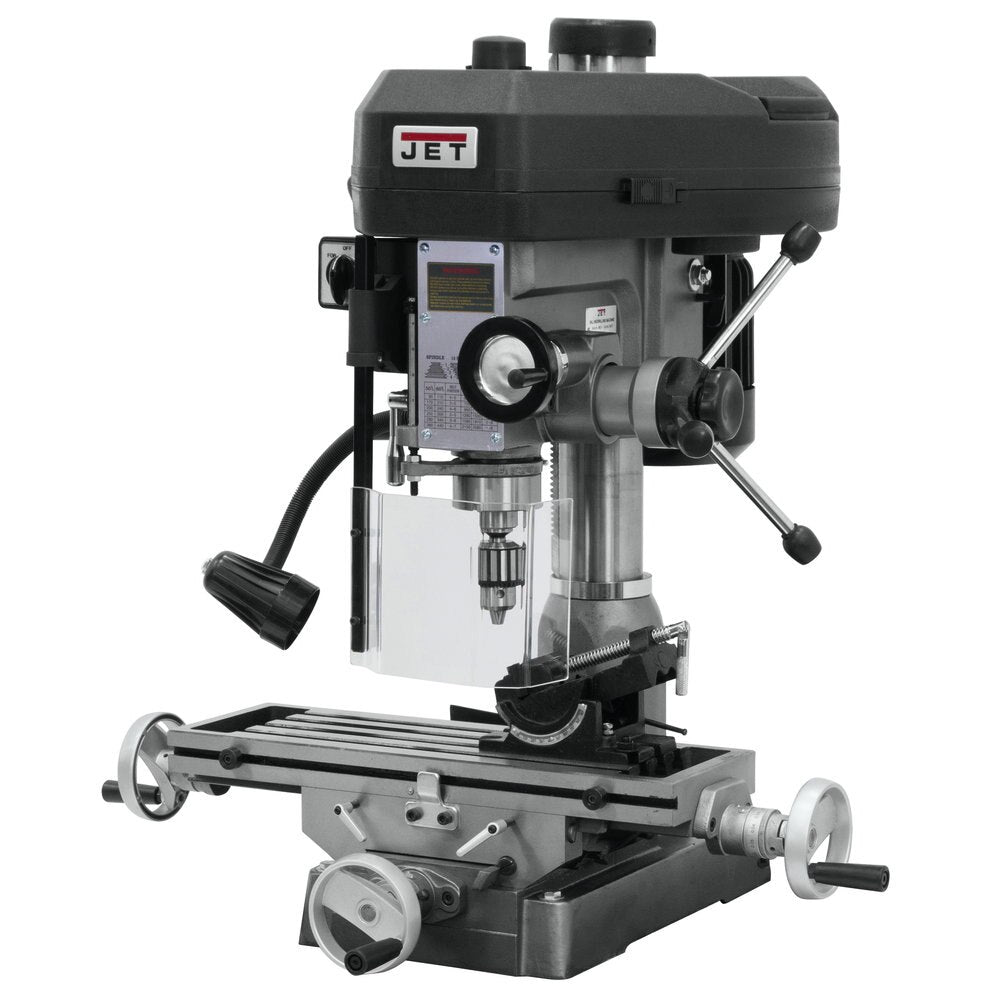

Jet JT9-350017 JMD-15 Mill/Drill With R-8 Taper 115/230V 1PH

Free Shipping
$2,599.00 $3,192.86

Description

Jet 350017 Description

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Jet 350017 Features

  • For added safety, the JMD-15 follows strict guidelines and electrical requirements to be certified by CSA Group
  • One-piece cast iron column for added support
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean up
  • Drill Press angle vise
  • UL Listed motor
  • Extra large worktable
  • Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
  • 360° head swivel
  • Work lamp

Jet 350017 Specifications

T-Slot Centers (In.) 1-13/16
Range of Spindle Speeds (RPM) 110 - 2,580
End Mill Capacity (In.) 1/2
Spindle Travel (In.) 3-1/2
Spindle Taper (In. x TPI) R-8
Column Diameter (In.) 3-5/8
Table Size (L x W) (In.) 7-1/2 x 23
Table Longitudinal Travel (In.) 14
Drilling Capacity (In.) 1
Overall Dimensions (L x W x H) (In.) 38 x 37-1/2 x 42
Face Mill Capacity (In.) 2-1/2
Base Dimensions (In.) 12-1/2 x 19-3/4
T-Slots Number and Size (In.) 4, 9/16
Max Distance Spindle to Table (In.) 15
Weight (Lbs.) 440
Swing (In.) 14-1/2
Work Table Weight Capacity (Lbs.) 350
Number of Spindle Speeds 12
Quill Diameter (In.) 2-7/16
