Jet  |  SKU: JT9-350129  |  Barcode: 662755514432

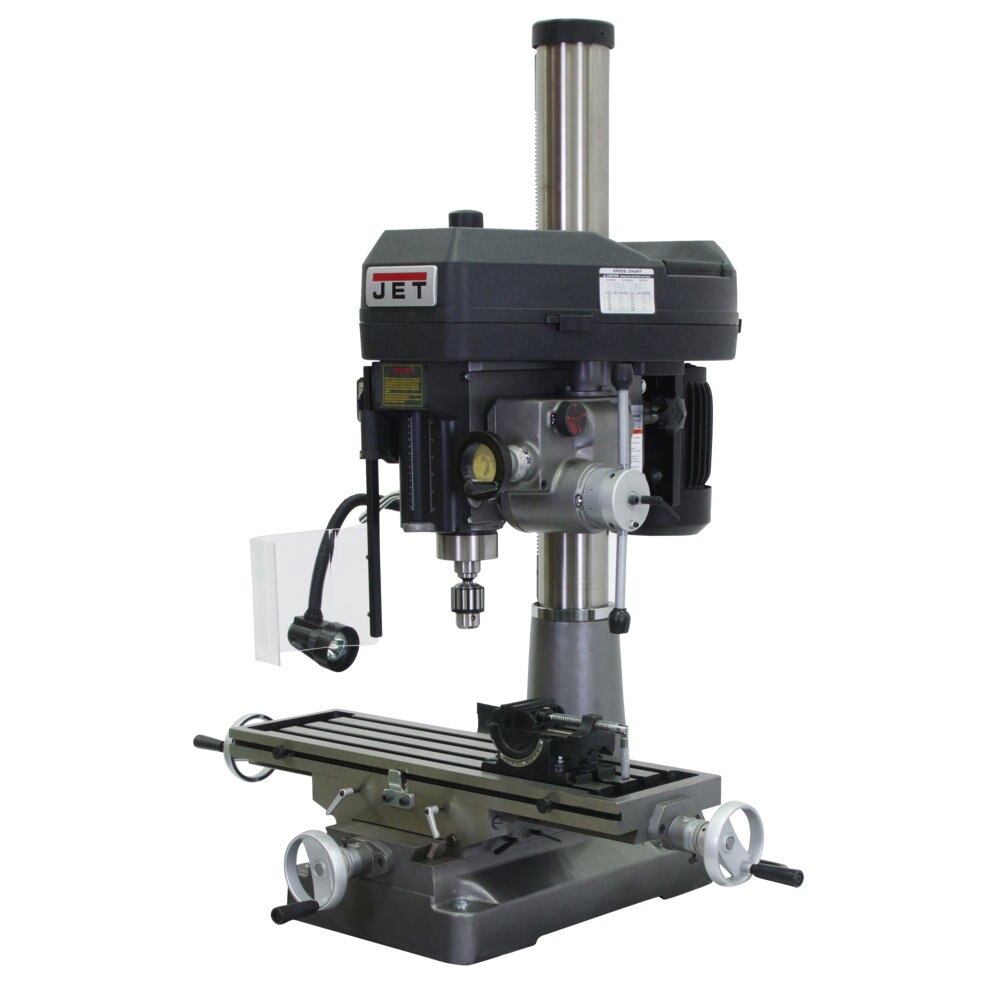

Jet JT9-350129 JMD-18PFN Mill/Drill With NEWALL DP700 DRO and X-Axis Table Powerfeed

Free Shipping
$8,419.00 $10,238.57

Description

Jet 350129 Description

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Jet 350129 Features

  • For added safety, the JMD-18PFN follows strict guidelines and electrical requirements to be certified by CSA Group
  • One-piece cast iron column for added support
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean up
  • Drill Press angle vise
  • UL Listed motor
  • Extra large worktable
  • New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
  • 360° head swivel
  • Work lamp

Jet 350129 Specifications

T-Slot Centers (In.) 1-13/16
Range of Spindle Speeds (RPM) 150 - 3,000
End Mill Capacity (In.) 3/4
Digital Readout Newall DP700
Spindle Travel (In.) 5
Spindle Taper (In. x TPI) R-8
Column Diameter (In.) 4-1/2
Table Size (L x W) (In.) 9-1/2 X 31-3/4
Table Longitudinal Travel (In.) 20-1/2
Drilling Capacity (In.) 1-1/4
Overall Dimensions (L x W x H) (In.) 47 x 40 x 51
Face Mill Capacity (In.) 3
Base Dimensions (In.) 15-3/4 x 23-3/4
T-Slots Number and Size (In.) 4, 5/8
Max Distance Spindle to Table (In.) 26
Spindle Travel Auto (In.) 4-1/4
Weight (Lbs.) 700
Quill Down Feed Rates (IPR) 0.0047”, 0.007”, 0.001”
Swing (In.) 15-7/8
