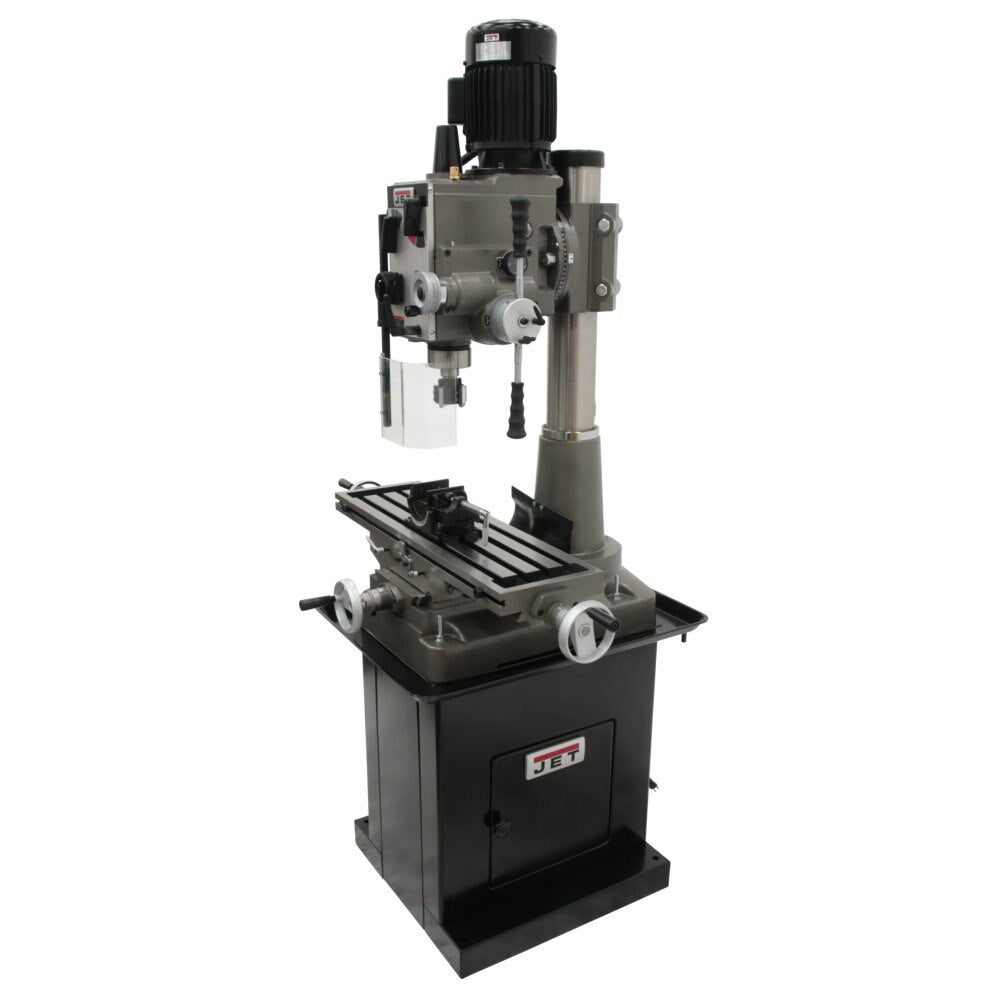

Jet JT9-351153 JMD-45GHPF Square Column Mill Drill Downfeed DP700, XFeed
Free Shipping
$11,999.00
$14,011.43
Unit price
/
Unavailable
Description
Description
FEATURES:
• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• Square column with dovetail ways
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90º
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Power Downfeed standard
• Milling table allows for movement
• R8 spindle allows use of all mill tooling
SPECIFICATIONS:
• Table Size (L x W) (In.) (EN): 9-1/2 x 32-1/4
• Number of Spindle Speeds (EN): 6
• Spindle Travel (In.) (EN): 5
• Column Diameter (In.) (EN): 7-7/8 x 7-5/8 Square
• Spindle Taper (In. x TPI) (EN): R8
• Swing (In.) (EN): 19-11/16
• Weight (Lbs.) (EN): 727
The heavy-duty JMD-45GHPF Square Column Geared Head Mill Drill with power downfeed capability is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.
• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• Square column with dovetail ways
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90º
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Power Downfeed standard
• Milling table allows for movement
• R8 spindle allows use of all mill tooling
SPECIFICATIONS:
• Table Size (L x W) (In.) (EN): 9-1/2 x 32-1/4
• Number of Spindle Speeds (EN): 6
• Spindle Travel (In.) (EN): 5
• Column Diameter (In.) (EN): 7-7/8 x 7-5/8 Square
• Spindle Taper (In. x TPI) (EN): R8
• Swing (In.) (EN): 19-11/16
• Weight (Lbs.) (EN): 727
The heavy-duty JMD-45GHPF Square Column Geared Head Mill Drill with power downfeed capability is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.
