Jet JT9-351160 JMD-45GHPF Geared Square Column Mill Drill, Downfeed, DP500
Free Shipping
$9,229.00
$11,282.86
Unit price
/
Unavailable
Description
Description
Jet 351160 Description

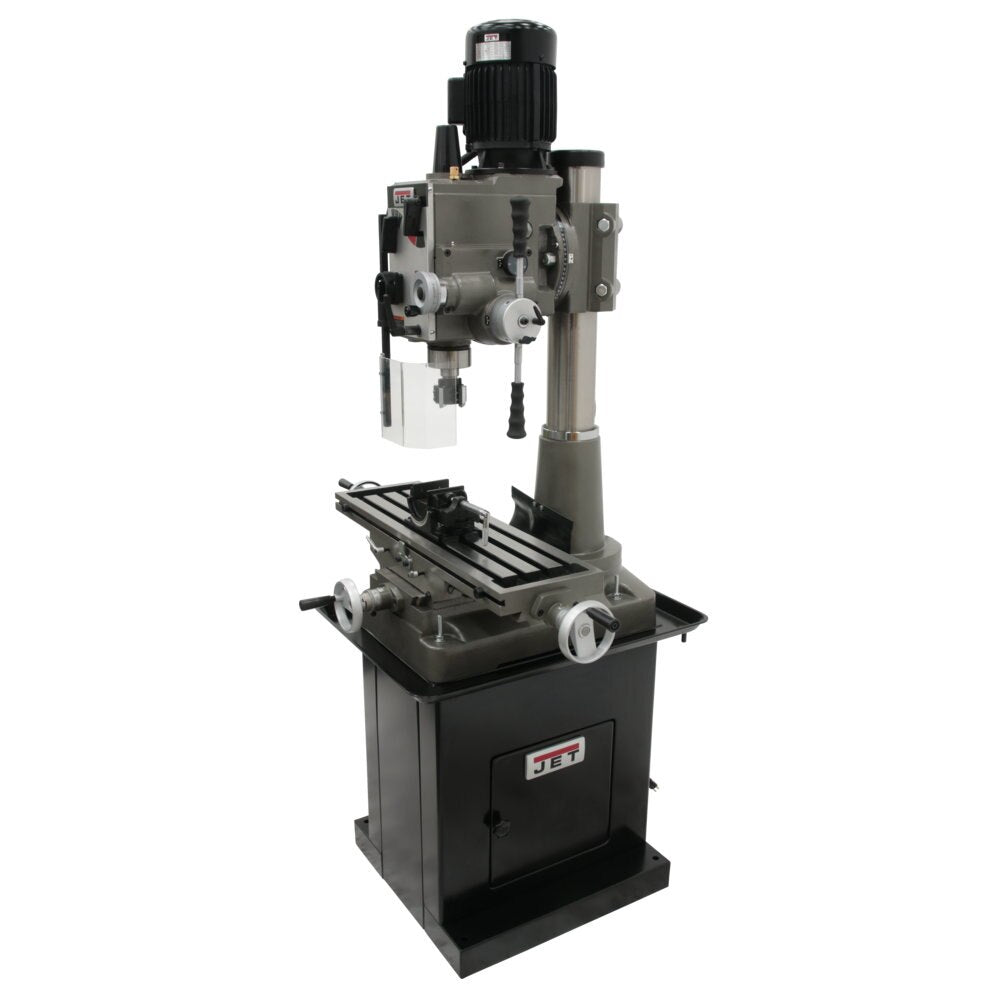

The heavy-duty JMD-45GHPF Square Column Geared Head Mill Drill with power downfeed capability is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.
Jet 351160 Features
- Heavy-duty design allows for a variety of precision drilling applications
- Full power to the cutting tools through 6 speed geared head
- Square column with dovetail ways
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
- Spindle guard
- Work Lamp
- Calibrated fine down feed built in
- Easy to read internal depth gauge
- Head tilts left & right 90º
- Rapid spindle speed changes through quick-select gear shift levers
- Forward/reverse switch
- Power Downfeed standard
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
Jet 351160 Specifications
| Table Size (L x W) (In.) (EN) | 9-1/2 x 32-1/4 |
| Number of Spindle Speeds (EN) | 6 |
| Spindle Travel (In.) (EN) | 5 |
| Column Diameter (In.) (EN) | 7-7/8 x 7-5/8 Square |
| Spindle Taper (In. x TPI) (EN) | R8 |
| Swing (In.) (EN) | 19-11/16 |
| Weight (Lbs.) (EN) | 727 |
