Jet | SKU:
JT9-354020

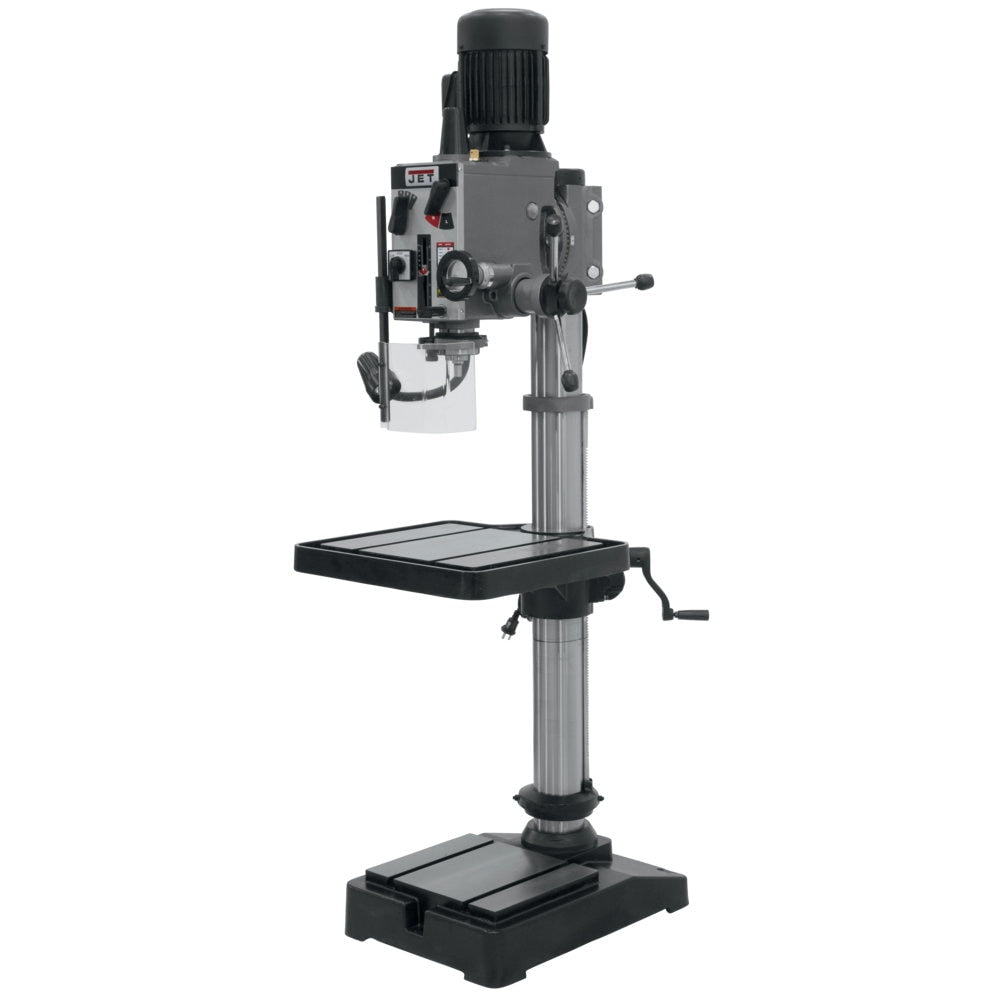

Jet JT9-354020 GHD-20, 20" Gear Head Drill Press 230V, 3PH
Free Shipping
$5,119.00
$6,342.86
Unit price
/
Unavailable
Description
Description
Jet 354020 Description
JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.
Jet 354020 Features
- Heavy-duty design allows a variety of precision drilling applications
- Large production table and T-slotted base
- Easy-to-read internal depth gauge
- Three power downfeed rates
- Calibrated fine downfeed built in
- TEFC motor
- Built-in spindle lock
- Head tilts left or right
- Easily accessible table raiser
- Drill chuck arbor
Jet 354020 Specifications
| Column Diameter (In.) | 4-1/2 |
| Base Work Table (In.) | 15-1/4 x 13 |
| Style (Type) | SV_1375591258789 |
| Motor (HP) | 2 HP (2 Speed) , 230V, 3Ph |
| Range of Spindle Speeds (RPM) | Low - 60, 130, 230, 450, 800, 1500; High 120, 260, 460, 900, 1600, 3000 |
| Weight (Lbs.) | 660 |
| T-Slot Centers (In.) | 9 |
| Table Size (L x W) (In.) | 21-3/4 x 19-1/2 |
| Quill Diameter (In.) | 3 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Spindle Distance to Base (In.) | 44-15/16 |
| Work Table Weight Capacity (Lbs.) | 275 |
| Prewired (V.) | 230 |
| Overall Dimensions (L x W x H) (In.) | 32 x 24 x 71 |
| Drills to Center of Circle (In.) | 20 |
| Table Travel (In.) | 25-1/2 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Base Dimensions (In.) | 26 x 18 |
