Jet | SKU:
JT9-354026

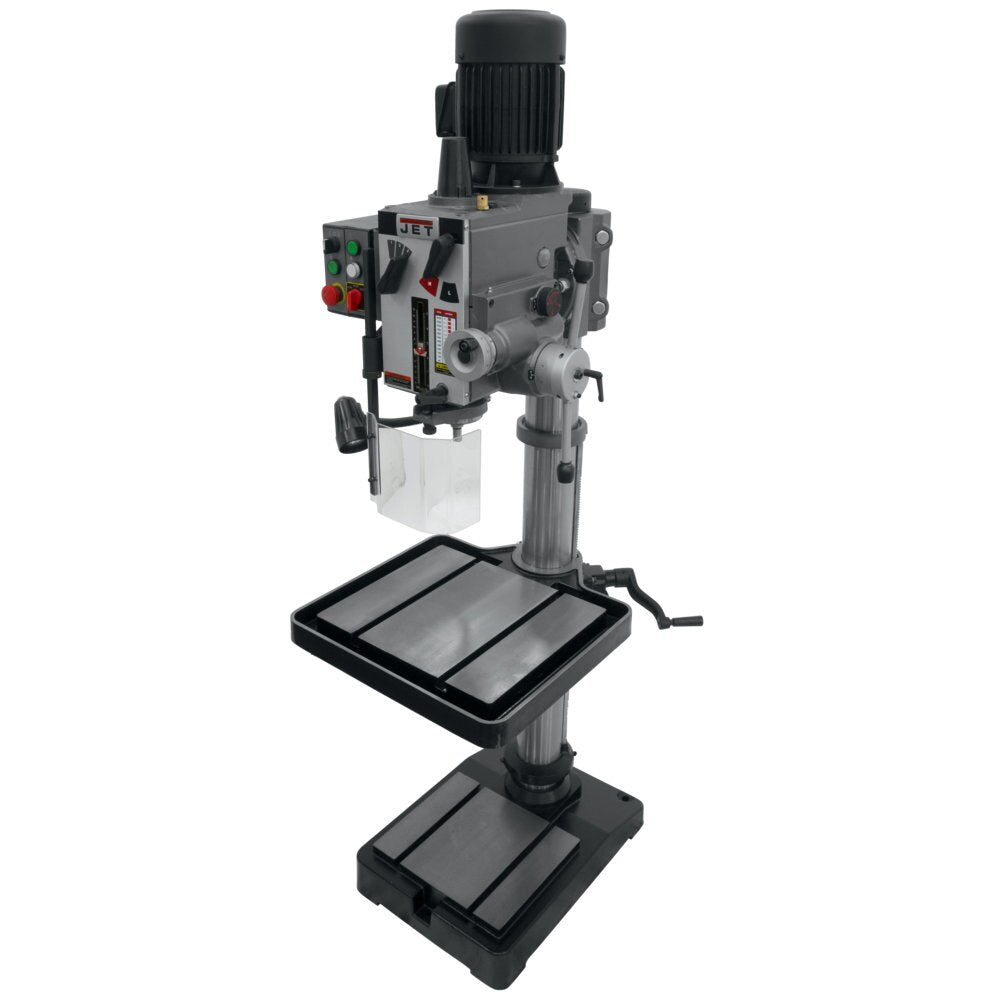

Jet JT9-354026 GHD-20PFT 20" Gear Head Tapping Drill Press, Power Down Feed 230V 3PH
Free Shipping
$6,859.00
$8,424.29
Unit price
/
Unavailable
Description
Description
FEATURES:
• Heavy-duty design allows a variety of precision drilling and tapping applications
• Integrated tapping and reversing controls
• Large production table and T-slotted base
• Easy-to-read internal depth gauge
• Three power downfeed rates
• Calibrated fine downfeed built in
• TEFC motor
• Built-in spindle lock
• Head tilts left or right
• Easily accessible table raiser
SPECIFICATIONS:
• Column Diameter (In.): 4-1/2
• Base Work Table (In.): 15-1/4 x 13
• Style (Type): SV_1375591258789
• Motor (HP): 2 HP (2 Speed) , 230V, 3Ph
• Range of Spindle Speeds (RPM): Low - 120, 260, 460, 900, 1600, 3000; High - 60, 130, 230, 450, 800, 1500
• Weight (Lbs.): 708
• T-Slot Centers (In.): 9
• Table Size (L x W) (In.): 21-3/4 x 19-1/2
• Quill Diameter (In.): 3
• Spindle Distance to Table (Max.) (In.): 30-1/2
• Spindle Distance to Base (In.): 44-5/16
• Work Table Weight Capacity (Lbs.): 275
• Prewired (V.): 230
• Overall Dimensions (L x W x H) (In.): 32 x 24 x 71
• Drills to Center of Circle (In.): 20
• Table Travel (In.): 25-1/2
• Drilling Capacity Cast Iron (In.): 1-1/2
• Base Slots Number & Size (In.): 2 & 5/8
• Base Dimensions (In.): 26 x 18
Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty.
