Jet | SKU:
JT9-354169

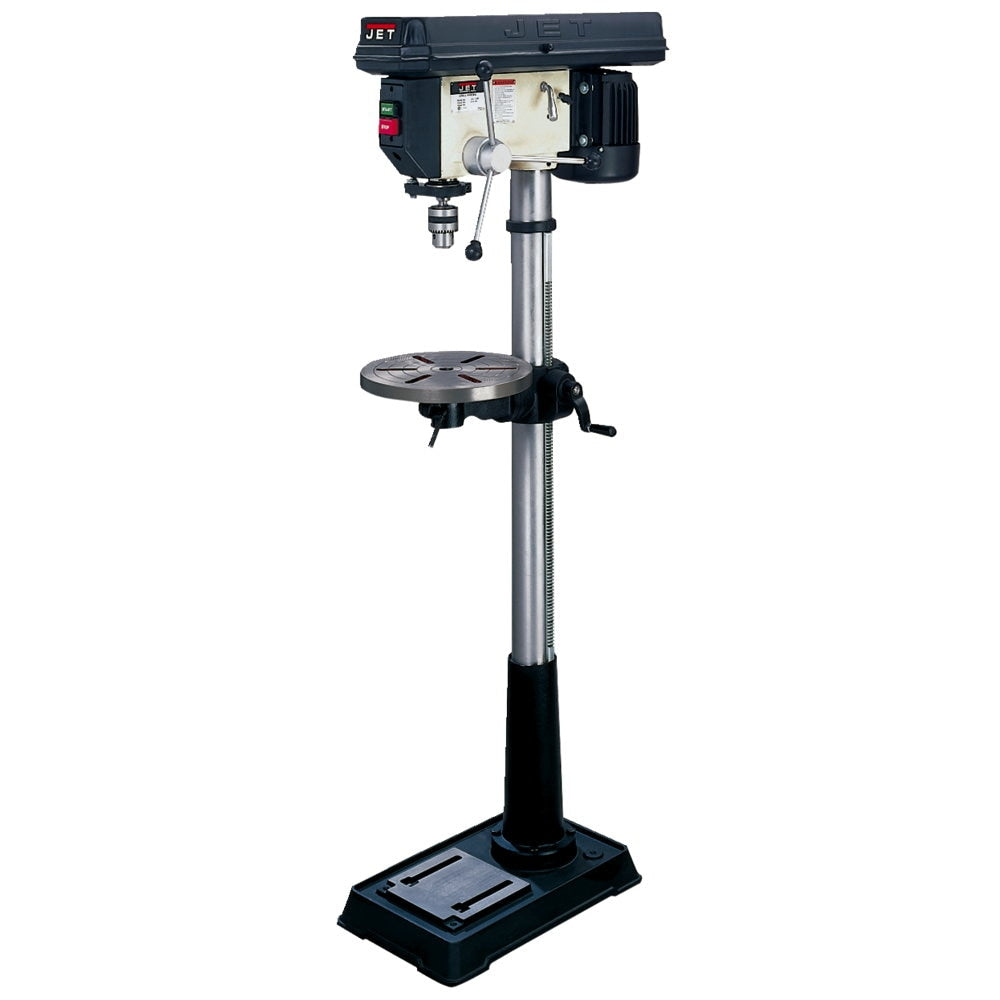

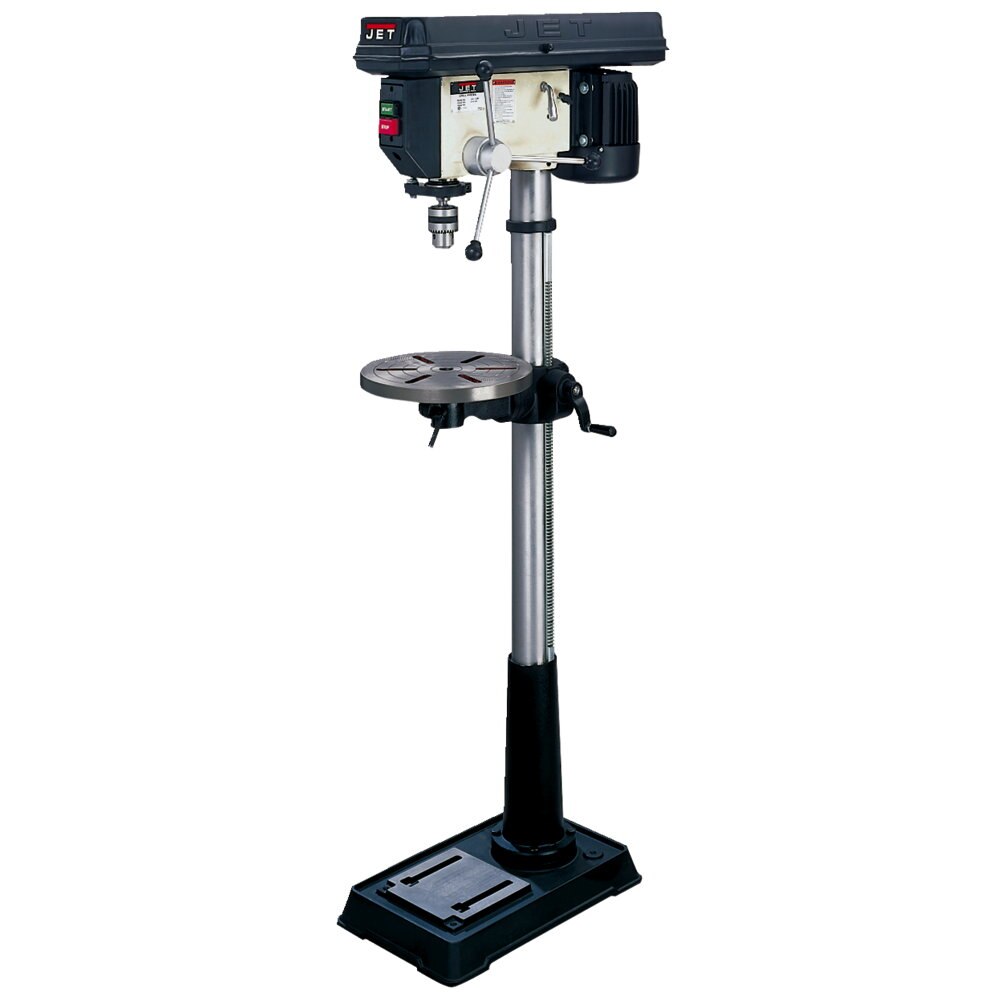

Jet JT9-354169 JDP-17MF 16-1/2" Floor Drill Press, 5/8" Capacity, 3/4HP, 16 Speed
$1,429.00
Unit price
/
Unavailable
Description
Description
Jet 354169 Description
The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
Jet 354169 Features
- 16 speeds lets you choose the best speed for the job
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- X pattern mounting grooves in table allow mounting a fence when table is in reverse position
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Spindle has high-quality ball bearing construction for long life
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in worklight (bulb not included) provides additional visibility of your work
Jet 354169 Specifications
| Motor Power (HP) | 3/4 |
| Number of Spindle Speeds | 16 |
| Motor Voltage (V) | 115/230 |
| Spindle Speed Range (RPM) | 200 - 3630 |
| Spindle Distance to Table (Max.) (In.) | 29-1/8 |
| Style (Type) | SV_1375591258781 |
| Table Tilt (Deg.) | 45 R & L |
| Column Diameter (In.) | 3-1/8 |
| Swing (In.) | 16-1/2 |
| Chuck Size (In.) | 5/8 |
| Base Size (In.) | 11-1/8 x 19-5/8 |
| Motor Amps | 9/4.5 |
| Table Size (L x W) (In.) | 13-3/4 |
| Spindle Travel (In.) | 4-3/8 |
| Motor Phase (PH) | 1 |
| Spindle Taper | MT2 |
