Jet | SKU:
JT9-354226

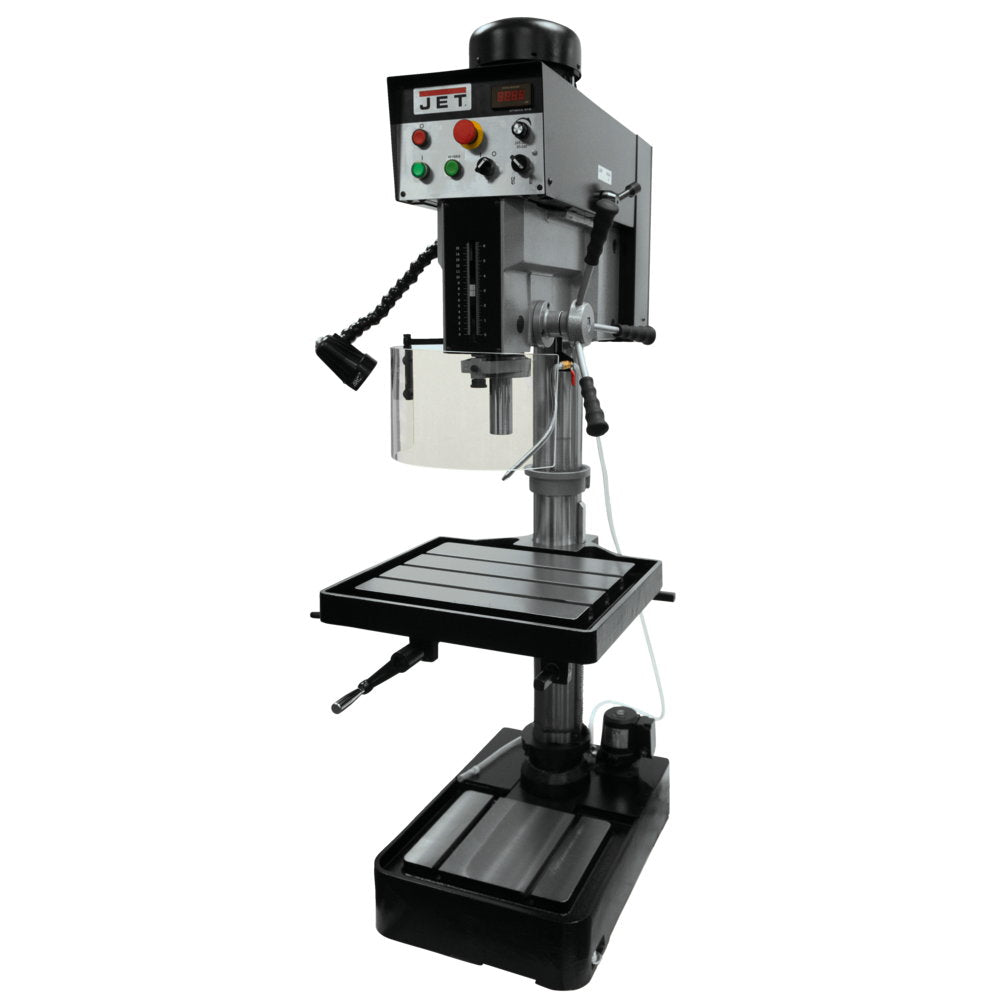

Jet JT9-354226 JDP-20EVST-460 20" EVS Tapping Drill Press, 460V
Free Shipping
$6,549.00
$8,071.43
Unit price
/
Unavailable
Description
Description
Jet 354226 Description
JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.
Jet 354226 Features
- Heavy-duty steel column for increased precision and rigidity
- Heavy Duty casted head for more accuracy and rigidity
- Large Precision Ground T-slot Production Table for easy set ups
- Latest AC Inverter Variable Speed Technology
- CSA Coolant System
- Spindle is supported by high quality ball bearings
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
- LED Machine Lamp
- Spindle Guard
- Emergency Stop
Jet 354226 Specifications
| Table Travel (In.) | 20 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Column Diameter (In.) | 4-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Base Dimensions (In.) | 27 x 19 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Spindle Travel (In.) | 6 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Drills to Center of Circle (in) | 20 |
| Work Table Weight Capacity (Lbs.) | 154 |
| Range of Spindle Speeds (RPM) | 65-540 /245- 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| T-Slot Centers (In.) | 7-7/16 |
| Tapping Capacity Cast Iron (In.) | 7/8 |
| Motor (HP) | 2HP, 460V, 3 Ph |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Tapping Capacity Mild Steel (In.) | 3/4 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x 79.52 |
| Spindle Taper (In. x TPI) | MT-3 |
| Style (Type) | SV_1375591258801 |
| T-Slots Number and Size (In.) | 3 & 5/8 |
| Inverter Type | M Type 460V 1/3Ph |
