Jet  |  SKU: JT9-354231  |  Barcode: 731325503913

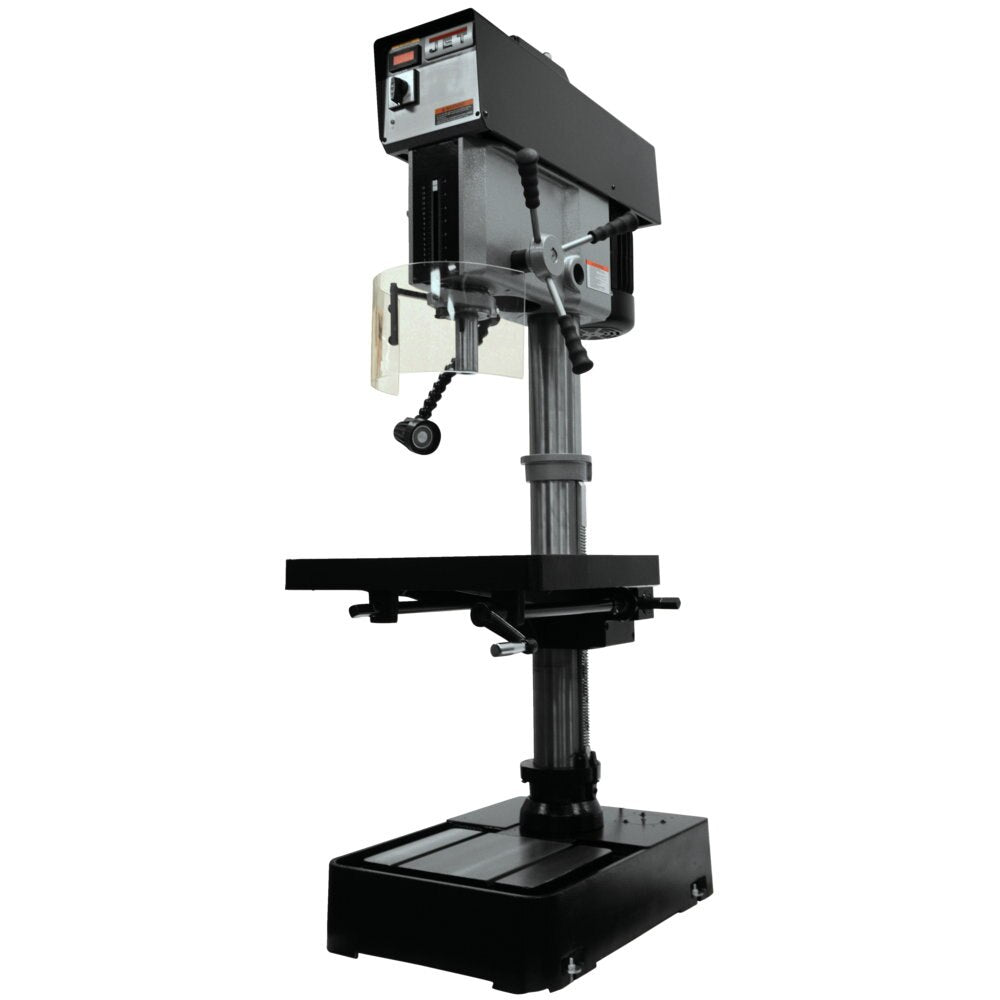

Jet JT9-354231 JDP-20VS-3 20" Variable Speed Drill Press, 3 PH

Free Shipping
$5,399.00 $6,510.00
 More payment options

Description

Jet 354231 Description

Solid design and construction deliver precision operation and control. JET 20" Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.

Jet 354231 Features

  • Steel Column
  • Heavy Duty Casted Iron Design
  • Head is massively constructed for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy set ups
  • Massive 3" Quill Diameter
  • CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Guard
  • Variable Spindle Speeds from 65 - 2,000 RPM's
  • Front Mounted LED Spindle RPM Readout

Jet 354231 Specifications

Table Travel (In.) 20
Table Size (L x W) (In.) 22x18-3/4
Column Diameter (In.) 4-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Base Dimensions (In.) 27 x 19
Drilling Capacity Mild Steel (In.) 1-3/8
Spindle Travel (In.) 6
Distance Column to Spindle (In.) 10 7/16
Drills to Center of Circle (in) 20
Work Table Weight Capacity (Lbs.) 154
Range of Spindle Speeds (RPM) 300 - 2,000
Spindle Distance to Base (In.) 44-1/2
T-Slot Centers (In.) 7-7/16
Tapping Capacity Cast Iron (In.) N/A
Motor (HP) 2HP, 230/ 460V,3ph ,4P
Base Slots Number & Size (In.) 2 & 5/8
Drilling Capacity Cast Iron (In.) 1-1/2
Tapping Capacity Mild Steel (In.) N/A
Number of Spindle Speeds Variable
Overall Dimensions (L x W x H) (In.) 38.18 x27.16 x79.52
Spindle Taper (In. x TPI) MT-3
Style (Type) SV_1375591258801
T-Slots Number and Size (In.) 3 & 5/8
