Description
Description

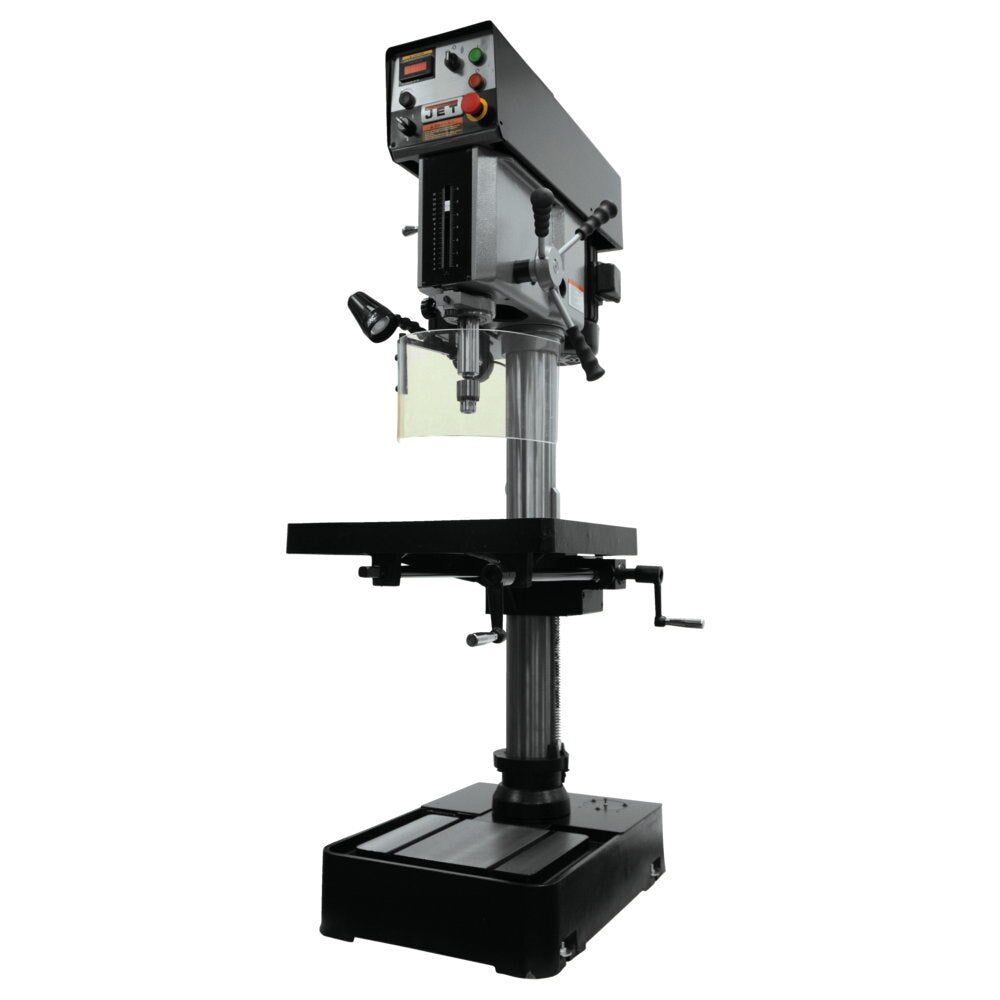

Jet 354240 Description
Solid design and construction deliver precision operation and control. JET 20" Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.
Jet 354240 Features
- Steel Column
- Heavy Duty Casted Iron Design
- Head is massively constructed for more accuracy and rigidity
- Large Precision Ground T-slot Production Table for easy set ups
- Massive 3" Quill Diameter
- CSA Coolant System
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
- LED Machine Lamp
- Spindle Guard
- Variable Spindle Speeds from 65 - 2,000 RPM's
Jet 354240 Specifications
| Table Travel (In.) | 20 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Column Diameter (In.) | 4-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Base Dimensions (In.) | 27 x 19 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Spindle Travel (In.) | 6 |
| Distance Column to Spindle (In.) | 10 7/16 |
| Drills to Center of Circle (in) | 20 |
| Work Table Weight Capacity (Lbs.) | 154 |
| Range of Spindle Speeds (RPM) | 150 - 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| T-Slot Centers (In.) | 7-7/16 |
| Tapping Capacity Cast Iron (In.) | 3/4 |
| Motor (HP) | 2HP, 230V,3ph |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Tapping Capacity Mild Steel (In.) | 5/8 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x 79.52 |
| Spindle Taper (In. x TPI) | MT-3 |
| Style (Type) | SV_1375591258801 |
| T-Slots Number and Size (In.) | 3 & 5/8 |
Toolup Part # :
389096
