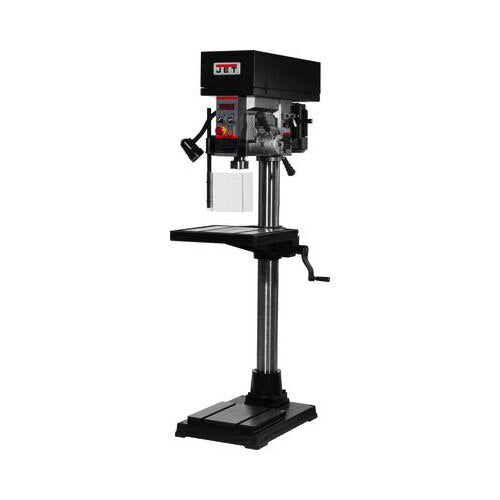

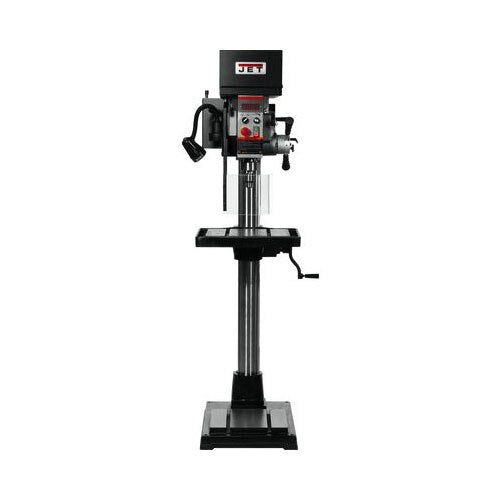

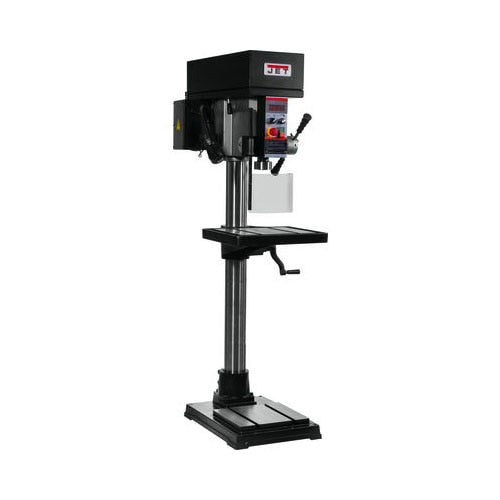

Jet JT9-354251 EVS Drill Press with Clutch Speed Change, 1-1/4" 115V 1PH
Free Shipping
$4,999.00
$6,168.57
Unit price
/
Unavailable
Description
Description
Jet 354251 Description
The 20'' JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.
Jet 354251 Includes
- (1) EVS Drill Press with Clutch Speed Change, 1-1/4" 115V 1PH
Jet 354251 Features
- Heavy casted column prevents failures prolonging the life of the machine
- Casted head for more accuracy and rigidity

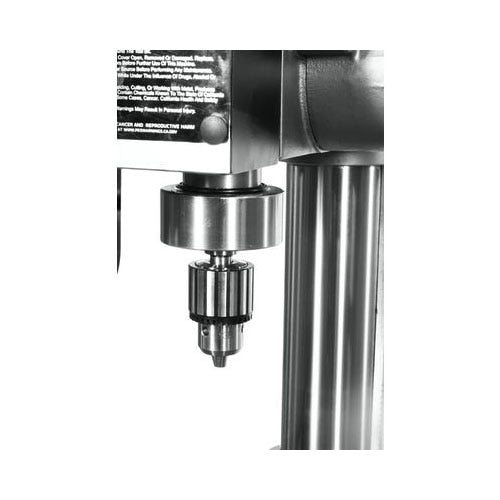

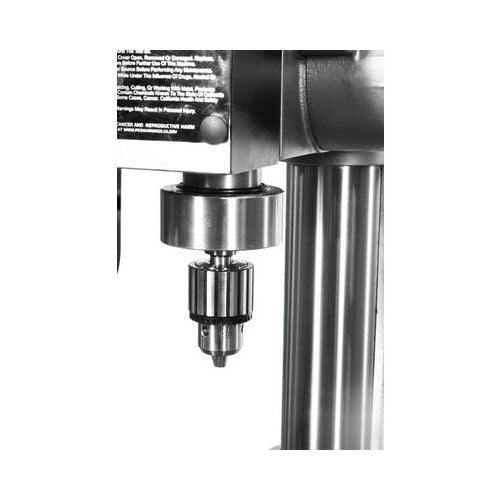

- Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support

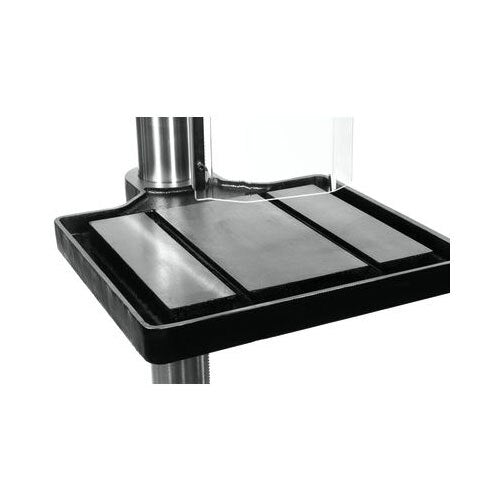

- Large precison ground t-slot production table
- CSA/US Certified

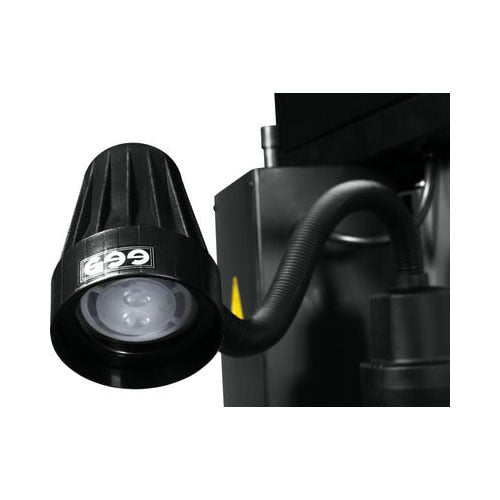

- LED machine lamp delivers extra light for more precise drilling

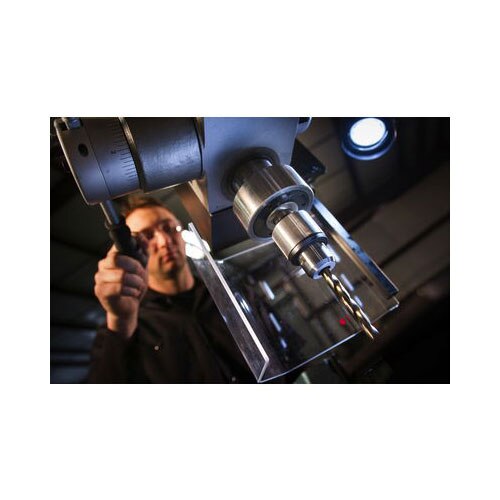

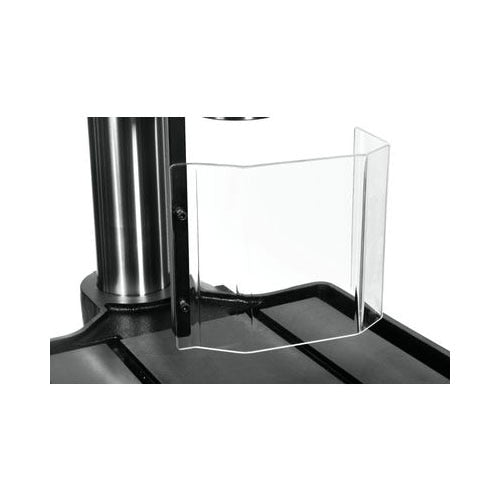

- Spindle guard protects user from flying debris

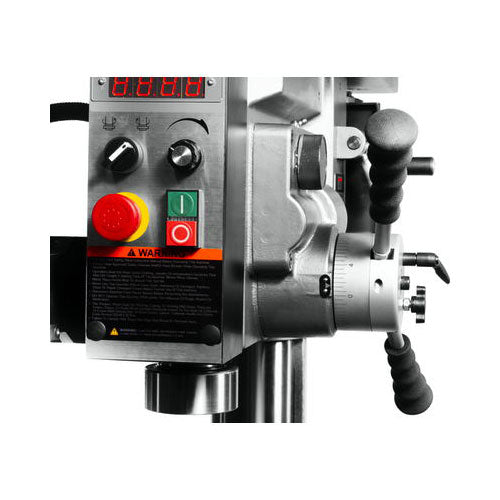

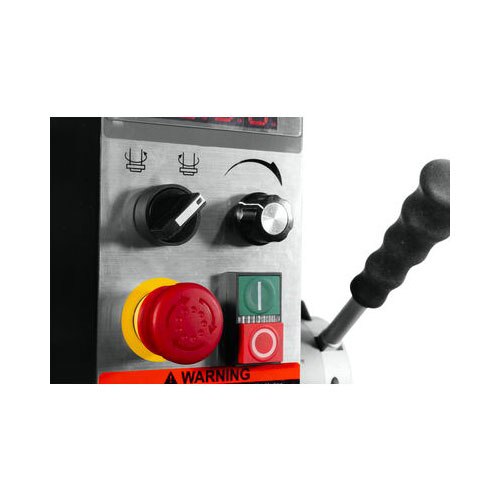

- Emergency stop allows for immediate shut off
- Various spindle speeds from 50-2000 RPM's
- Front mounted LED spindle RPM readout

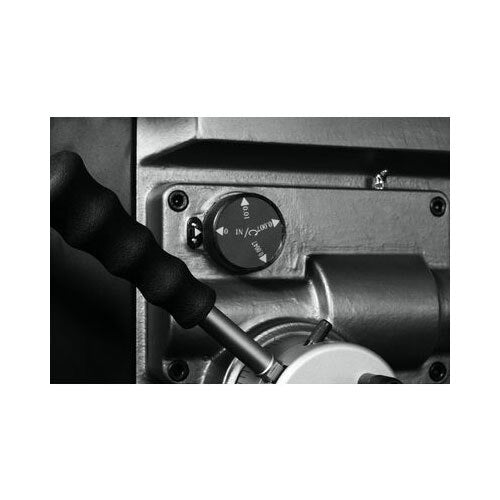

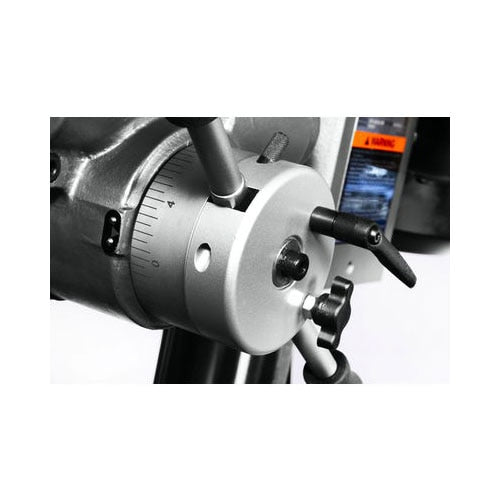

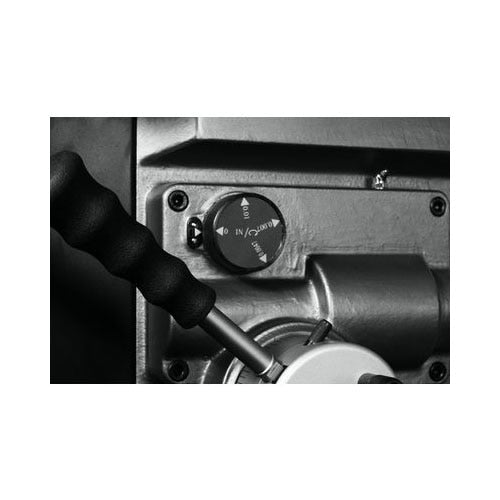

- 3-Speed power downfeed
- High torque at all speeds both forward and reverse
- Large hand grips designed with the user in mind

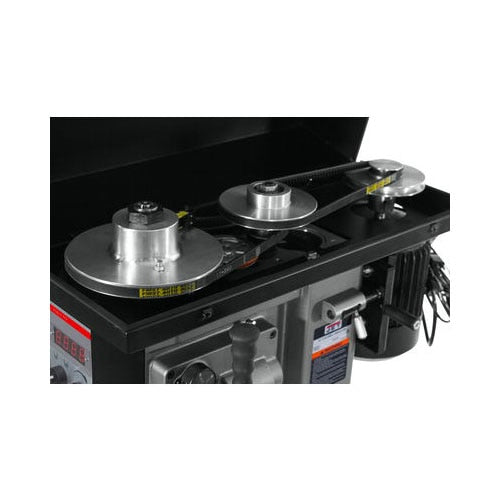

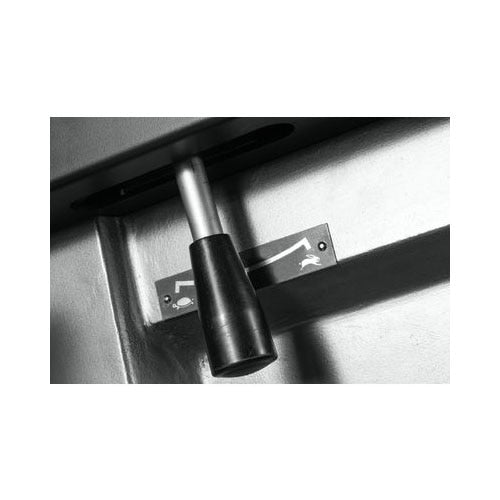

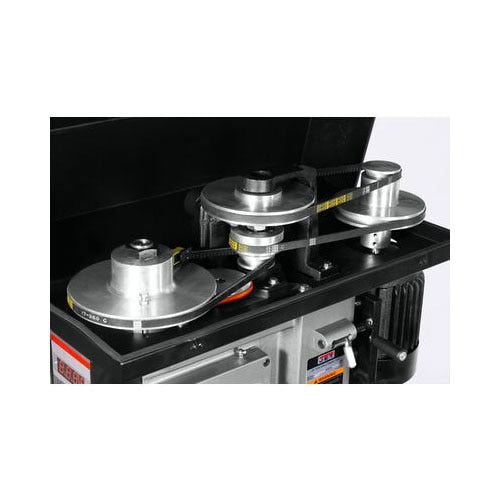

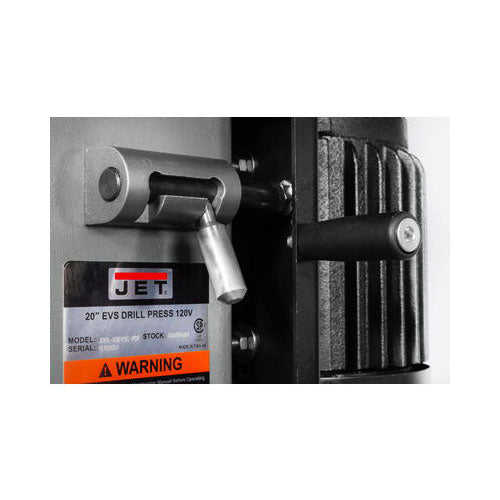

- Speed changes using a clutch system
- Forward and reverse switch for instant tapping mode
- Tapping function
- Spindle power down feed system
- Large torque inverter
Jet 354251 Specifications
| Drilling Capacity (in.) casting | 1-1/4 |
| Drilling Capacity (in.) Mild Steel | 1-1/8 |
| Tapping Capacity (in.) | 5/8 |
| Swing (in.) | 19-11/16 |
| Max Distance Spindle to Table (in.) | 32-15/64 |
| Maximum Distance Spindle To Base (in.) | 46-21/64 |
| Spindle Taper | MT-3 |
| Spindle Travel Manual (in.) | 5 |
| Spindle Auto Travel (in.) | 4-1/4 |
| Quill Diameter (in.) | 2-1/16 |
| Quill Down Feed Rate (number & RPM's) | No.3/ 0.005"/0.007"/0.010" |
| Column Diameter (in.) | 4 |
| Range of Spindle Speeds (RPM) | Lo |
| Table Size (in.) | 16-1/2 x 18-1/2 |
| Table T-slots, Number and Size (in.) | 2 Slots for 5/8 bolts |
| Base Dimensions (in.) | 17-17/64 x 25-1/2 |
| Base Work Table (in.) | 14-3/16 x 13 |
| Base T-slots, Number and Size (in.) | 2 Slots for 5/8 bolts |
| Inverter type / power source | 2HP/115V/1PH |
| Motor | 1-1/2HP 230V 3PH |
