Jet  |  SKU: JT9-354300  |  Barcode: 731325466737

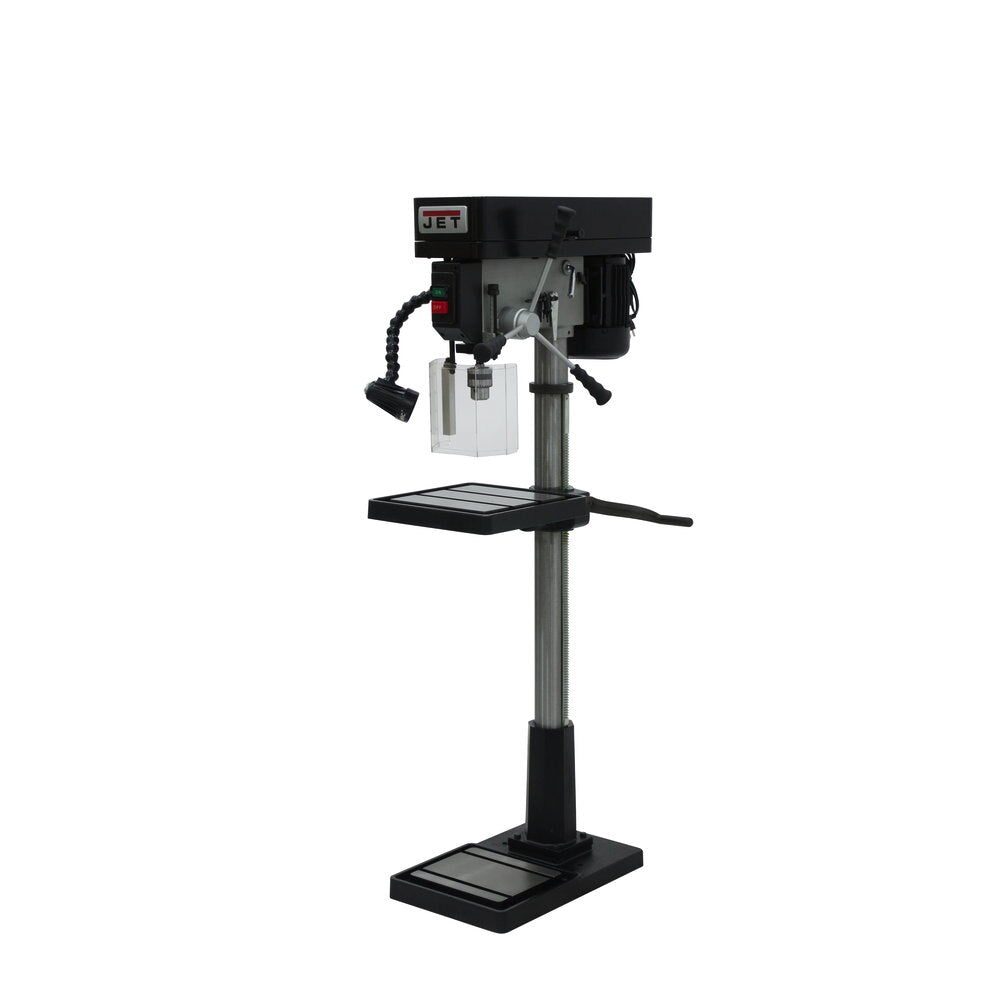

Jet JT9-354300 IDP-17, 17" Industrial Floor Model Drill Press

Free Shipping
$2,119.00 $2,610.00

Description

Jet 354300 Description

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Jet 354300 Features

  • For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
  • Spindle is supported by high quality ball bearings
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Large Hand Grips designed with the users comfort in mind
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • On/off switch located on front of the drill press head
  • Heavy Duty construction

Jet 354300 Specifications

Table Size (L x W) (In.) 14 x 14
Spindle Distance to Table (Max.) (In.) 30-1/2
Base Dimensions (In.) 21-3/4 x 13-3/4
Drilling Capacity Mild Steel (In.) 5/8
Spindle Travel (In.) 3-5/16
Base Work Table (In.) 16-15/16 x 10-13/16
Weight (Lbs.) 276
Distance Column to Spindle (In.) 8-3/8
Drills to Center of Circle (in) 17
Range of Spindle Speeds (RPM) 350 - 2,800
Spindle Distance to Base (In.) 50
T-Slot Centers (In.) 9/16
Motor (HP) 1 HP, 115/230V, 1Ph
Base Slots Number & Size (In.) 2 and 1/2
Drilling Capacity Cast Iron (In.) 3/4
Number of Spindle Speeds 12
Spindle Taper (In. x TPI) MT-2
Style (Type) Belt Drive
T-Slots Number and Size (In.) 2 and 1/2
Quill Diameter (In.) 2-1/16
Chuck Size (In.) 5/8
