Jet  |  SKU: JT9-354301  |  Barcode: 731325466744

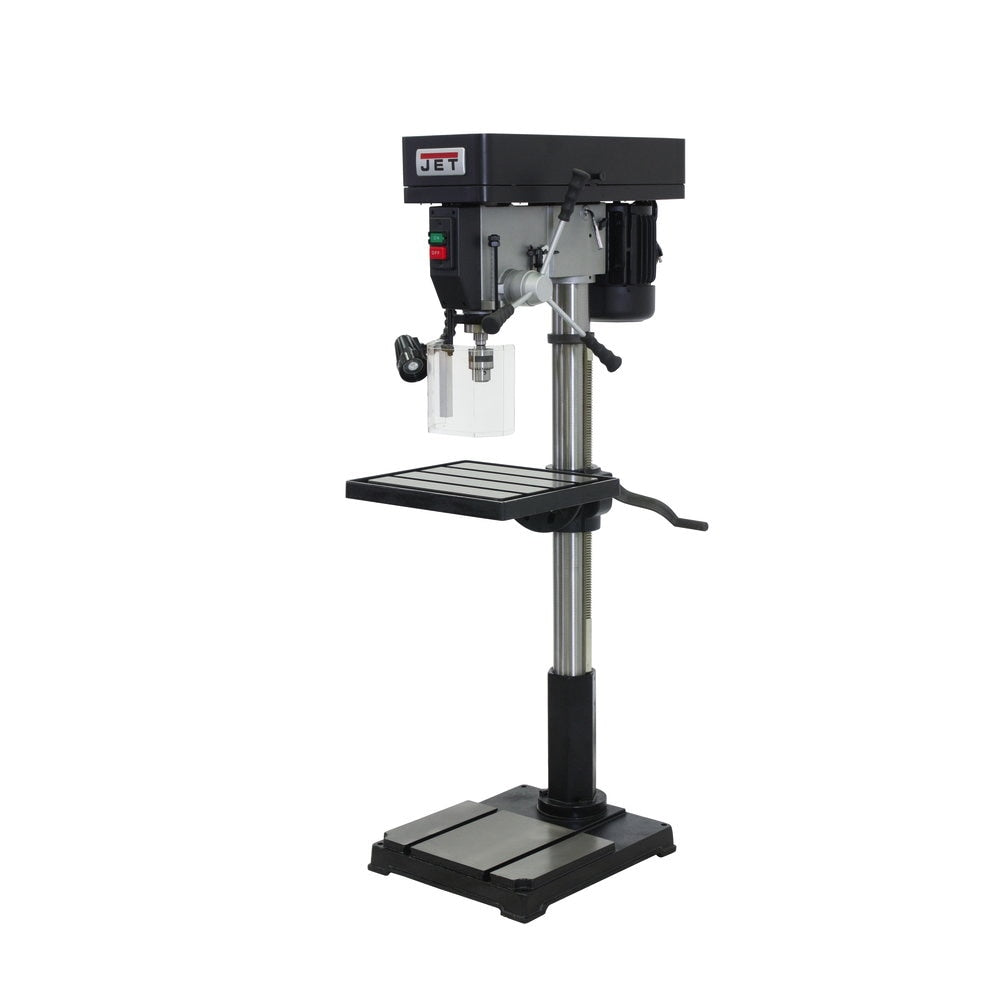

Jet JT9-354301 IDP-22, 22" Industrial Floor Model Drill Press

Free Shipping
$2,599.00 $3,181.43

Description

Jet 354301 Description

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Jet 354301 Features

  • For added Safety, the IDP-22, 22" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
  • Spindle is supported by high quality ball bearings
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Large Hand Grips designed with the users comfort in mind
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • On/off switch located on front of the drill press head
  • Heavy Duty construction

Jet 354301 Specifications

Table Size (L x W) (In.) 18-5/8 x 16-1/8
Column Diameter (In.) 3-5/8
Spindle Distance to Table (Max.) (In.) 28
Base Dimensions (In.) 22-5/8 x 19-7/16
Drilling Capacity Mild Steel (In.) 1
Spindle Travel (In.) 4-13/16
Base Work Table (In.) 21-1/2 x 18-5/16
Distance Column to Spindle (In.) 10-7/8
Drills to Center of Circle (in) 22
Work Table Weight Capacity (Lbs.) 176
Range of Spindle Speeds (RPM) 175 - 3,050
Spindle Distance to Base (In.) 48-1/2
T-Slot Centers (In.) 3/4
Motor (HP) 1-1/2HP, 115/230V, 1Ph
Base Slots Number & Size (In.) 2 and 5/8
Drilling Capacity Cast Iron (In.) 1-1/4
Tapping Capacity Mild Steel (In.) 1
Number of Spindle Speeds 12
Spindle Taper (In. x TPI) MT-3
Style (Type) Belt Drive
T-Slots Number and Size (In.) 2 and 5/8
Quill Diameter (In.) 2-5/8
Chuck Size (In.) 5/8
