Jet | SKU:
JT9-354400

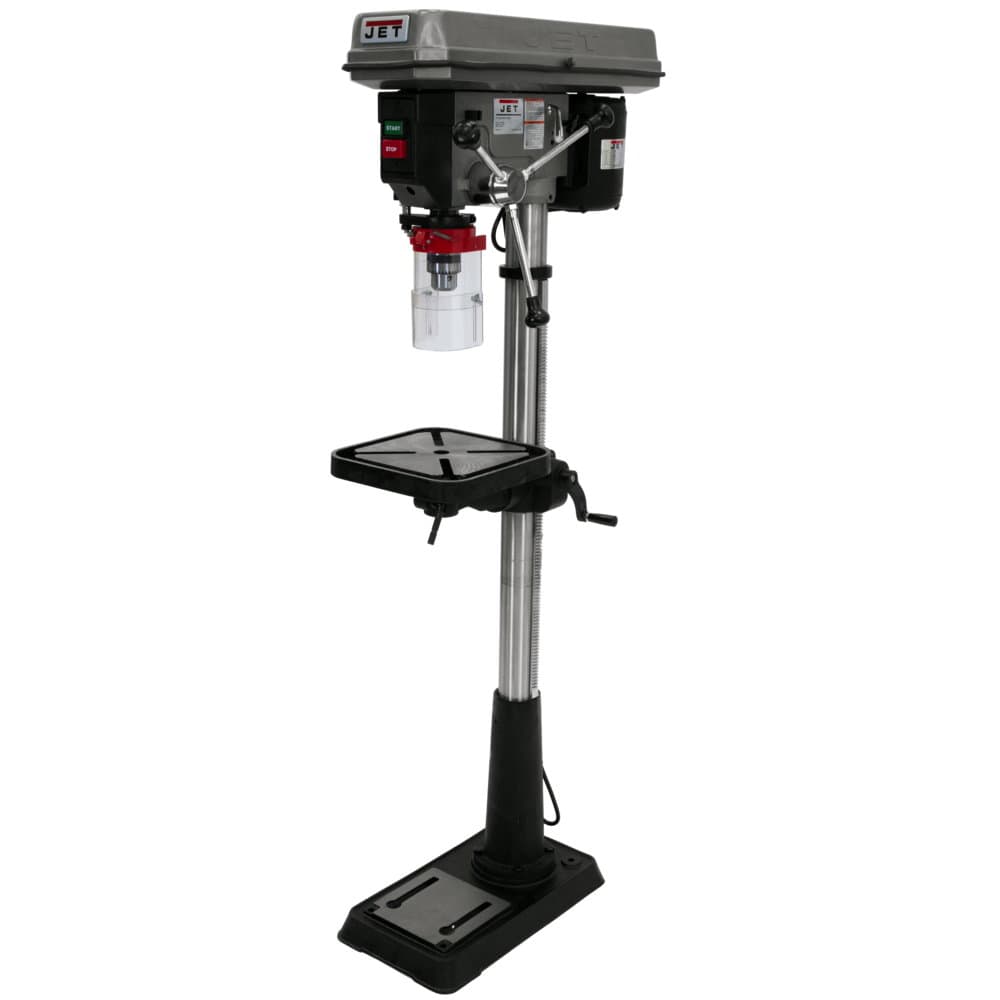

Jet JT9-354400 J-2500, 15" Floor Model Drill Press 115V 1PH
Free Shipping
$999.00
$1,207.14
Unit price
/
Unavailable
Description
Description
Jet 354400 Description
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
Jet 354400 Features
- Constructed to provide a solid base for drilling
- The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
- Cast Iron head
- Large ground steel column for maximum head and table support
- Large quill allows greater accuracy
- 3-1/8" stroke for deep hole applications
- Accurate depth stop for precice hole depths
- Table tilts 45°
- 5/8" drill chuck and arbor
- Telescoping safety spindle guard
Jet 354400 Specifications
| Table Travel (In.) | 24 |
| Table Size (L x W) (In.) | 11-1/2 x 11-1/2 |
| Column Diameter (In.) | 2-7/8 |
| Spindle Distance to Table (Max.) (In.) | 24 |
| Base Dimensions (In.) | 11 x 19-1/2 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Spindle Travel (In.) | 3-3/8 |
| Base Work Table (In.) | 7 x 7-1/2 |
| Weight (Lbs.) | 167 |
| Distance Column to Spindle (In.) | 7-1/2 |
| Drills to Center of Circle (in) | 15 |
| Work Table Weight Capacity (Lbs.) | 44 |
| Range of Spindle Speeds (RPM) | 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 |
| Spindle Distance to Base (In.) | 48 |
| T-Slot Centers (In.) | - |
| Motor (HP) | 3/4 HP, 115V, 1Ph |
| Base Slots Number & Size (In.) | - |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Number of Spindle Speeds | 16 |
