FEATURES:
• Constructed to provide a solid base for drilling
• 6-Spindle Speeds from 375 to 5,000 RPM
• Larger quill provides greater accuracy
• Large production table
• 3" column for maximum head support
• 1/2" drill chuck and arbor included
• Drill chuck guard
SPECIFICATIONS:
• Table Travel (In.): 16-3/4
• Table Size (L x W) (In.): 15 x 18
• Column Diameter (In.): 3
• Spindle Distance to Table (Max.) (In.): 25-3/4
• Base Dimensions (In.): 20-7/8 x 14-3/16 x 3-1/8
• Drilling Capacity Mild Steel (In.): 1/2
• Spindle Travel (In.): 6
• Base Work Table (In.): 12-1/8 x 11-13/16
• Weight (Lbs.): 394
• Distance Column to Spindle (In.): 15
• Drills to Center of Circle (in): 15
• Work Table Weight Capacity (Lbs.): 90
• Range of Spindle Speeds (RPM): 375, 625, 1,125, 1,950, 3,400, 5,000
• Spindle Distance to Base (In.): 44-1/2
• T-Slot Centers (In.): 5-5/16
• Motor (HP): 1 HP, 115/230V, 1 Ph
• Base Slots Number & Size (In.): 2 & 1/2
• Drilling Capacity Cast Iron (In.): 5/8
• Number of Spindle Speeds: 6

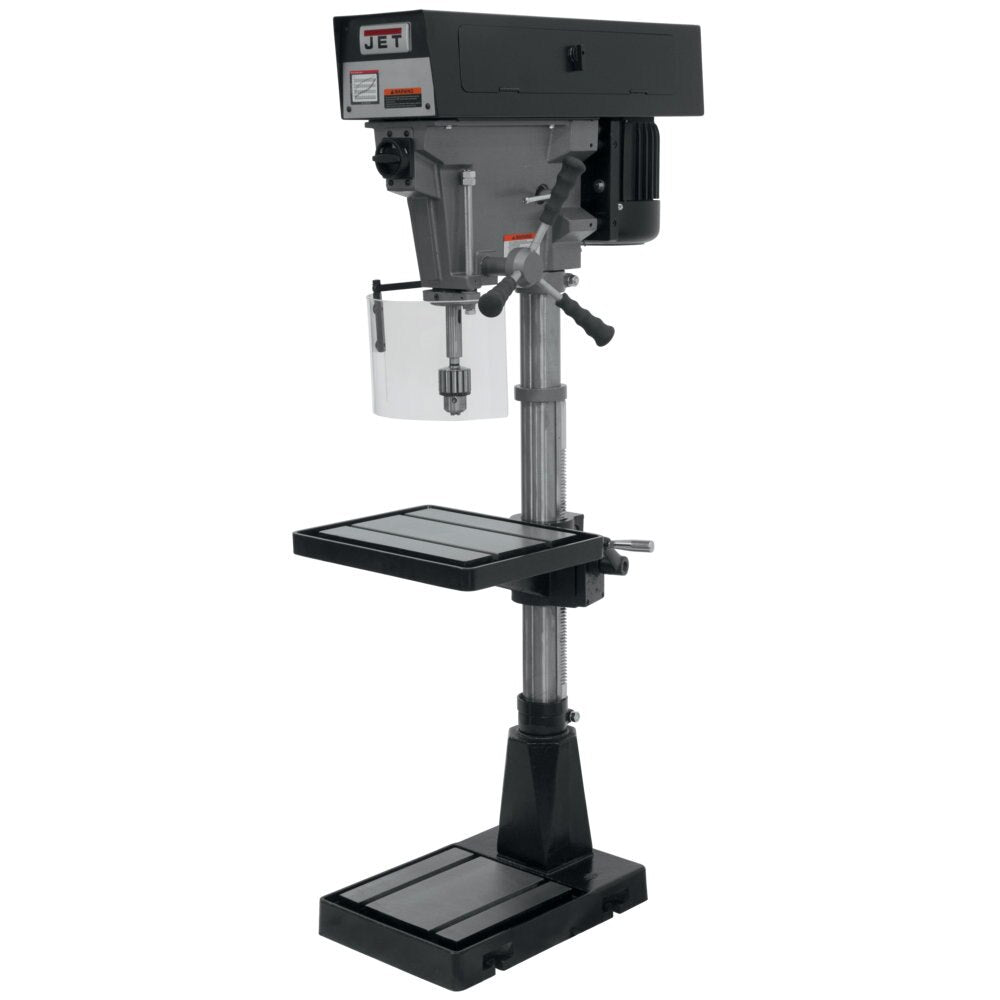

JET’s heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes
Toolup Part # :
243033
