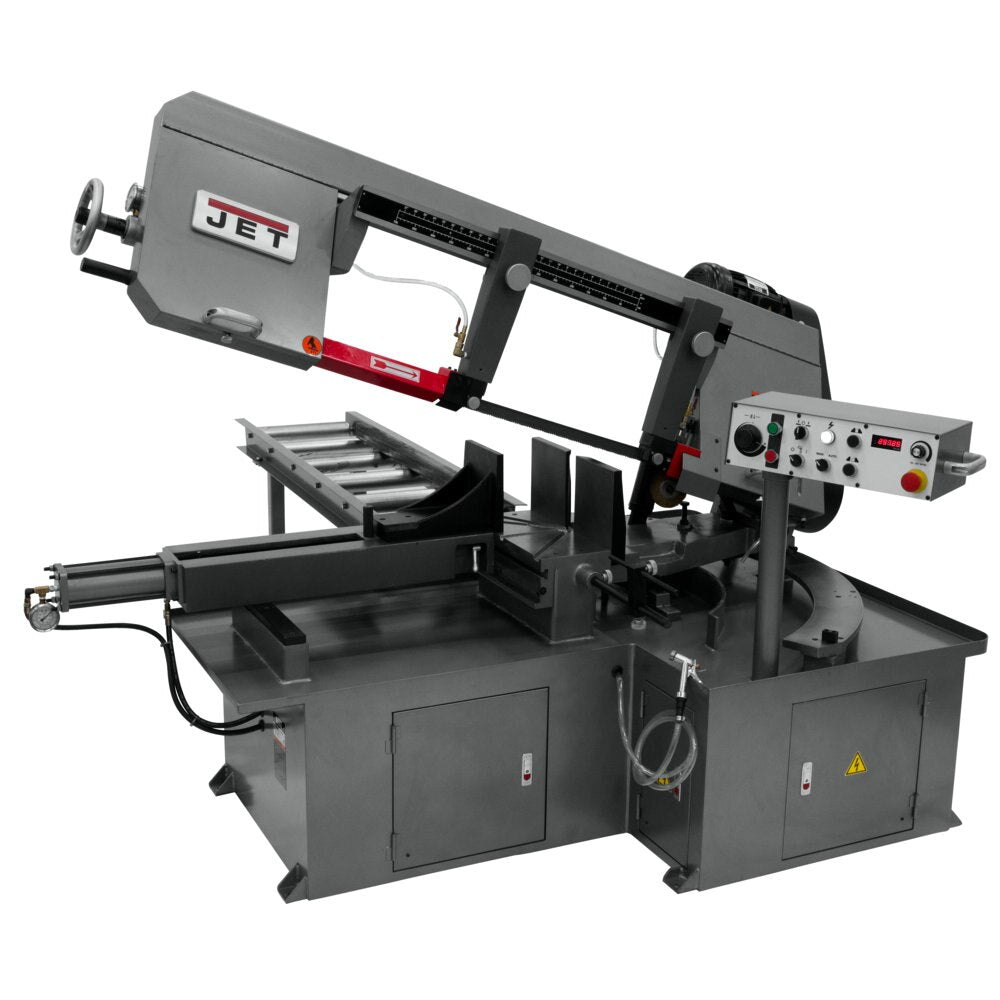

Jet JT9-413412 MBS-1323EVS-H 13 EVS Dual Miter Bandsaw, 3HP, 230V
Free Shipping
$19,899.00
$24,404.29
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Jet 413412 Description
JET Dual Mitering Horizontal bandsaws unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds.
Jet 413412 Features
- Heavy duty construction reduces vibration and deflection
- Built in, self propelled blade brush prevents chip build up in blade guides
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Magnetic starter for low voltage and lost phase protection
- Automatic blade breakage sensor detects accidental breakage and interrupts the power
- Power switch with safety key provents accidental start up
- CSA/CUS: Folloing strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
- Blade is fully guarded for Operator safety
- Automatic shut off switch stops the sawing process
- Equpped with Frequency Inverter which allows this EVS saw full range of blade speeds
Jet 413412 Specifications
| Bed Height (In.) | 27.75 |
| Blade Size (In.) | 1-1/4 x 0.043 x 172 |
| Blade Speed (SFPM) | Variable 50 - 297 |
| Blade Wheel Diameter (In.) | 16 |
| Cutting Capacity (W x D) (In.) | 12" x 32" |
| Drive | EVS |
| Motor (HP) | 3 HP |
| Rectangle at 45 Degrees (In.) | 8 x 16 |
| Rectangle at 90 Degrees (In.) | 12 x 23-1/2 |
| Round at 45 Degrees (In.) | 13 |
| Round at 90 Degrees (In.) | 13 |
| Weight (Lbs.) | 2090 |
| Overall Dimensions (L x W x H) (In.) | 88 x 55 x 51 |
| Prewired Voltage (V.) | 230V, 3Ph |
| Rectangle at 60 Degrees (In.) | 7 x 12 |
| Round at 60 Degrees (In.) | 11 |
