Jet | SKU:
JT9-413452

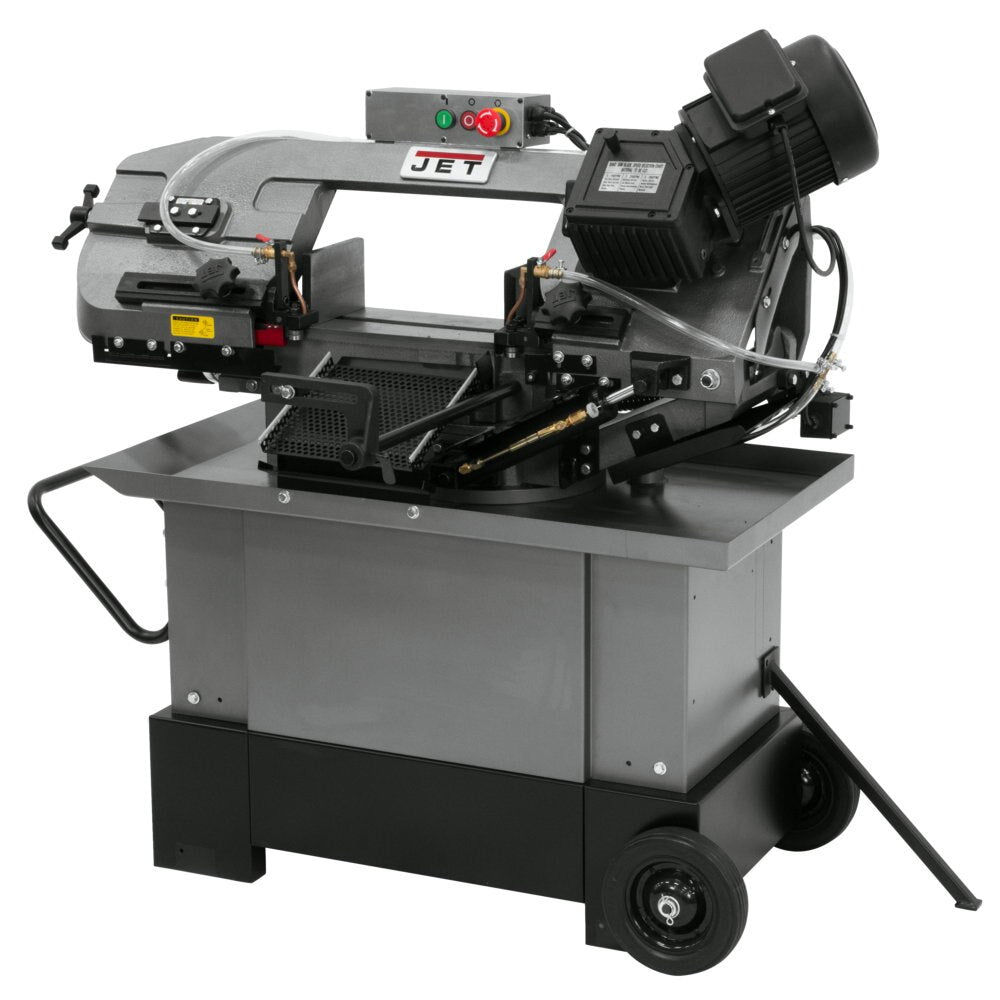

Jet JT9-413452 HVBS-710G 7" x 10.5" Horizontal Vertical Mitering Geared Head Bandsaw
Free Shipping
$3,149.00
$3,868.57
Unit price
/
Unavailable
Description
Description
Jet 413452 Description
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
Jet 413452 Features
- UL Listed Motor
- Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Fully adjustable hydraulic downfeed system
- Heavy-duty cast iron saw bow and bed
- Large 8" wheels and handle for easy movement
- Quick-positioning vise with fully adjustable jaws
- Built-in, self propelled blade brush extends blade life
- Vertical work table
- Coolant system
Jet 413452 Specifications
| Bed Height (In.) | 23 |
| Blade Length (In.) | 93-5/8 |
| Blade Size (In.) | 3/4 x .035 x 93 |
| Blade Speed (SFPM) | 145, 200, 245 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Cutting Capacity (W x D) (In.) | 7 x 10-1/2 |
| Drive | Geared Head |
| Head Movement (Deg.) | 45° |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Rectangle at 45 Degrees (In.) | 4-3/4 x 4 |
| Rectangle at 90 Degrees (In.) | 7 x 10-1/2 |
| Round at 45 Degrees (In.) | 4 |
| Round at 90 Degrees (In.) | 7 |
| Vise Swivels (Deg.) | 45° |
| Weight (Lbs.) | 401 |
| Overall Dimensions (L x W x H) (In.) | 51 x 22-1/2 x 41 |
| Prewired Voltage (V.) | 115 |
